Product Details:
|
| Battery Type: | Lipo Battery Pack | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 600mAh | Cycle Life: | 500times |
| Weight: | 14g | Application: | Beauty Device |
| High Light: | 700mAh Lipo Battery Pack,702540 Lipo Battery Pack,UN38.3 Lithium Polymer Ion Battery |
||

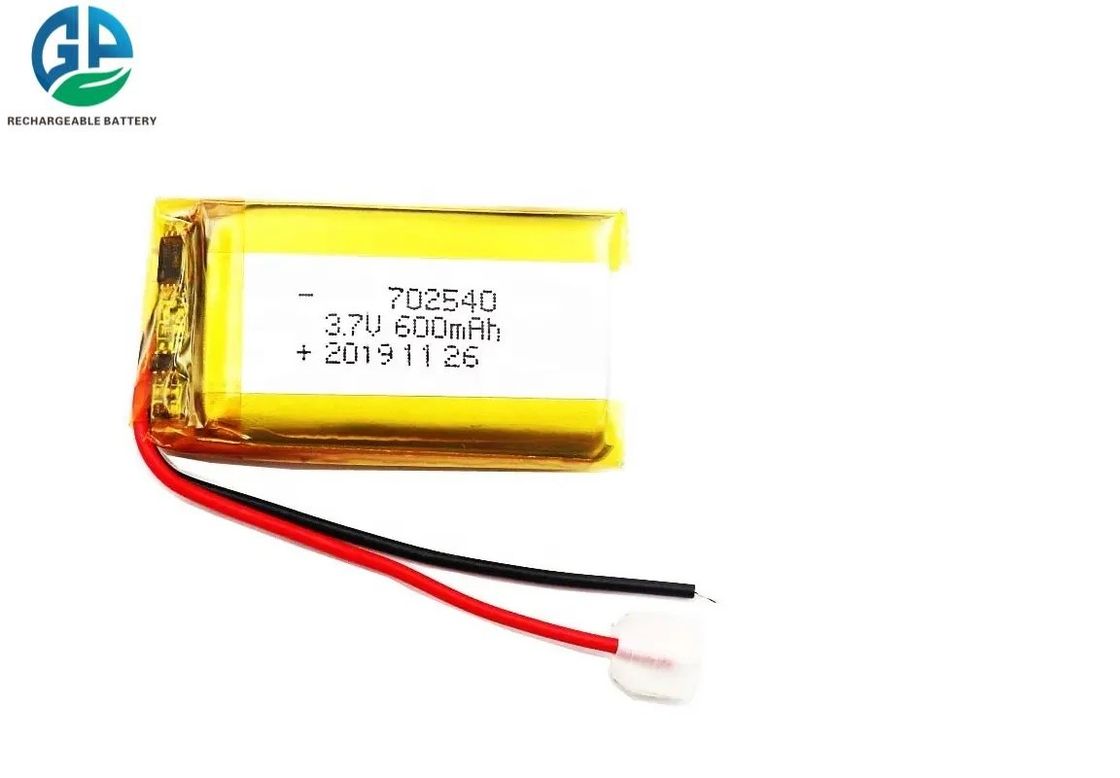

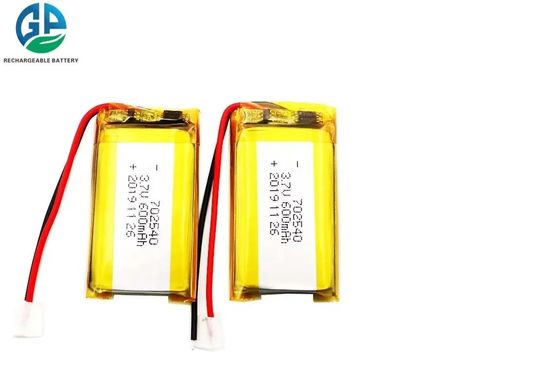

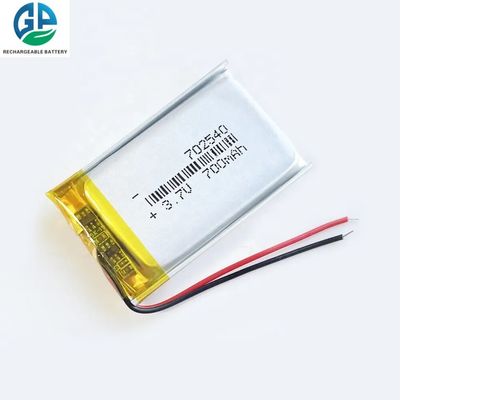

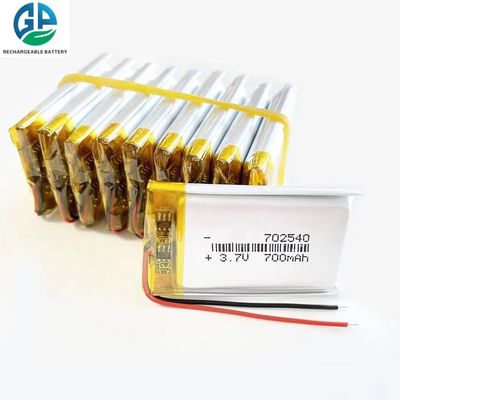

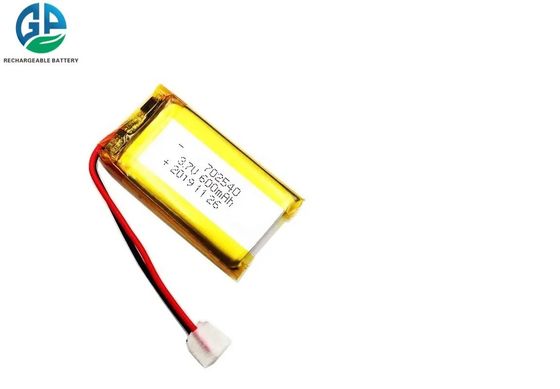

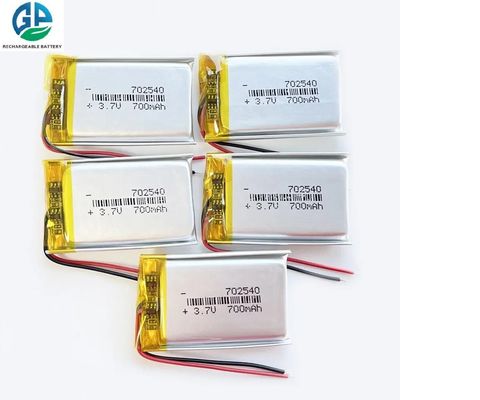

3.7V 600mah 700mah 702540 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 600mah Lithium Polymer 702540 Li-Polymer 700mah 3.7v lipo Battery
|
Item
|
Details
|
|
|
Energy
|
Nominal Voltage
|
3.7V
|
|
Rated Capacity
|
600mAh
|
|
|
Energy
|
2.22Wh
|
|
|
Cycle life
|
>550 cycles @0.2C 100%DOD
|
|
|
Battery type
|
Li-polymer
|
|
|
Internal Resistance
|
≤90mΩ
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C
|
|
Charge
|
Maximum charge current
|
1C
|
|
Charge voltage
|
4.2±0.2V
|
|
|
Charge cutoff Voltage
|
4.2V
|
|
|
Discharge
|
Standard discharge current
|
Constant current 0.2C
|
|
Maximum continuous discharge current
|
1C
|
|
|
Pulse discharge current
|
2C
|
|
|
Discharge cutoff voltage
|
3.0±0.2V
|
|
|
Temperature condition
|
Working temperature
|
-10~65℃
|
|
Charge temperature
|
0℃ to 45℃ @60±25% Relative Humidity
|
|
|
Discharge temperature
|
-10℃ to 65℃ @60±25% Relative Humidity
|
|
|
Storage temperature
|
Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25°C
|
|
|
Mechanical
|
Combination
|
1S1P
|
|
Max. Dimension
|
T7.0*W25.2*L40mm/PCM inclu.
|
|
|
Housing
|
PVC/Aluminum foil
|
|
|
N.W.
|
14g
|
|
|
PCM
|
Included
|
|
|
Cable,Connector
|
Included
|
Lithium Polymer battery pack KC 3.7V 600mAh 702540 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
