| Model Number: | LP702540 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

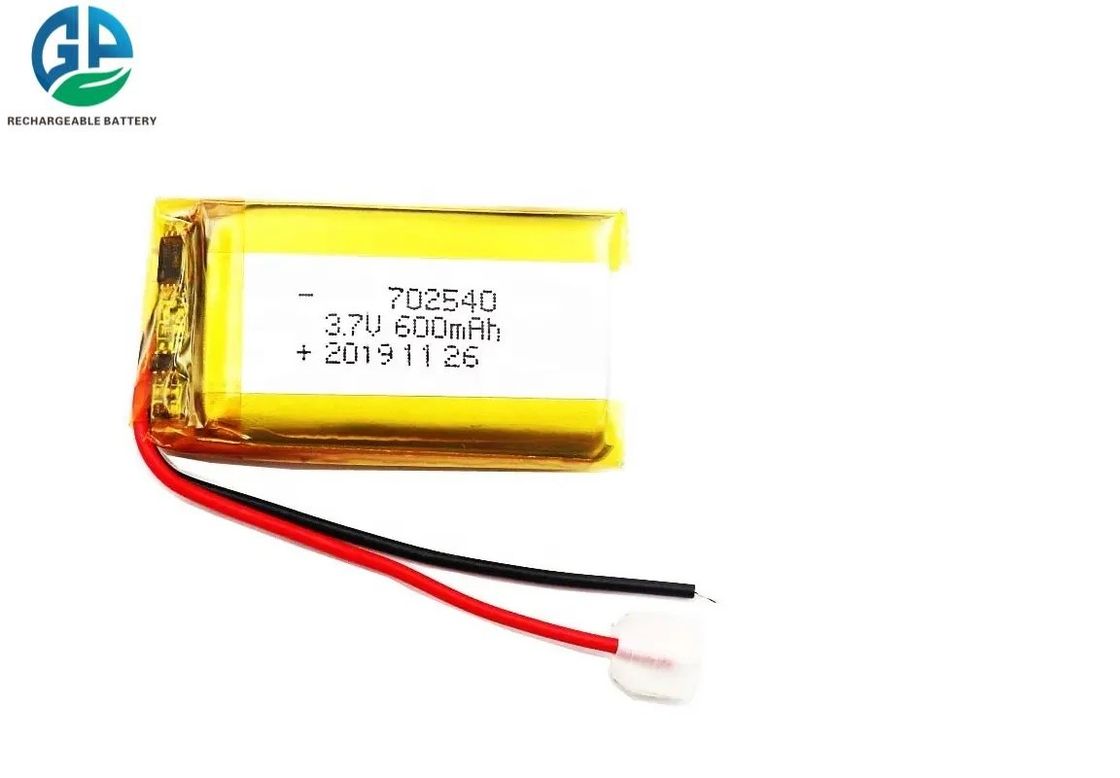

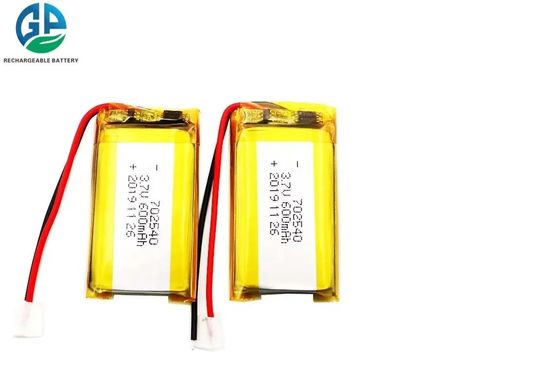

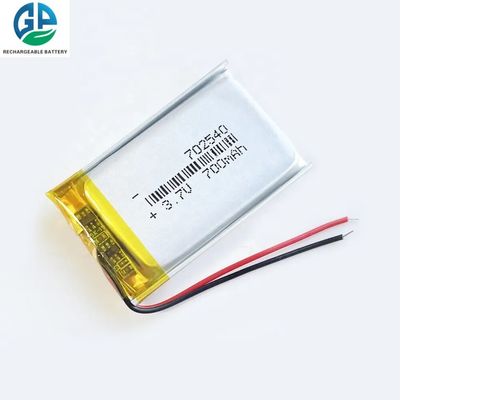

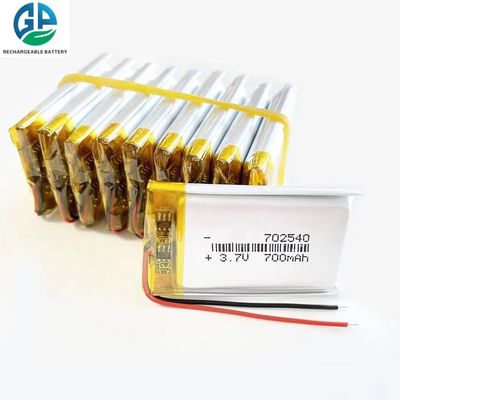

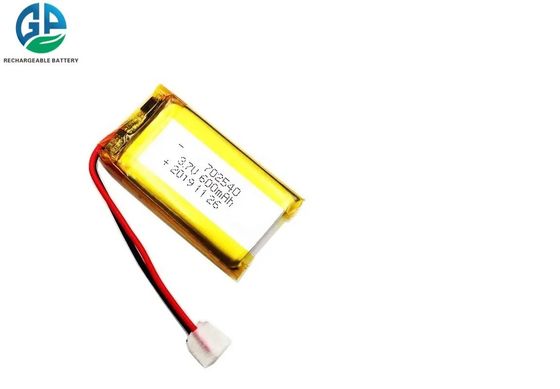

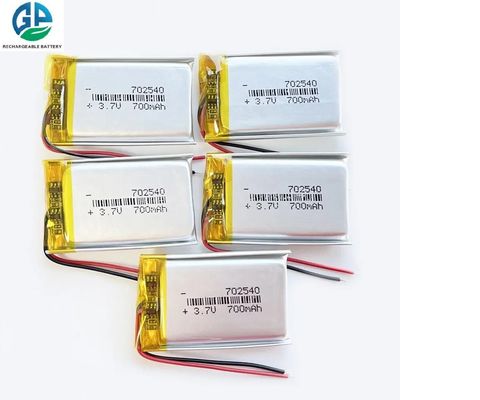

3.7V 600mah 700mah 702540 Lithium Polymer Battery Pack 500times Cycle Life
KC 3.7v 600mah Lithium Polymer 702540 Li-Polymer 700mah 3.7v lipo Battery
|
Item
|
Details
|
|
|
Energy
|
Nominal Voltage
|
3.7V
|
|
Rated Capacity
|
600mAh
|
|
|
Energy
|
2.22Wh
|
|
|
Cycle life
|
>550 cycles @0.2C 100%DOD
|
|
|
Battery type
|
Li-polymer
|
|
|
Internal Resistance
|
≤90mΩ
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C
|
|
Charge
|
Maximum charge current
|
1C
|
|
Charge voltage
|
4.2±0.2V
|
|
|
Charge cutoff Voltage
|
4.2V
|
|
|
Discharge
|
Standard discharge current
|
Constant current 0.2C
|
|
Maximum continuous discharge current
|
1C
|
|
|
Pulse discharge current
|
2C
|
|
|
Discharge cutoff voltage
|
3.0±0.2V
|
|
|
Temperature condition
|
Working temperature
|
-10~65℃
|
|
Charge temperature
|
0℃ to 45℃ @60±25% Relative Humidity
|
|
|
Discharge temperature
|
-10℃ to 65℃ @60±25% Relative Humidity
|
|
|
Storage temperature
|
Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25°C
|
|
|
Mechanical
|
Combination
|
1S1P
|
|
Max. Dimension
|
T7.0*W25.2*L40mm/PCM inclu.
|
|
|
Housing
|
PVC/Aluminum foil
|
|
|
N.W.
|
14g
|
|
|
PCM
|
Included
|
|
|
Cable,Connector
|
Included
|
Lithium Polymer battery pack KC 3.7V 600mAh 702540 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
