    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

    Product Details:

    Place of Origin: China
    Certification: UN38.3, MSDS, IEC62133, RoHS
    Model Number: ICR18650

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pieces
    Packaging Details: Bulk packing
    Delivery Time: within 15days
    Payment Terms: T/T
    Supply Ability: 100'000Pieces daily
    Get Best Price Contact Now

    Detail Information

    Battery Type: Lithium Ion Battery Pack Model: ICR18650
    Nominal Voltage: 3.7V Nominal Capacity: 2600mAh
    Cycle Life: 500times Discharging Rate: 1C
    Anode Material: Lithium Cobaltate Application: Fingerprint, Portable Fan, Emergency Light
    Lead Time: 10days Battery Warranty: 1year
    High Light:

    KC UL Icr 18650 2600mah 3.7 V

    ,

    icr18650 lithium cell 2600mah

    ,

    rechargeable 18650 battery 2600mah

    Product Description

    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

    KC, UL 18650 Lithium Battery 3.7V 2600mAh li-ion battery pack with JST connector
    Item Rating Note
    Capacity Typical 2600mAh

    Discharge:0.2CmA (520mA)

    cut off Voltage:3V for cell

    Minimum 2600mAh
    Nominal Voltage Average 7.4V

    Discharge:0.2CmA (520mA)

    cut off Voltage:3V for cell

    AC Impedance Resistance ≤180mΩ
    Discharge Cut-off Voltage 3.00V
    Charge Current 520mA Standard Charge
    Charge Voltage 4.2V
    Max. Charge Voltage 4.23V
    Charge Time Approx 6h Charge: 0.2CmA(520mA )
    Max. Charge Current 2600mA 1.0CmA
    Max. Discharge Current 2600mA
    Weight Approx 50.0g

    Operating

    Temperature

    Charge 0~+45°C
    Discharge -20~+60°C

    Storage

    Temperature

    less than 1 month -5~+35°C

    Recommended storage

    temperature: 20°C,at the

    shipment state

    less than 3 months -5~+35°C

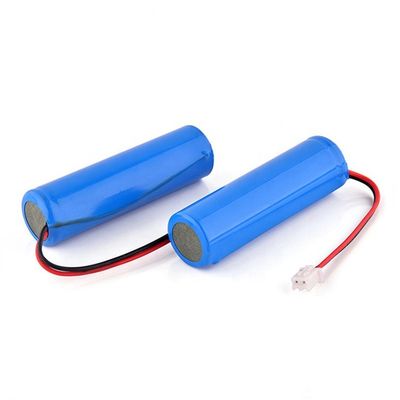

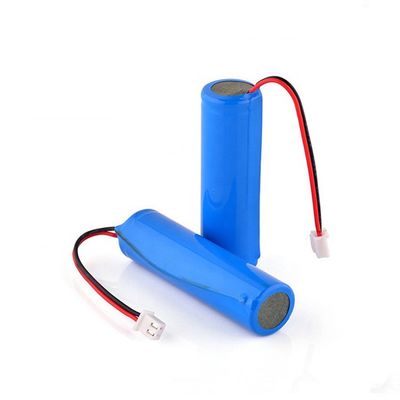

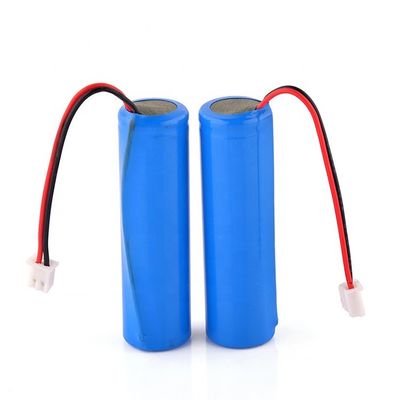

    Detailed images for lithium battery cells ICR18650 3.7V 2600mAh li ion battery



    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 0KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 1KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 2

    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 3



    3.7V lithium battery pack main applications:



    cash-machine,POS Terminal,monitor,barcode scanner,taxi-machine, portable voting device, lighting, fire alarm sensors,



    mineequipment, speaker, GPS tracekr, car video-registry, stand-alone telemechanic syster, GSM-modem ect.



    Customized lithium rechargeable battery packs



    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 4

    Cautions and Warnings for Using Lithium Battery

    1. Don’t immerse the battery in water.

    2. Don’t use and leave the battery near a heat source such as fire or heater.

    3. When charging, use a battery charger specifically for that purpose.

    4. Don’t reverse the positive and negative terminals.

    5. Don’t connect the battery to an electrical outlet directly.

    6. Don’t discard the battery in fire or heater.

    7. Don’t connect the positive and negative terminal directly with metal objects.

    8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

    9. Don’t strike, throw or trample the battery.

    10. Don’t pierce the battery with a nail or other sharp object.


    Other lithium ion cylindrical battery cell on sale:

    Lithium ion battery cells list
    Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
    ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
    ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
    ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
    ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
    ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
    ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
    ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
    ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
    ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
    ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
    ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
    ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
    ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45



    Why Choose us:



    Technology

    • All-weather applicability (-30~60℃)
    • Highly safe battery design technology with the newest electrolyte and separator technology applie
    • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

    R&D

    Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 5



    Quality Control



    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 6



    Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 7



    Factory Tour:

    Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



    We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



    and customized battery pack since 2001.

    KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 8
