LiFePO4 Battery Cell
>

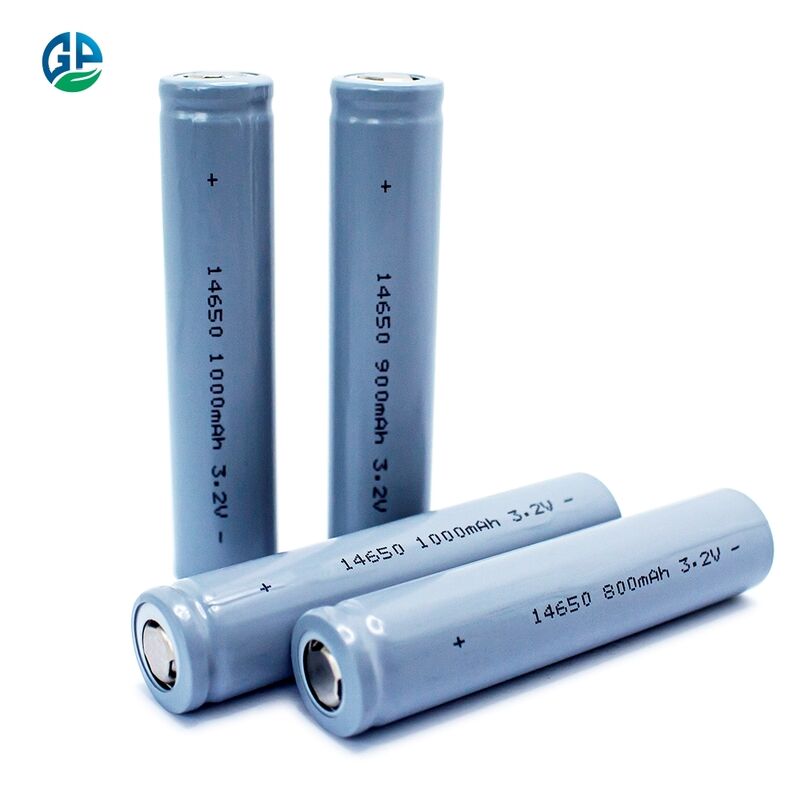

Rechargeable 3.2V 1000mAh LiFePO4 Battery Cell with 2000 Cycles for Solar and Digital Products

Rechargeable 3.2V 1000mAh LiFePO4 Battery Cell with 2000 Cycles for Solar and Digital Products

Model Number: IFR14500
MOQ: 2000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Size:
14*65mm (D*H)
Charging Voltage:
3.65V
Operating Temperature:
Charge: 0℃~45℃, Discharge: -20℃~60℃
Capacity:
1000mAh
Cycle Life:
2000times
Voltage:
3.2V
Supply Ability:
100'000Pieces daily
Highlight:

2000 Cycles LiFePO4 Battery Cell

,

3.2V LFP Battery

,

1000mAh Lithium Iron Phosphate Battery

Product Description
Rechargeable LFP Battery 14650 3.2V 1000mAh Lithium Iron Phosphate Battery Cell with 2000 Cycles for Solar and Digital Products
Product Overview

IFR14650 3.2V 1000mAh Rechargeable Cylindrical LiFePO4 Cell with 2000 Cycles LFP Solar Battery. High capacity Lithium Iron Phosphate (LiFePO4) battery IFR14650 3.2V 1000mAh with exceptional 2000+ cycle life performance.

Technical Specifications
Parameter Specification
Model IFR14650
Nominal Voltage 3.2V
Nominal Capacity 1000mAh
PCB (BMS) Customizable
Wires & Connector Customize
Charging End-off Voltage 3.65V
Max Charge/Discharge Current 0.2C-1.0C
Max Discharge Current (Few seconds) 3C
Operating Temperature Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature -20℃~60℃
Cycle Life ≥2000 cycles at 80% capacity
Product Details

The IFR14500 is a 3.2V 700mAh lithium iron phosphate (LiFePO4) rechargeable cell in the standard 14500 form factor (14mm × 50mm). Designed for battery pack assembly and compact electronic devices, this cell delivers stable performance with superior safety.

Key Features
  • Long Cycle Life: 2000+ cycles with ≥80% capacity retention
  • Safe LiFePO4 Chemistry: Inherent thermal stability with low thermal runaway risk
  • High Discharge Rate: Supports up to 1.8A (3C) continuous discharge
  • Compact Size: Standard 14500 dimensions (14.25mm × 50mm) - fits universal holders
  • Low Self-Discharge: <2% monthly loss for reliable storage
  • Wide Temperature Range: Operates from -20°C to 60°C for discharge
Applications
  • Solar garden lights and solar lamps
  • Battery pack assembly and manufacturing
  • LED flashlights and penlights
  • IoT sensors and smart home devices
  • Medical devices and wearable trackers
  • RC toys and model batteries
Safety Precautions
  • Keep battery away from children to prevent swallowing
  • Read all guides carefully before use, charging, or installation
  • Replace battery when performance becomes unavailable
  • Remove battery when its lifespan is complete
  • Store in low temperature and low humidity for long-term non-use
  • Clean battery connections with dry cloth before use if dirty
  • Use, charge, and store away from electrostatic environments
  • Operate within specified temperature ranges: Charge 0℃~45℃, Discharge -20℃~55℃
IFR14500 LiFePO4 battery cell technical diagram showing electrical specifications and performance characteristics IFR14500 battery cell dimensions and physical specifications diagram
Why Choose Gold Power Energy
Research & Development

Experienced R&D team with over 60 engineers and advanced equipment to support OEM and ODM requirements.

Gold Power Energy R&D laboratory with advanced testing equipment and engineering team
Certifications

Comprehensive quality assurance with international certifications:

CE RoHS BIS KC CB UL MSDS UN38.3 IEC61233
Gold Power Energy international certification badges including CE, RoHS, UL, and other quality standards
Factory Overview

Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China, providing various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.

Gold Power Energy modern factory facility with automated production lines and quality control systems
