KC Rechargeable 601040 200mAh 3.7V Lithium Polymer Battery for Digital Camera MSDS

Model Number:	602530
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC, UN38.3, MSDS, , RoHS

Battery Type:

Lipo Battery Pack

Voltage:

Capacity:

200mAh

Cycle Life:

500times

Application:

Digital Camera MSDS

Size:

6*10*42mm（MAX）

Weight:

Supply Ability:

50'000Pieces daily

Highlight:

rechargeable lithium polymer battery 200mAh

3.7V lithium polymer battery cell

wholesale rechargeable battery with warranty

Product Description

KC Rechargeable 601040 200mAh 3.7V Lithium Polymer Battery Cell

High-performance lithium polymer battery with comprehensive safety certifications and reliable power delivery for digital cameras and various applications.

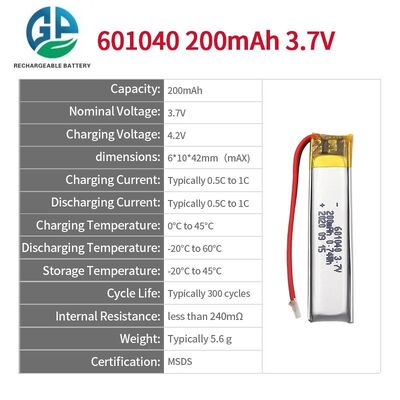

Technical Specifications

Mechanical Characteristics

Parameter	Specification
Cell	601040
PCM	Yes
NTC	No
Weight	Approx. 5.6g
Configuration	1S1P
Dimensions	61042mm (MAX)

Electrical Specification

Parameter	Specification
Capacity	200mAh
Nominal Voltage	3.7V
Energy	0.74Wh
Internal Impedance	< 240 mΩ
Max. Charge Voltage	4.2V
Discharge Cut Off	2.75V
Max. Charge Current	200mA
Max. Discharge Current	200mA
Standard Charge Current	100mA
Standard Discharge Current	100mA
Charge Temp. Range	0℃ to 45℃
Discharge Temp. Range	-20℃ to 60℃

Storage & Cycle Life

Storage Condition	Cycle Life Performance
1 year at -20℃ to +30℃	100 cycles ≥92%
3 months at -20℃ to +45℃	300 cycles ≥88%
1 month at -20℃ to +60℃	500 cycles ≥80%

Cell Protection Features

Protection Type	Specification
Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over Discharge Detection	2.5V ±50mV (115 to 175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec delay)
Short Protection	Yes

Certified Battery Models

Additional KC-certified lithium polymer battery models available for the Korean market:

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC

Many more models available with comprehensive certifications.

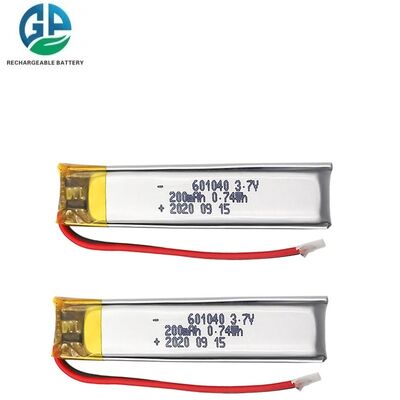

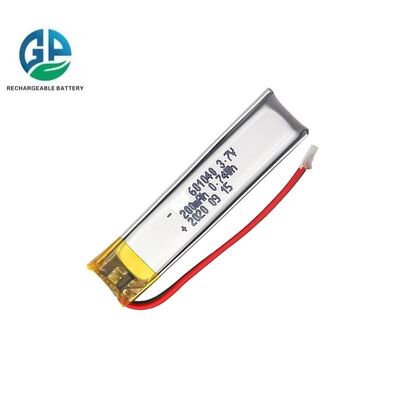

Product Images

Standard Packaging

Why Choose Our Batteries

Advanced Technology

All-weather applicability (-30℃ to 60℃)
Highly safe battery design with advanced electrolyte and separator technology
Full coverage of battery varieties including lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, and primary batteries

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment to support OEM and ODM requirements.

Quality Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

Manufacturing Excellence

Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China with extensive experience since 2001, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs.

Dimensions

5.0 * 12 * 30mm
