Lithium Polymer Battery Pack

KC Rechargeable 601040 200mAh 3.7V Factory Wholesale Rechargeable Lihitum Polymer Battery Cell

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

KC Rechargeable 601040 200mAh 3.7V Factory Wholesale Rechargeable Lihitum Polymer Battery Cell

Model Number:	602530
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC, UN38.3, MSDS, , RoHS

Battery Type:

Lipo Battery Pack

Voltage:

Capacity:

200mAh

Cycle Life:

500times

Application:

Digital Camera MSDS

Size:

6*10*42mm（MAX）

Weight:

Supply Ability:

50'000Pieces daily

Highlight:

rechargeable lithium polymer battery 200mAh

3.7V lithium polymer battery cell

wholesale rechargeable battery with warranty

Product Description

KC Rechargeable Li-Polymer Battery 601040 3.7V 200mAh 0.74Wh For

Digital Camera MSDS

High-performance lithium polymer battery with comprehensive safety certifications and reliable power delivery for various applications.

Technical Specifications

1. Mechanical Characteristics
Cell	601040	PCM	Yes
NTC	No	Weight	appr. 5.6g
Configuration	1S1P	Demension	61042mm(MAX)
2. Electrical Specification
Capacity	200mAh	Nominal Voltage	3.7V
Energy	0.74Wh	Internal Impedance	less than 240 mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	200mA	Max. Discharge Current	200mA
Standard Charge Current	100mA	Standard Discharge Current	100mA
Charge Temp. Range	0℃ to 45℃	Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%
3. Cell protection
Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)	Over discharge Detection	2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec. delay)	Short protection	Yes

Certified Lithium Polymer Batteries

Additional KC-certified lithium polymer battery models available for the Korean market:

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC

And many more models available with comprehensive certifications.

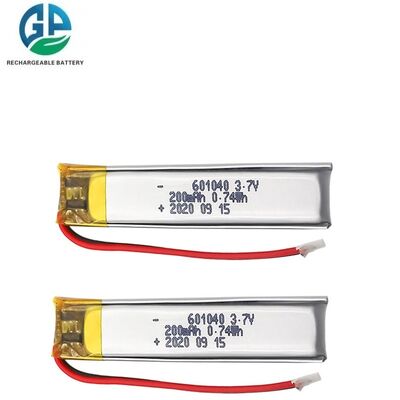

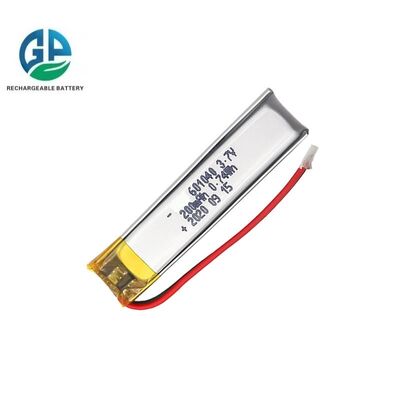

Product Images

Standard Packaging

Why Choose Our Batteries

Advanced Technology

All-weather applicability (-30~60℃)
Highly safe battery design with advanced electrolyte and separator technology
Full coverage of battery varieties including lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, and primary batteries

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment to support OEM and ODM requirements.

Quality Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

Manufacturing Excellence

Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China with extensive experience since 2001, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs.

Dimensions

5.0 * 12 * 30mm
