| Model Number: | 403030 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Model | 403030 |
| Type | Lithium Polymer Battery |
| Warranty | 12 Months |
| Standard Continuous Working Current | 0.2C |
| Maximum Continuous Discharge Current | 1.0C |
| Charging Voltage | 4.2V |

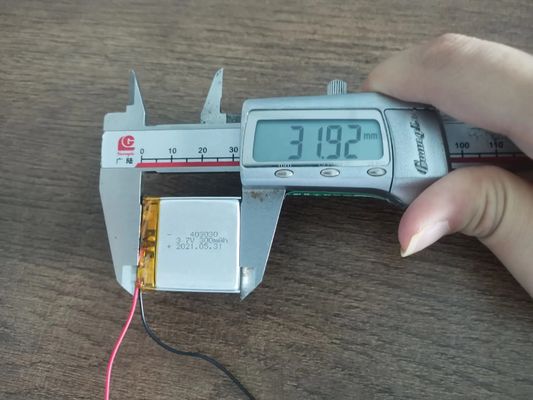

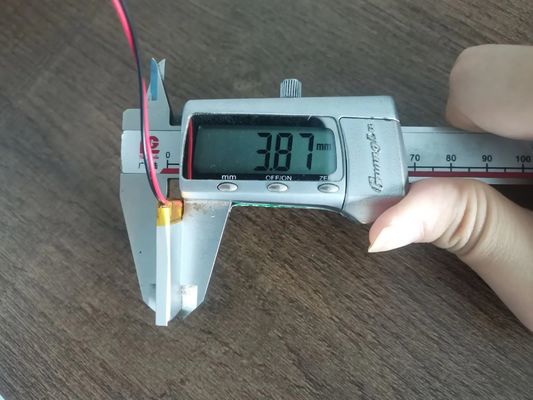

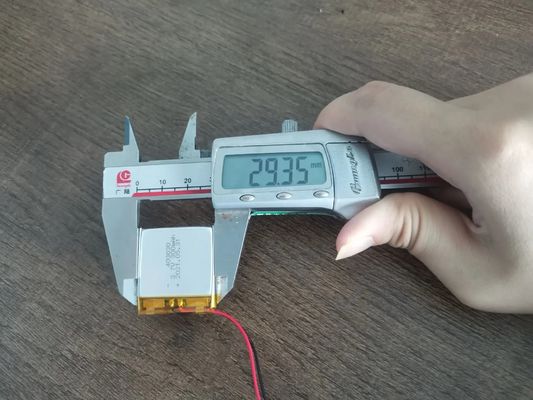

| Size | 4.0 * 30 * 30mm |
| PCB Protection (Optional) | Over-charge, over-discharge, short-circuit, over-temperature protection |
| Wires & Connector | Customized |
| Certification | KC/CE/UN38.3/MSDS |
| Test | Criterion | Method |
|---|---|---|
| Over Charge Test | No explosion, no fire | Discharge: 1C5A to 3.0V, Charge: 1C5A charge to 4.8V, maintain 8h |
| Short Circuit Test | No explosion, no fire, surface temperature <150℃ | After standard charging, short circuit positive and negative with ≤100mΩ resistance |
| Forced Discharge | No explosion, no fire | Discharge at 1C5A current for 2.5h |
| Free Fall Test | No leakage, no explosion, no fire | Fully charged battery fall from 1.0m height onto concrete ground twice |
