KC IEC62133 Approved 2500mAh 3.7V Lithium Polymer Battery Rechargeable Lipo Battery Pack

Model Number:	804258
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC, UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lipo Battery Pack

Voltage:

Capacity:

2500mAh

Cycle Life:

500times

Application:

Beauty Device

Size:

8*42*60mm With PCB(TxWxL)

Weight:

Appr.40g

Supply Ability:

50'000Pieces daily

Highlight:

Li Ion Lipo Battery

2500mAh Lithium Polymer Battery

3.7V Lithium Polymer Battery

Product Description

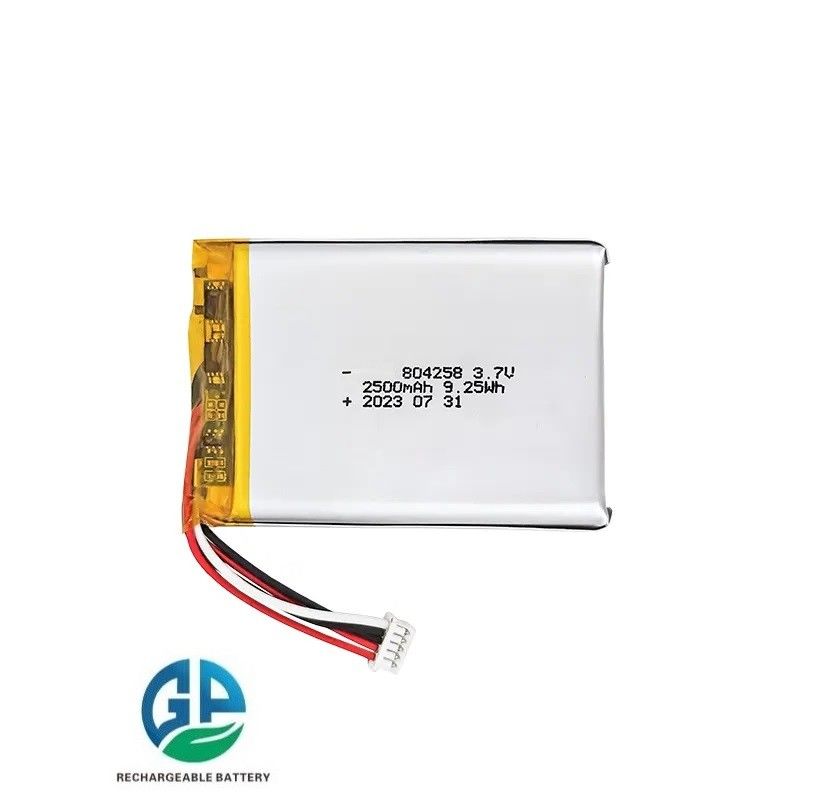

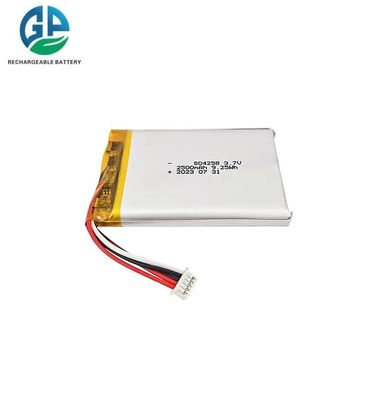

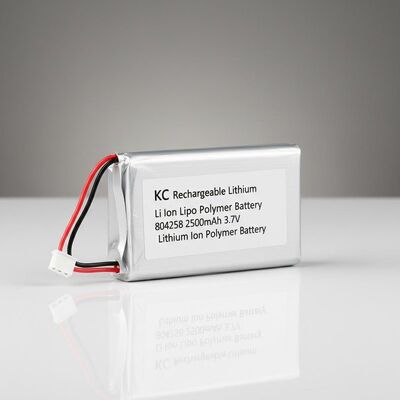

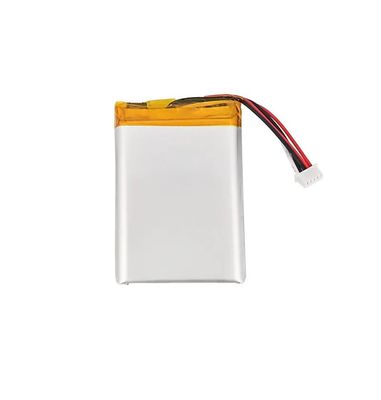

KC Rechargeable Lithium Polymer Battery 804258

Rechargeable 804258 2500mAh 3.7V Lipo Battery Pack with KC IEC62133 Certification

Safety Instructions

Do not submerge the battery in water
Do not mix fresh batteries with used batteries
Do not mix batteries with metal objects
Do not insert batteries with (+) and (-) terminals reversed
Do not disassemble, dispose in fire, heat or short circuit
Do not put the battery in a charger or equipment with wrong terminals connected

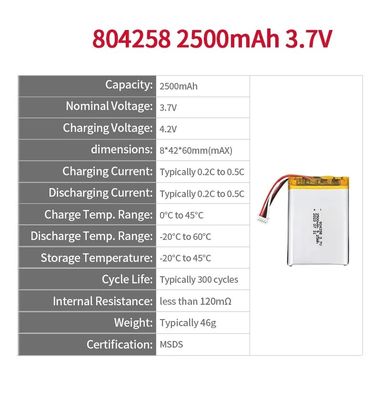

Technical Specifications

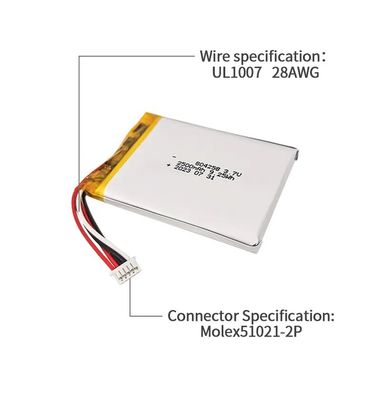

Mechanical Characteristics

Cell	804258	PCM	Yes
NTC	No	Weight	Approx. 40g
Configuration	1S1P

Electrical Specification

Capacity	2500mAh	Nominal Voltage	3.7V
Energy	9.25Wh	Internal Impedance	< 120mΩ
Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	1250mA	Max. Discharge Current	1250mA
Standard Charge Current	500mA	Standard Discharge Current	500mA
Charge Temp. Range	10°C to 45°C	Discharge Temp. Range	-20°C to 60°C

Storage & Cycle Life

Storage Temp. Range	1 year at -20℃ to +30℃	Cycle life	100 cycles ≥92%
	3 months at -20℃ to +45℃		300 cycles ≥88%
	1 month at -20℃ to +60℃		500 cycles ≥80%

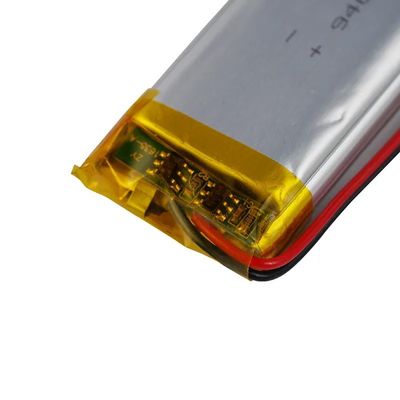

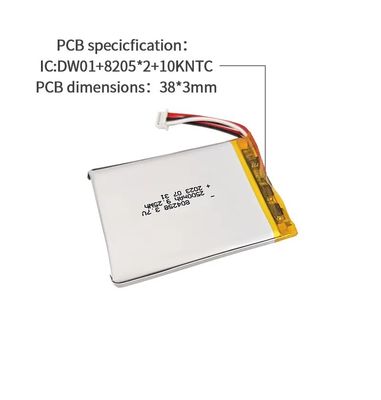

Cell Protection

Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Overdischarge Detection	2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec. delay)
Short protection	Yes

Certified Lithium Polymer Battery Models

Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacities ranging from 20mAh to 5000mAh to meet various application requirements.

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC
804459	3.7V	2400mAh	KC/CB/UN38.3/MSDS
8233125	3.7V	5500mAh	KC/UN38.3/MSDS

Battery Usage Cautions

Cell Connection

Direct soldering of wire leads or devices to the cell is strictly prohibited. Lead tabs with pre-soldered wiring shall be spot welded to the cells. Direct soldering may cause damage to components such as separator and insulator due to heat generation.

Prevention of Short Circuit

Adequate insulation layers between wiring and cells shall be used to maintain extra safety protection. The battery pack shall be structured to prevent internal short circuits, which may cause smoke or fire.

Prohibition of Disassembly

Never disassemble battery cells. Disassembling may generate internal short circuits, causing gassing, fire, explosion, or other problems. Electrolyte is harmful - if contact occurs with skin or eyes, flush immediately with fresh water and seek medical advice.

Fire Safety

Never incinerate or dispose of battery cells in fire. This may cause explosion and is extremely dangerous.

Liquid Immersion

Battery cells shall never be soaked with liquids such as water, seawater, soft drinks, juices, coffee, or other beverages.

Battery Replacement

Battery replacement shall be done only by either the cell supplier or device supplier and never by the user.

Damaged Battery Handling

Battery cells might be damaged during shipping by shock. If any abnormal features are found such as damage to the plastic envelope, deformation of the battery package, electrolyte smell, leakage, or other issues, the cells shall never be used. Batteries with electrolyte smell or leakage shall be placed away from fire to avoid fire or explosion.

Why Choose Gold Power Energy

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with advanced electrolyte and separator technology
Full coverage of battery variety: Lithium ion cylindrical battery, lithium polymer battery, LiFePO4 battery, solar energy storage battery packs, square aluminum shell, primary batteries, and more

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer batteries, Lithium ion batteries, LiFePO4 batteries, and customized battery packs since 2001.
