Lithium Polymer Battery Pack

804040 Size 3.7V 1500mAh Lithium Polymer Battery Pack High Discharge Rate Rechargeable Lipo Battery

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

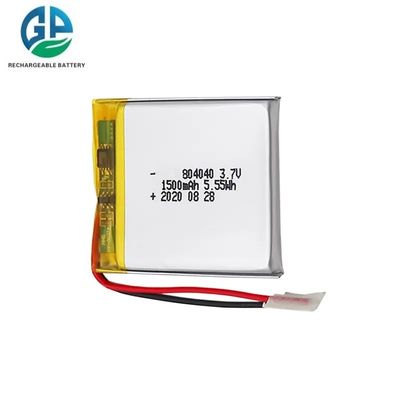

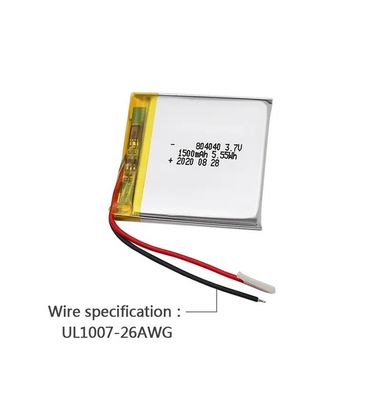

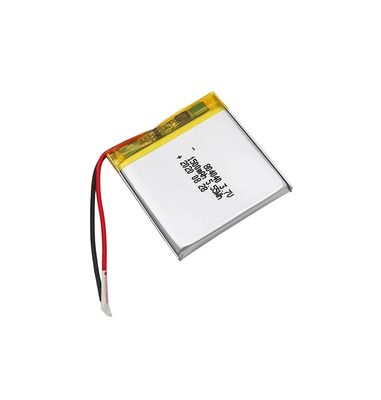

804040 Size 3.7V 1500mAh Lithium Polymer Battery Pack High Discharge Rate Rechargeable Lipo Battery

Model Number:	804040
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC,UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lipo Battery Pack

Voltage:

Capacity:

1500mAh

Cycle Life:

500times

Weight:

Application:

Smart Table Lamp.Beauty Device， Digital Products ，Medical Devices

SIZE:

8*40*42mm

Supply Ability:

50'000Pieces daily

Highlight:

High Discharge Rate Battery

3.7V Rechargeable Battery

Smart Table Lamp Battery

Product Description

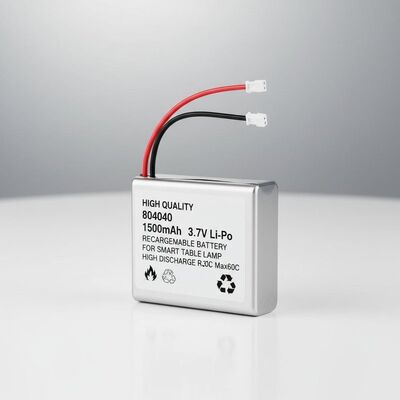

High Quality 804040 1500mAh 3.7V Rechargeable Battery

Designed for smart table lamps with high discharge rate capability (30C Max60C)

Product Overview

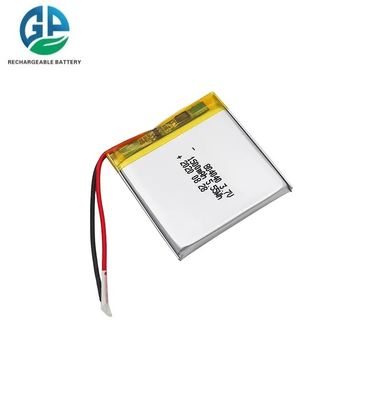

3.7V 1500mAh 804040 Lithium Polymer Battery Pack with 500 Cycle Life

This slim 804040 LiPo battery features a 3.7V nominal voltage and 1500mAh capacity, providing reliable power with extended cycle life.

Applications

Widely used in various electronic devices including:

GPS devices and POS terminals
Wireless headsets and communication tools
Heating blankets and smart phones
Learning tools and medical devices
Personal care scanners and vacuum packaging
Lamps, monitors, and portable DVD players
Smart home devices and tablet PCs
Pulse monitoring, mobile devices, power banks, and cameras

Technical Specifications

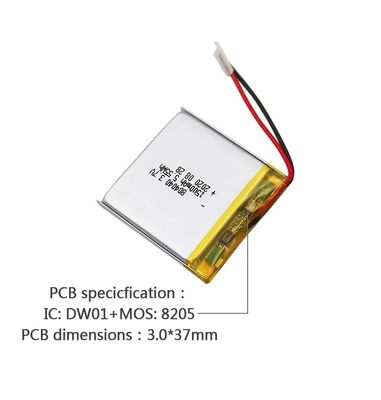

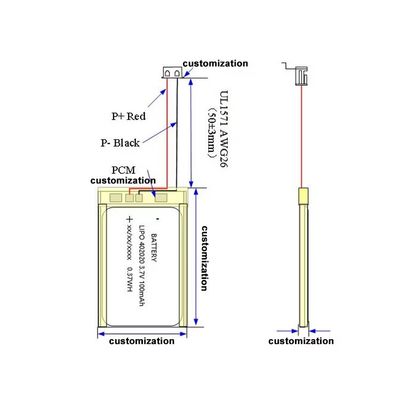

Mechanical Characteristics

Cell	804040
PCM	Yes
NTC	No
Weight	30g
Configuration	1S1P
Dimensions	84042mm (MAX)

Electrical Specification

Capacity	1500mAh
Nominal Voltage	3.7V
Energy	5.55Wh
Internal Impedance	< 180 mΩ
Max. Charge Voltage	4.2V
Discharge Cut Off	2.75V
Max. Charge Current	1500mA
Max. Discharge Current	1500mA
Standard Charge Current	300mA
Standard Discharge Current	300mA
Charge Temperature Range	0℃ to 45℃
Discharge Temperature Range	-20℃ to 60℃

Storage Temperature Range & Cycle Life

1 year at -20℃ to +30℃	100 cycles ≥92%
3 months at -20℃ to +45℃	300 cycles ≥88%
1 month at -20℃ to +60℃	500 cycles ≥80%

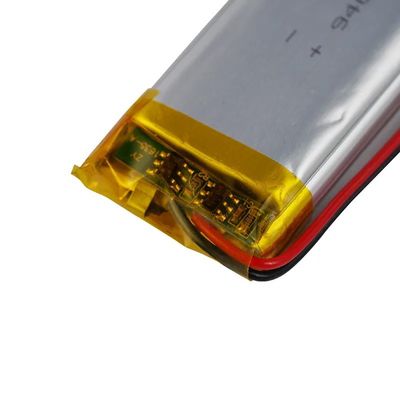

Cell Protection

Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over Discharge Detection	2.5V ±50mV (115 to 175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec delay)
Short Protection	Yes

Certified Lithium Polymer Batteries

Other KC-certified lithium polymer batteries available for Korean market:

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC

And many more models available with capacities ranging from 20mAh to 5000mAh

Advantages of Lithium Polymer Battery Packs

High Energy Density: Longer usage times between charges compared to traditional batteries
Lightweight and Thin: Ideal for portable electronic devices like smartphones and laptops
Flexible Design: Customizable shapes and sizes to fit different device requirements
Safety: Enhanced safety features with reduced risk of overheating or short-circuiting
Fast Charging: Support for fast charging technologies for reduced recharge times
Longer Lifespan: Withstands more charge-discharge cycles than traditional lithium-ion batteries
Eco-Friendly: Made from environmentally friendly materials and easier to recycle

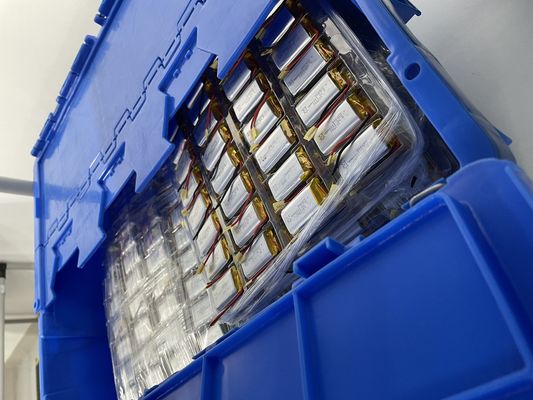

Standard Packaging

Why Choose Gold Power Energy

Advanced Technology

All-weather applicability (-30~60℃)
Highly safe battery design with newest electrolyte and separator technology
Full coverage of battery varieties including lithium ion cylindrical, polymer, LiFePO4, solar energy storage, and primary batteries

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements

Quality Control

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
