Rechargeable Battery Pack

KC IEC62133 Approved 3.7V 1100mAh 703048 Lipo Battery Pack Li-Polymer Rechargeable Battery

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

KC IEC62133 Approved 3.7V 1100mAh 703048 Lipo Battery Pack Li-Polymer Rechargeable Battery

Brand Name:	GPE
Model Number:	703048
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC, UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lipo Battery Pack

Voltage:

Capacity:

1100mAh

Cycle Life:

500times

Application:

Beauty Device

Size:

7.0*30*48mm(TxWxL)

Weight:

Supply Ability:

50'000Pieces daily

Highlight:

Low Temperature Lipo Battery

703048 Lipo Battery

3.7V 1100mAh Lipo Battery

Product Description

KC IEC62133 Approved 3.7V 1100mAh 703048 Low Temperature Li-Polymer Battery

Rechargeable 703048 3.7V 1100mAh Li-Polymer Battery Pack with KC IEC62133 certification for reliable performance in demanding applications.

Safety Precautions

Do not immerse the battery cell or battery pack in water
Do not use or leave the battery near heat sources such as fire or heaters
When charging, use a battery charger specifically designed for this purpose
Do not reverse the positive and negative terminals
Do not connect the battery directly to an electrical outlet
Do not discard the battery in fire or heaters
Do not connect the positive and negative terminals directly with metal objects
Do not transport or store the battery with metal objects
Do not strike, throw, or trample the battery
Do not directly solder the battery
Do not pierce the battery with nails or other sharp objects

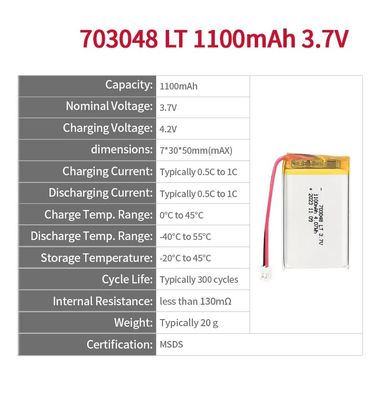

Technical Specifications

Mechanical Characteristics

Cell	LT703048	PCM	Yes
NTC	No	Weight	20g
Configuration	1S1P	Dimensions	73050mm (MAX)

Electrical Specification

Capacity	1100mAh	Nominal Voltage	3.7V
Energy	4.07Wh	Internal Impedance	< 130 mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	1100mA	Max. Discharge Current	1100mA
Standard Charge Current	220mA	Standard Discharge Current	220mA
Charge Temp. Range	0℃ to 45℃	Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃ / 3 months at -20℃ to +45℃ / 1 month at -20℃ to +60℃
Cycle Life	100 cycles ≥92% / 300 cycles ≥88% / 500 cycles ≥80%

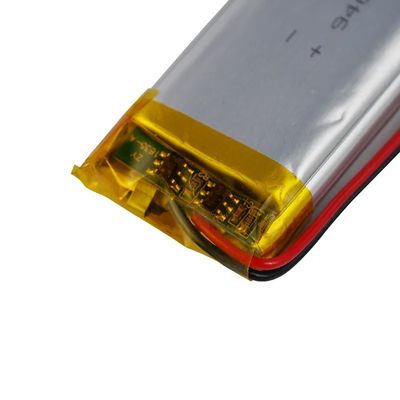

Cell Protection

Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over Discharge Detection	2.5V ±50mV (115 to 175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec delay)
Short Protection	Yes

Applications

GPS, POS Terminal, Wireless Headset, Communication Tools, Heating Blanket, Smart Phone, Learning Tools, Medical Devices, Personal Care Scanner, Vacuum Packaging, Lamps, Monitors, Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Mobile Devices, Power Banks, Cameras

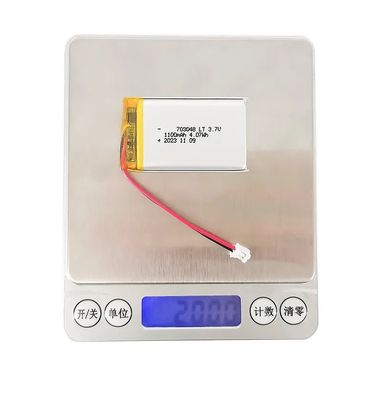

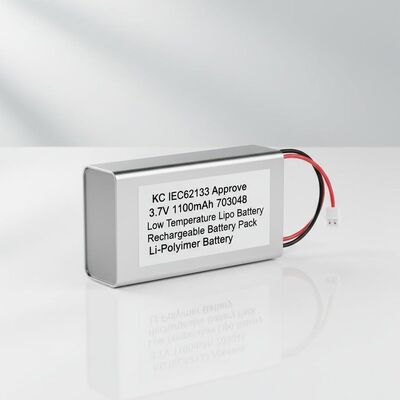

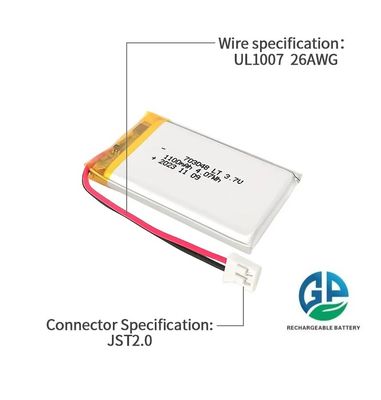

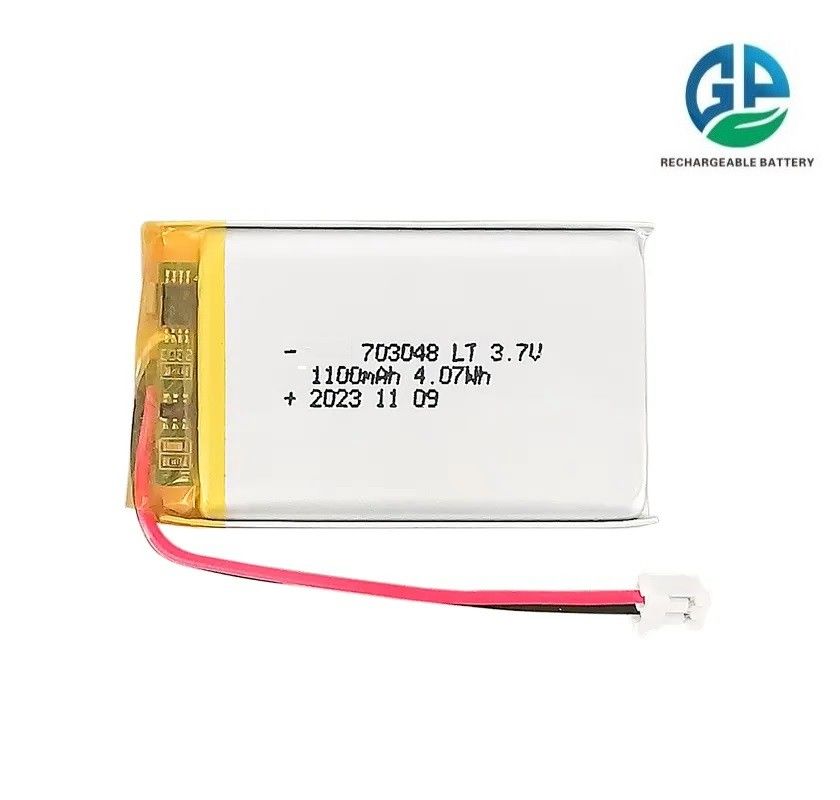

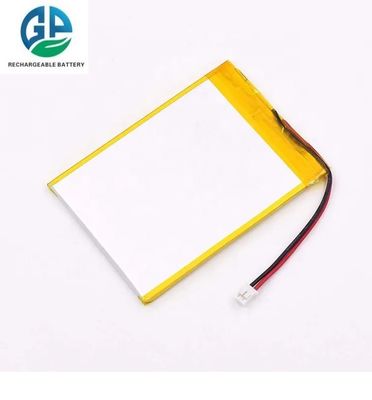

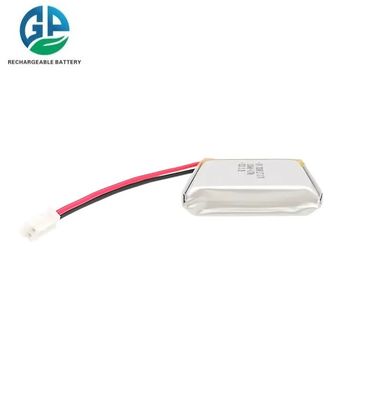

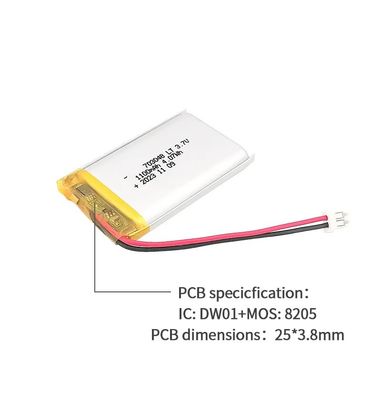

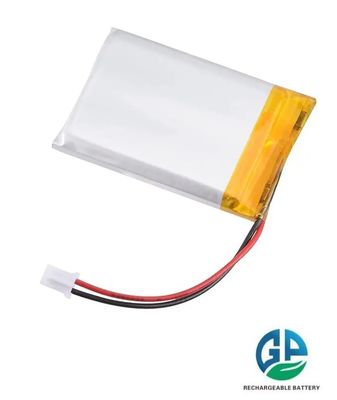

Product Images

Why Choose Gold Power Energy

Advanced Technology

All-weather applicability (-30~60℃)
Highly safe battery design with newest electrolyte and separator technology
Full coverage of battery varieties: Lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, square aluminum shell, primary batteries

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

Certifications

CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC62133 certified.

Factory Overview

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li-polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.

Related KC Certified Battery Models

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC
603450	3.7V	1100mAh	UL/KC/CE/IEC62133/UN38.3/MSDS
103450	3.7V	1800mAh	UL/KC
105050	3.7V	3000mAh	CB/KC/IEC62133/CE
