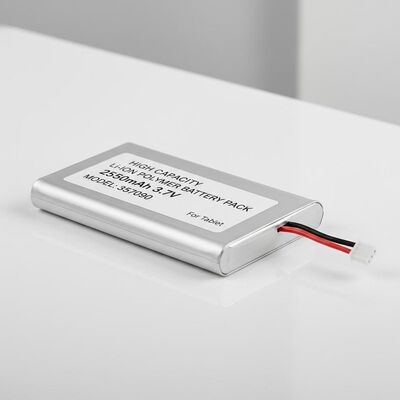

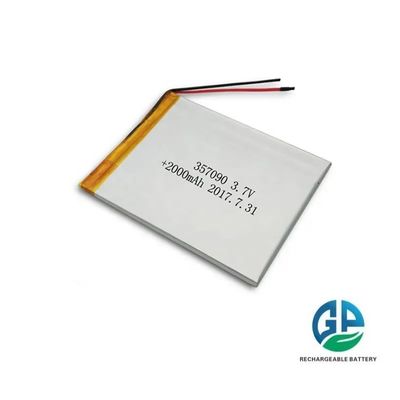

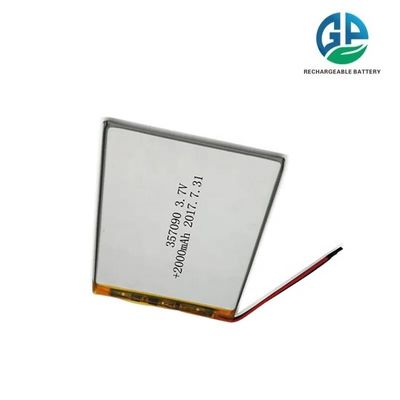

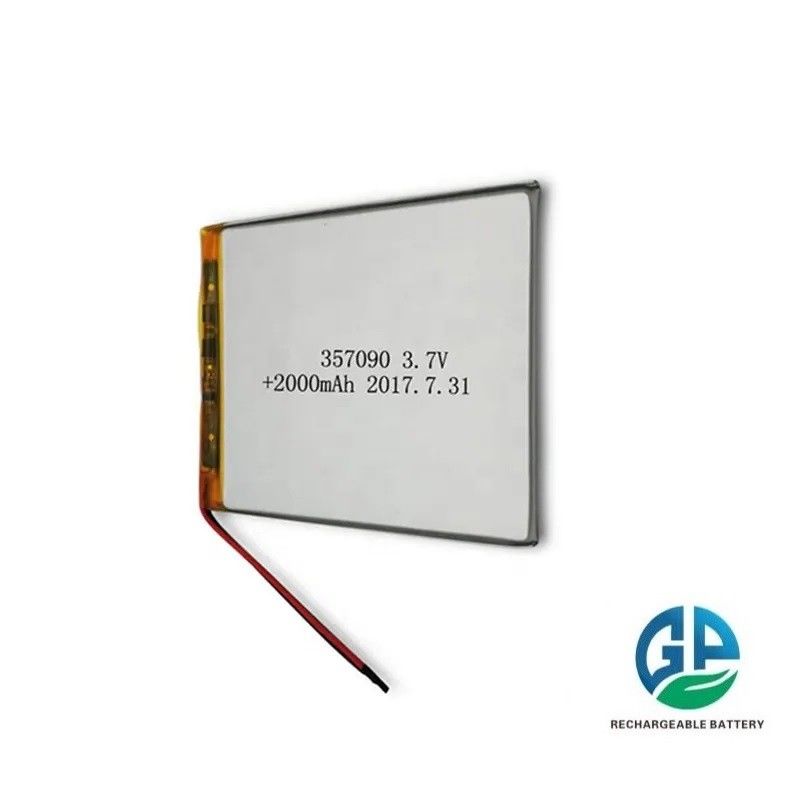

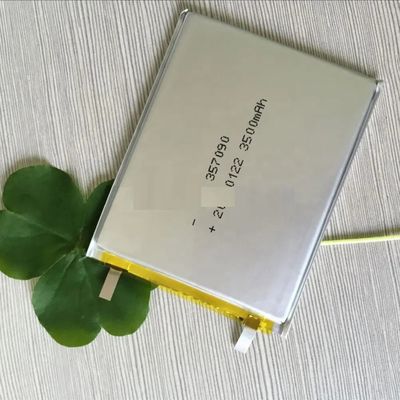

| Model Number: | 357090 |
| MOQ: | 2000pieces |

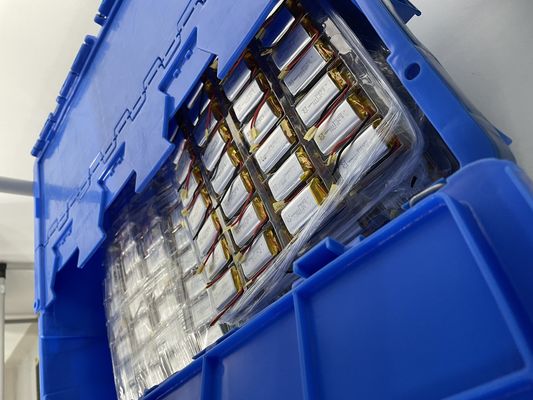

| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Parameter | Specification | Remarks |
|---|---|---|
| Rated Capacity | 2500mAh | 0.2C5A Standard discharge |
| Minimum Capacity | 2480mAh | 0.2C5A Standard discharge |
| Normal Voltage | 3.7V | Mean Operation Voltage |
| O.C.V | 3.7~3.9V | |
| Limited Charging Voltage | 4.2V | |
| Discharge Cut-off Voltage | 3.0V | |
| Standard Charging Method | 0.2C5A constant current charge to 4.4V, then constant voltage 4.4V charge till charged current declines to ≤ 0.01C5A | |
| Charging Time | Standard: 5.5~6.5h (0.2C5A) Rapid: 1.5~2h (1.0C5A) |
|
| Maximum Charge Current | 2500mA | 1.0C5A |
| Standard Discharging Current | 500mA | 0.2C5A |
| Maximum Discharge Current | 2500mA | 1.0C5A |
| Impedance | ≤60mΩ | |
| Battery Weight | Approx. 40g | |
| Operating Environment | Charging: 5℃~45℃ Discharging: -10℃~60℃ Humidity: 60±25% R.H. |
|
| Storage Temperature | -20℃~25℃ Humidity: 60±25% R.H. |
Spare battery within six months to recharge the battery to activate at least once |
|
