| Model Number: | LP602080 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
Li Battery Pack Storage Battery Pack 3.7V Small Lithium Polymer Battery 602080 600mah 650mah 700mah KC Lipo Battery
| NO. | Items | Specifications |
| 1 | Charge voltage | 4.2V |
| 2 | Nominal voltage | 3.7V |
| 3 | Nominal capacity | 5000mAh @ 0.2C Discharge |
| 4 | Charge current |
Standard Charging::0.2C Rapid charge: 1.0C |
| 5 | Standard Charging method | 0.2C CC(constant current)charge to4.2V,then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 6 | Charging time |
Standard Charging:3.0hours(Ref.) Rapid charge: 2hours(Ref.) |
| 7 | Max.charge current | 1.0C |
| 8 | Max.discharge current | 1.0C |
| 9 | Discharge cut-off voltage | 3.0V |
| 10 | Operating temperature |
Charging: 0℃~45℃ Discharging:-10℃~60℃ |
| 11 | Storage temperature | -10℃~ +45℃ |
| 12 | PACK Weight | Approx:3.8g |
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

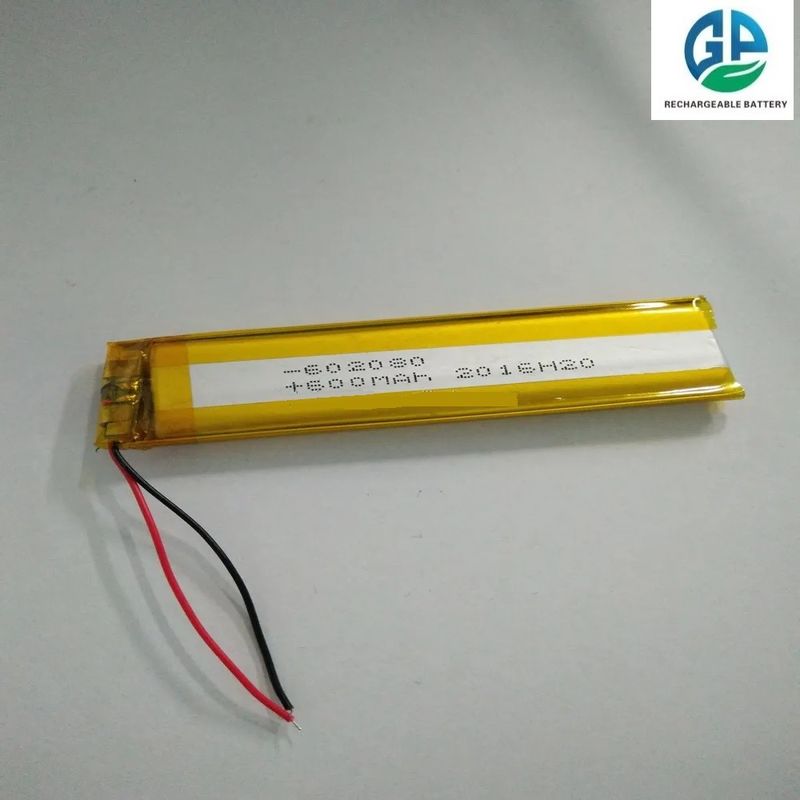

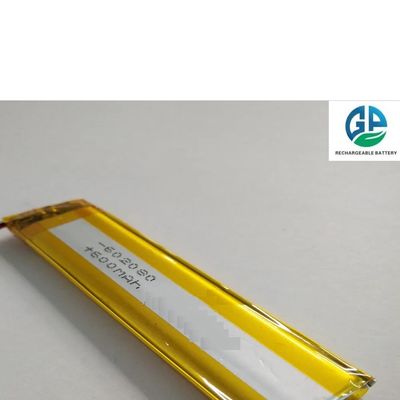

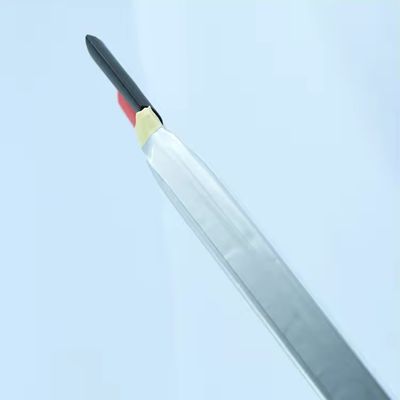

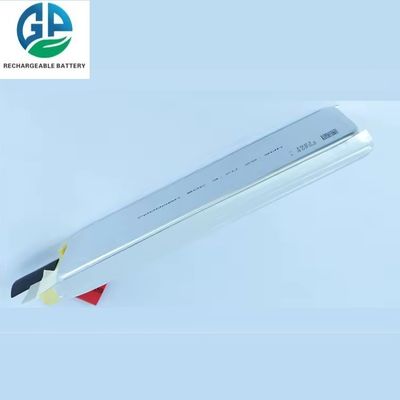

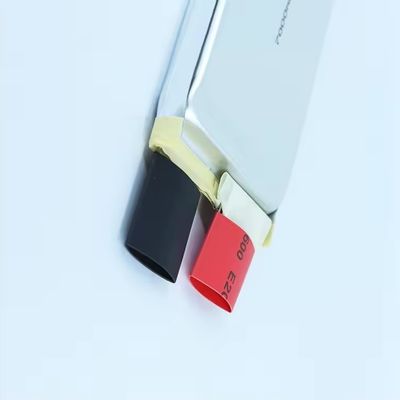

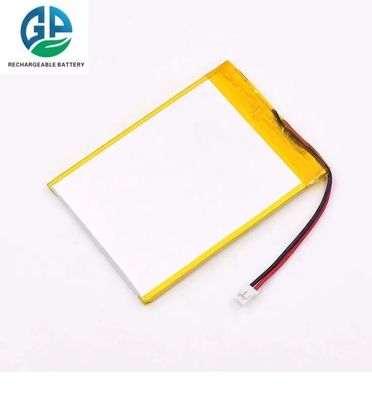

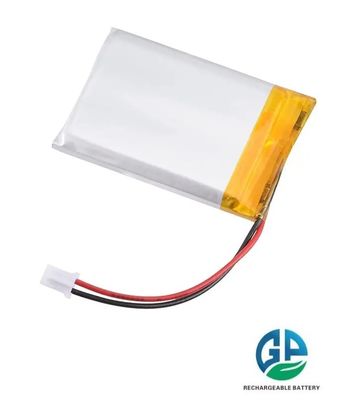

Detailed images Li Polymer 602080 600mah 3.7v Rechargeable pack
Standard packaging for 3.7V lithium polymer battery pack
Battery storage
The following are some general tips for storing batteries:
1. Keep the battery away from extreme temperatures, such as hot or cold environments.
2. Avoid exposing the battery to moisture, as this can damage the cells and cause short circuits.
3. Store the battery in a safe and secure place, away from children and pets.
4. Do not leave the battery charging for extended periods of time, as this can cause overcharging and damage the cells.
5. If the battery is not being used for an extended period of time, it should be stored in a discharged state to prevent damage.
6. Follow the manufacturer's instructions for storage and handling of the specific type of battery being stored.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
