| Model Number: | 105050 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

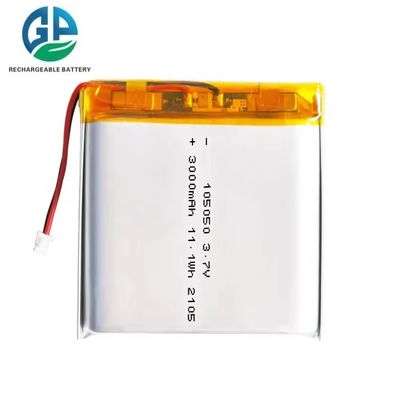

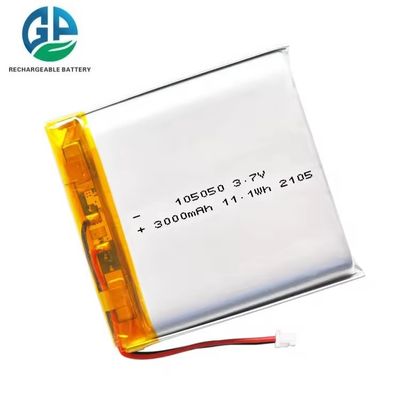

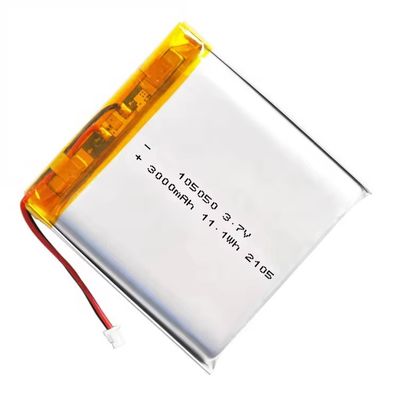

KC IEC62133 approved 3.7 volt li polymer rechargeable batteries 3000mAh customized lithium ion polymer battery
Do not submerge the battery in water
Do not mix fresh batteries with used batteries
Do not mix batteries with metal objects
Do not insert batteries with (+) and (-) terminals reversed
Do not disassemble, dispose in fire, heat or short circuit
Do not put the battery in a charger or equipment with wrong terminals connected
| Product Name | Rechargeable 3.7v 3000mAh 105050 lithium battery |
| Material | 3.7V lithium polymer battery |
| Quality | Grade A cells |
| Model | 105050 |

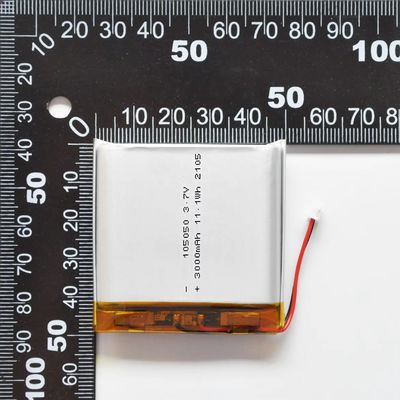

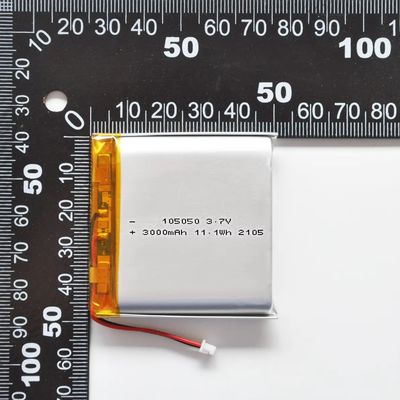

| Dimension Range with PCB | Length: 50≤+2/-0.5mm Width: 50≤±0.5mm Thickness: 10≤±0.3mm |
| Connector (normal) | 1.0mm/1.25mm/2.0mm pitch |
| PCM /PCB | Customized (Discharge cut-off voltage: 3.0V or 2.4V) |
| Cycle Life | 500+ Times |
| Lead Time | 8-14 Days (in stock) 25-35 Days (out of stock) |
| Function | Ideal for wireless keyboards, earphones, beauty instruments, tire pressure meters, smart helmets, smart lights, etc. |
| Brand | Manufacturer with own factory, supporting custom OEM & ODM orders |

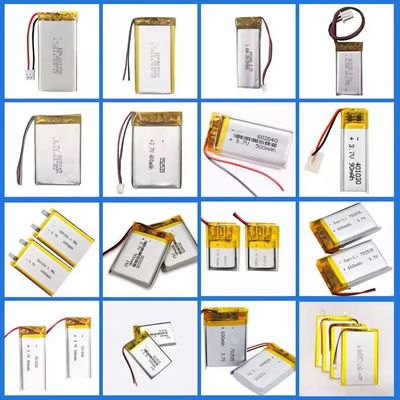

| Battery Model | Battery Cell Dimension | Battery Pack With PCM Size | Battery Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
• All-weather applicability (-30~60℃)
• Highly safe battery design with newest electrolyte and separator technology
• Full coverage of battery varieties: Lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage, square aluminum shell, primary batteries
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements
CERoHsBISKCCBULMSDSUN38.3IEC61233
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
