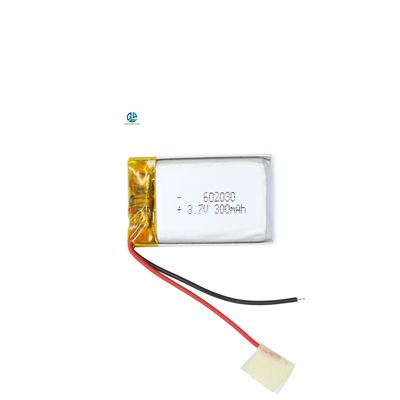

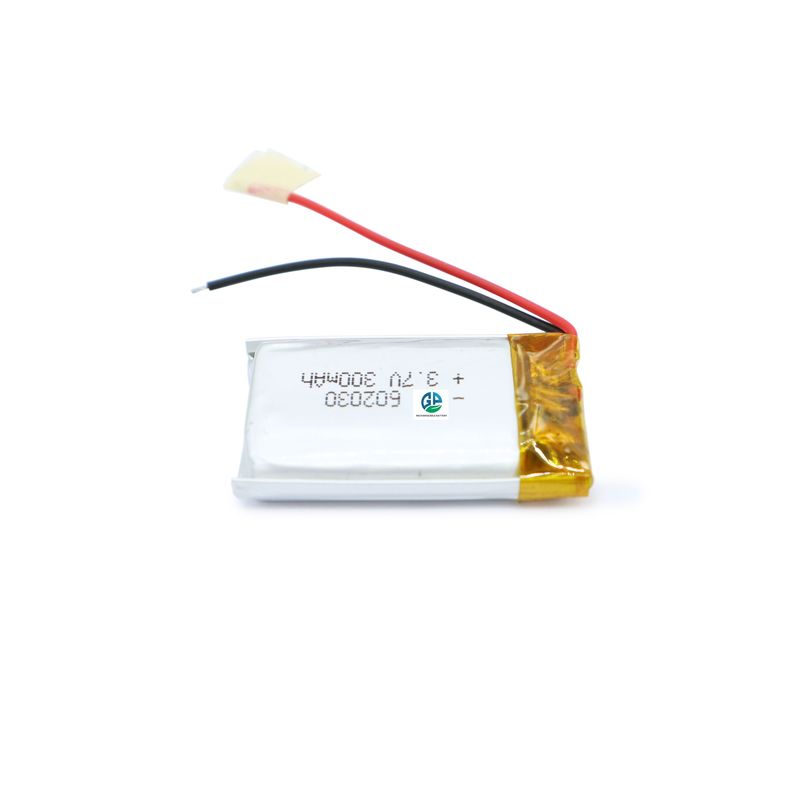

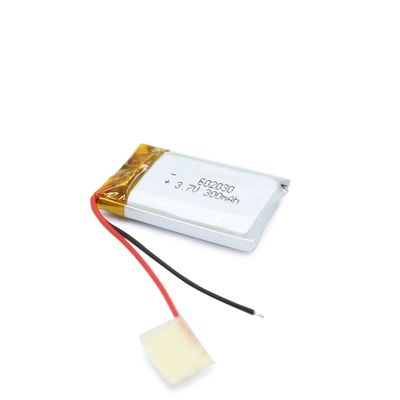

| Model Number: | 602030 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Item | Rating | Note |
|---|---|---|
| Capacity | Typical: 300mAh Minimum: 290mAh |
Discharge: 0.2CmA cut off Voltage: 3.0V for cell |
| Nominal Voltage | Average 3.7V | Discharge: 0.2CmA cut off Voltage: 3.0V for cell |
| AC Impedance Resistance | ≤50mΩ | |
| Discharge Cut-off Voltage | 3.00V | |
| Charge Current | 60mA | Standard Charge |
| Charge Voltage | 4.2V | |
| Max. Charge Voltage | 4.23V | |
| Charge Time | Approx 2.5h | Charge: 1.0CmA |
| Max. Charge Current | 300mA | 1.0CmA |
| Max. Discharge Current | 300mA | |
| Weight | Approx 10g | |
| Operating Temperature | Charge: 0~+45°C Discharge: -20~+60°C |
|
| Storage Temperature | less than 1 month: -20~+45°C | Recommended storage temperature: 20°C, at the shipment state |
