KC Approved 1200mAh 3.7V Lithium Polymer Battery Rechargeable Lipo Battery Pack

Model Number:	LP951768
MOQ:	3000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC,UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lithium Polymer Battery

Voltage:

Capacity:

1200mAh

Cycle Life:

500times

Size:

9.5*17*70mm

Weight:

3000pcs

Warranty:

1 Year

Lead Time:

15-20days

Supply Ability:

100'000Pieces daily

Highlight:

Rechargeable 1200mAh 3.7v Lipo Battery

KC Approved 1200mAh 3.7v Lipo Battery

951768 Lithium Polymer Battery

Product Description

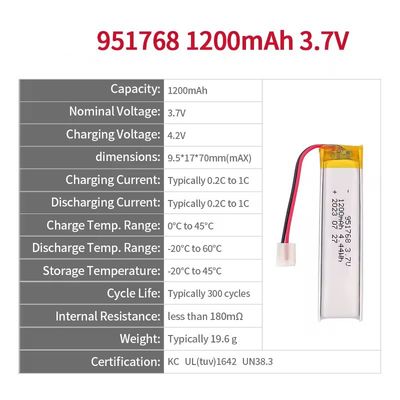

KC Approved 1200mAh 3.7V Lipo Battery

Rechargeable 3.7V 1200mAh 951768 Lithium Polymer Battery Pack

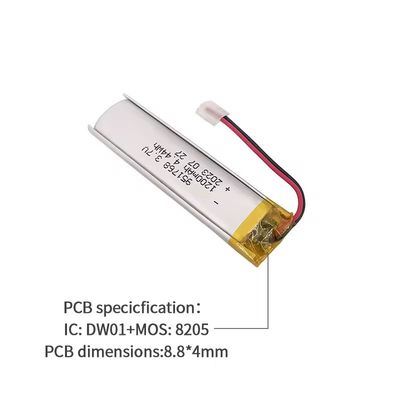

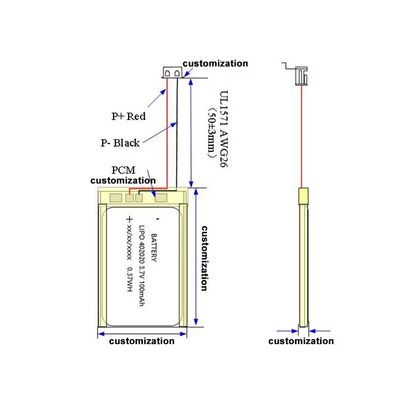

Mechanical Characteristics

Cell	951768
PCM	Yes
NTC	No
Weight	Approx. 19.6g
Configuration	1S1P
Dimensions	9.51770mm (MAX)

Electrical Specification

Capacity	1200mAh
Nominal Voltage	3.7V
Energy	4.44Wh
Internal Impedance	Less than 180 mΩ
Max. Charge Voltage	4.2V
Discharge Cut Off	2.75V
Max. Charge Current	1200mA
Max. Discharge Current	1200mA
Standard Charge Current	240mA
Standard Discharge Current	240mA
Charge Temp. Range	0℃ to 45℃
Discharge Temp. Range	-20℃ to 60℃
Storage Temp. Range	1 year at -20℃ to +30℃
Cycle Life	100 cycles ≥92% \| 300 cycles ≥88% \| 500 cycles ≥80%

Cell Protection Features

Overcharge Detection	4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
Over Discharge Detection	2.5V ±50mV (115 to 175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9 to 15msec delay)
Short Protection	Yes

Additional Li Polymer Battery Models

Available in stock with minimum order acceptance:

Model	Dimension	With PCM Dimension	Capacity
302025	3.02025mm	3.22127.5mm	3.7V 100mAh
302530	3.02530mm	3.22632.5mm	3.7V 180mAh
401824	4.01824mm	4.21926.5mm	3.7V 180mAh
402525	4.02525mm	4.22627.5mm	3.7V 200mAh
483450	4.83450mm	5.03552.5mm	3.7V 850mAh
502030	5.02030mm	5.22132.5mm	3.7V 240mAh
502525	5.02525mm	5.22627.5mm	3.7V 180mAh
503030	5.03030mm	5.23132.5mm	3.7V 430mAh
523450	5.23450mm	5.43552.5mm	3.7V 1000mAh
553444	5.53444mm	5.73546.5mm	3.7V 850mAh
553640	5.53640mm	5.73742.5mm	3.7V 850mAh
553759	5.53759mm	5.73861.5mm	3.7V 1400mAh
602030	6.02030mm	6.22132.5mm	3.7V 300mAh
602240	6.02240mm	6.22342.5mm	3.7V 500mAh
602535	6.02535mm	6.22637.5mm	3.7V 500mAh
602663	6.02663mm	6.22765.5mm	3.7V 1000mAh
603030	6.03030mm	6.23132.5mm	3.7V 520mAh
603040	6.03040mm	6.23142.5mm	3.7V 750mAh
603048	6.03048mm	6.23150.5mm	3.7V 900mAh
603450	6.03450mm	6.23552.5mm	3.7V 1050mAh
702040	7.02140mm	7.22242.5mm	3.7V 500mAh
753048	7.53048mm	7.73150.5mm	3.7V 1200mAh
803035	8.03035mm	8.23137.5mm	3.7V 800mAh

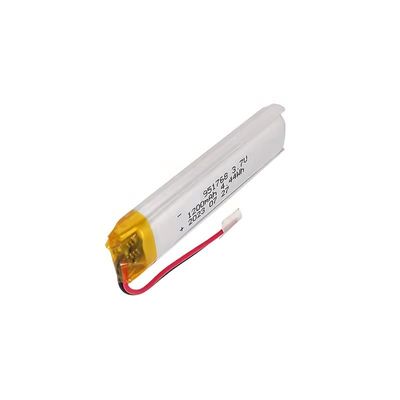

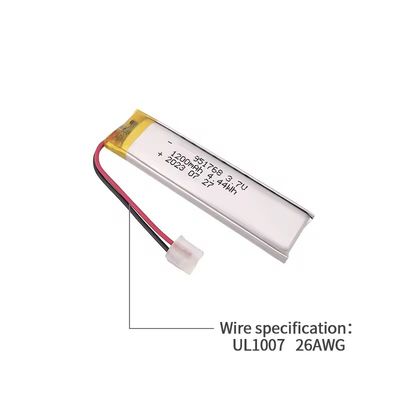

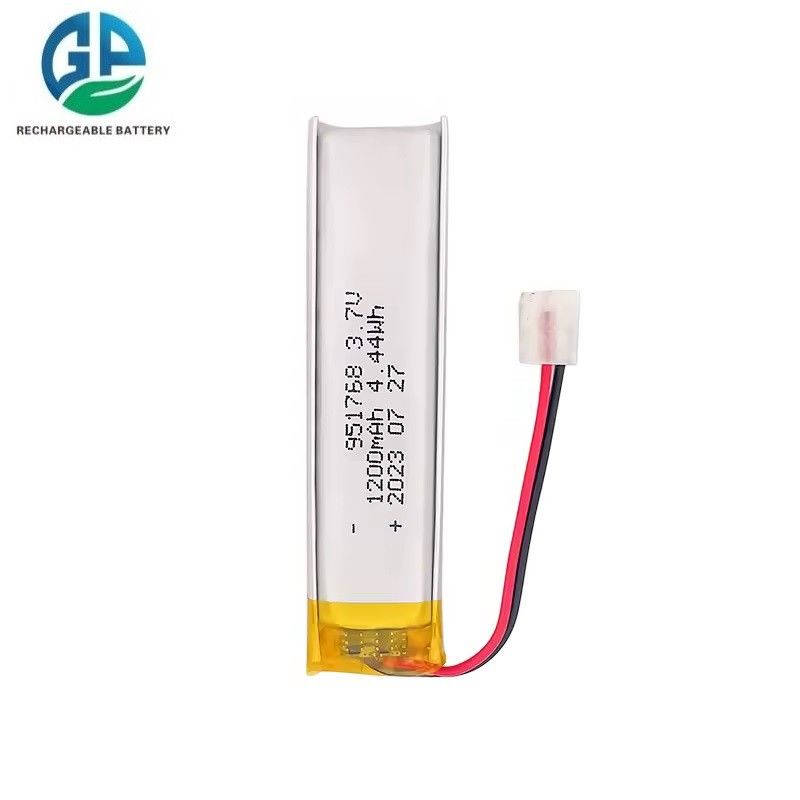

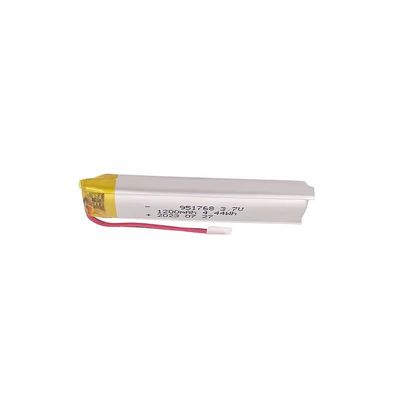

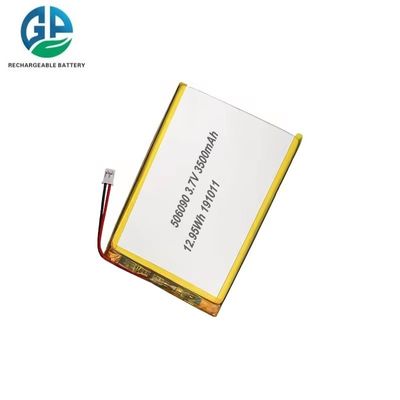

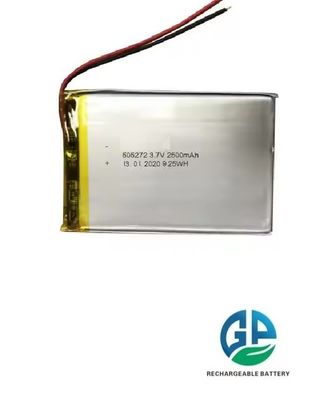

Product Images

Standard Packaging

Why Choose Our Lithium Polymer Batteries

Advanced Technology

All-weather applicability (-30℃ to 60℃)
Highly safe battery design with latest electrolyte and separator technology
Full coverage of battery varieties including lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, and more

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

Quality Control

Certifications

CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

Factory Overview

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, providing various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
