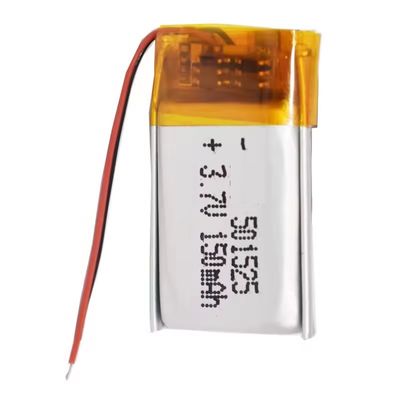

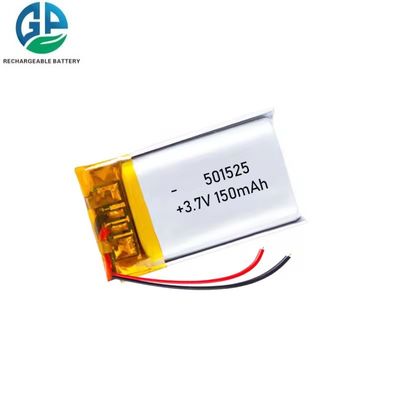

| Model Number: | LP501525 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| Battery Type | Lithium polymer rechargeable battery |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 150mAh |
| Dimensions | 5(T)*15(W)*25(L)mm |
| Approx Weight | 5g |
| Charge Cut-off Voltage | 4.20V±0.05V |
| Standard Charge Current | 30mA (0.2C) |
| Max Charge Current | 150mA (1.0C) |
| Discharge Cut-off Voltage | 3.0V |
| Standard Discharge Current | 30mA (0.2C) |
| Max Constant Discharge Current | 150mA (1C) |
| Operating Temperature | Charge: 0~+45℃, Discharge: -20~+60℃ |
| Certifications | KC, CE, ROHS, UN38.3, MSDS |
| Model | Dimensions | With PCM Dimensions | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
|
