| Model Number: | LP505050 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

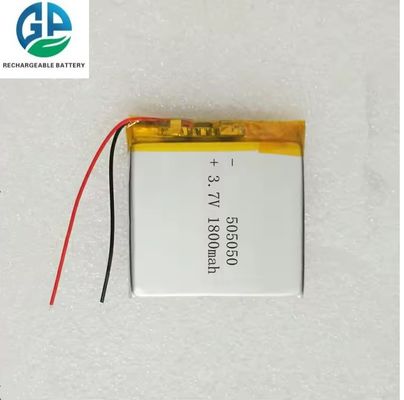

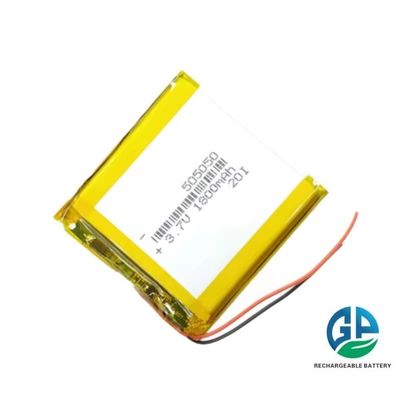

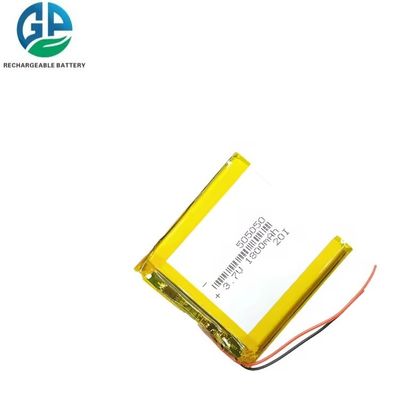

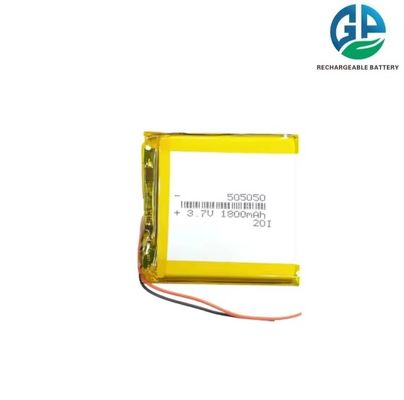

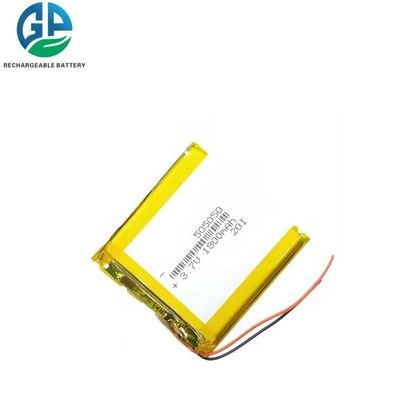

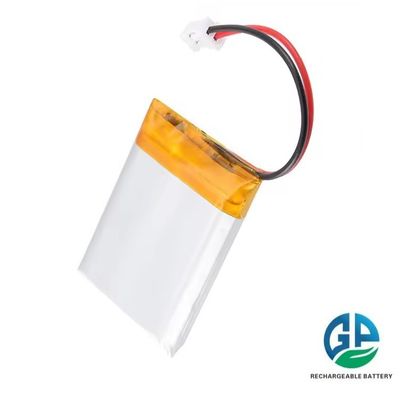

li polymer battery 505050 3.7V 1800mAh lithium rechargeable battery pack
|
Item
|
Details
|
|
|
Energy
|
Nominal Voltage
|
3.7V
|
|
Rated Capacity
|
1800mAh
|
|
|
Energy
|
6.66Wh
|
|
|
Cycle life
|
>600 cycles @0.2C 100%DOD
|
|
|
Battery type
|
Li-polymer
|
|
|
Internal Resistance
|
≤60mΩ
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C
|
|
Charge
|
Maximum charge current
|
1C
|
|
Charge voltage
|
4.2±0.2V
|
|
|
Charge cutoff Voltage
|
4.2V
|
|
|
Discharge
|
Standard discharge current
|
Constant current 0.2C
|
|
Maximum continuous discharge current
|
1C
|
|
|
Pulse discharge current
|
2C
|
|
|
Discharge cutoff voltage
|
3.0±0.2V
|
|
|
Temperature condition
|
Working temperature
|
-25~60℃
|
|
Charge temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Discharge temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage temperature
|
Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25°C
|
|
|
Mechanical
|
Combination
|
1S1P
|
|
Max. Dimension
|
T5.0*W50.2*L51.5mm/PCM inclu.
|
|
|
Housing
|
PVC/Aluminum foil
|
|
|
N.W.
|
36g
|
|
|
PCM
|
Included
|
|
|
Cable,Connector
|
Included
|

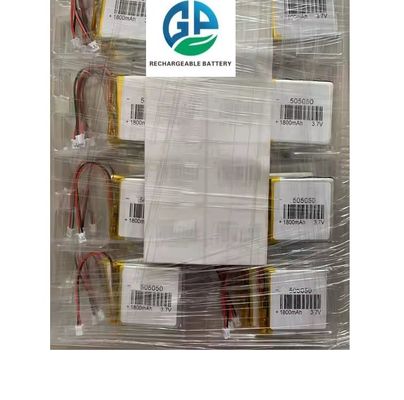

Standard packaging for 3.7V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
