| Model Number: | LP505050 |
| MOQ: | 3000pieces |

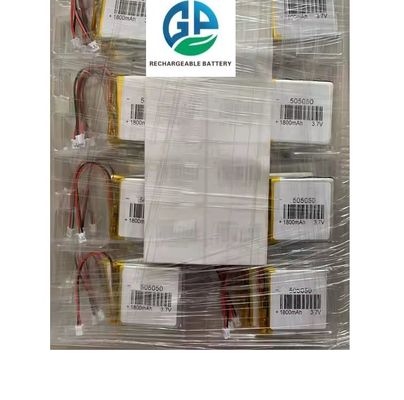

| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

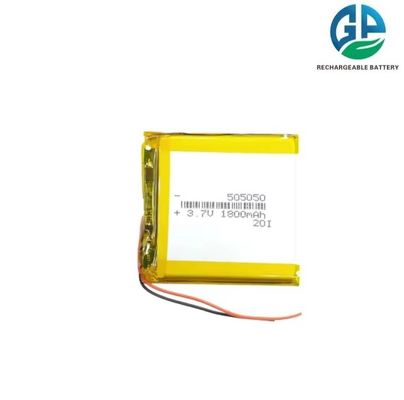

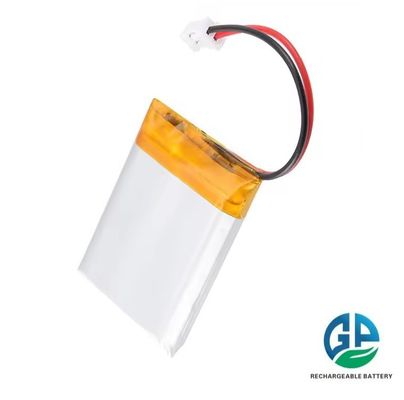

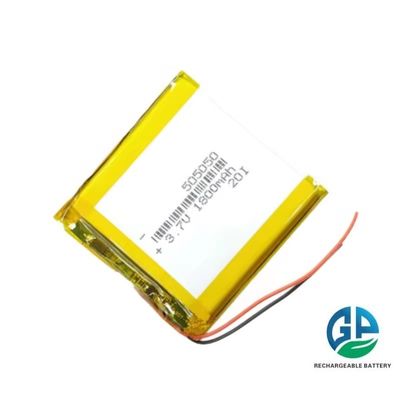

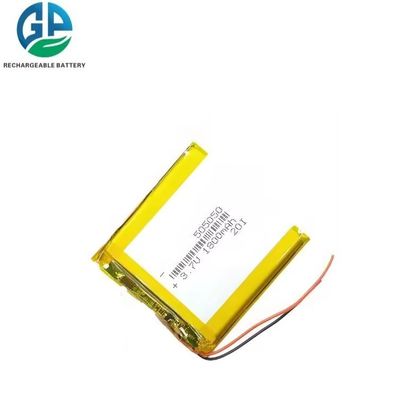

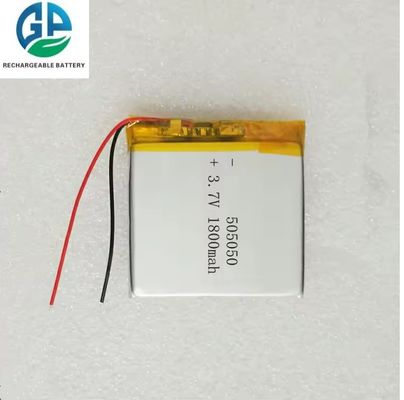

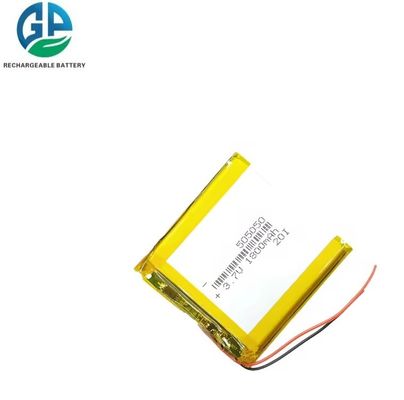

Li polymer battery 505050 3.7V 1800mAh lithium rechargeable battery pack
| Energy Specifications | |
|---|---|
| Nominal Voltage | 3.7V |
| Rated Capacity | 1800mAh |
| Energy | 6.66Wh |
| Cycle life | >600 cycles @0.2C 100%DOD |
| Battery type | Li-polymer |
| Internal Resistance | ≤60mΩ |
| Electrical Parameters | |
|---|---|
| Standard charge current | 0.5C |
| Maximum charge current | 1C |
| Charge voltage | 4.2±0.2V |
| Charge cutoff Voltage | 4.2V |
| Standard discharge current | Constant current 0.2C |
| Maximum continuous discharge current | 1C |
| Pulse discharge current | 2C |
| Discharge cutoff voltage | 3.0±0.2V |
| Temperature Conditions | |
|---|---|
| Working temperature | -25~60℃ |
| Charge temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage temperature | Less than 3 months:-20°C~ 45°C; Less than 1 year:-20°C~ 25°C |
| Mechanical Specifications | |
|---|---|
| Combination | 1S1P |
| Max. Dimension | T5.0*W50.2*L51.5mm/PCM inclu. |
| Housing | PVC/Aluminum foil |
| N.W. | 36g |
| PCM | Included |
| Cable, Connector | Included |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
