KC Approved 3.7V 520mAh Li Polymer Battery - Mini Rechargeable Lithium Polymer Battery for Digital Products

Model Number:	LP244147
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

KC,UN38.3, MSDS, IEC62133, RoHS

Battery Type:

Lithium Polymer Battery Pack

Voltage:

Capacity:

520mAh

Cycle Life:

500times

2000pcs

Warranty:

1 Year

Lead Time:

15-20days

Application:

Digital Products,Consumer Electronics

SIZE:

2.4*41*47.5mm

Supply Ability:

50'000Pieces daily

Highlight:

Mini Rechargeable Li Polymer Battery

3.7v 520mah Li Polymer Battery

3.7V Li Polymer Battery 244147

Product Description

3.7V 520mAh KC Approved Li Polymer Battery 244147

High Capacity 3.7V 520mAh Lithium Ion Polymer Battery with 500+ cycle life

Safety Precautions

Keep battery away from children to prevent swallowing
Read all guides carefully before use, charging, or installation
Replace battery when performance degrades
Remove battery when life cycle ends
Store in low temperature, low humidity when not in use for extended periods
Clean battery connections with dry cloth before use if dirty
Use, charge, and store away from electrostatic environments
Operating temperature ranges: Charge 0°C~45°C, Discharge -20°C~55°C

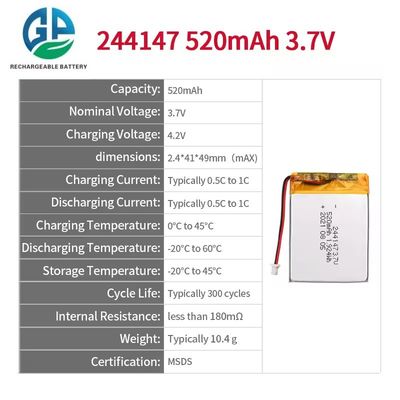

Technical Specifications

Mechanical Characteristics

Cell: 244147

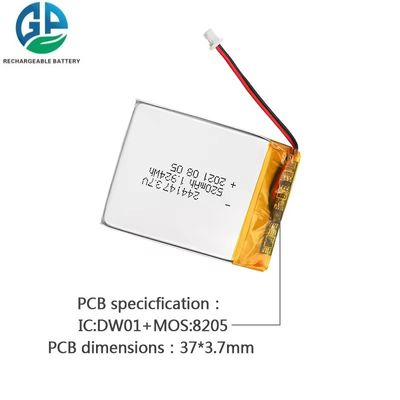

PCM: Yes

NTC: No

Weight: ~10.4g

Configuration: 1S1P

Electrical Specifications

Capacity: 520mAh

Nominal Voltage: 3.7V

Energy: 1.924Wh

Internal Impedance: <180mΩ

Max Charge Voltage: 4.2V

Discharge Cut Off: 2.75V

Current Ratings

Max Charge Current: 520mA

Max Discharge Current: 520mA

Standard Charge: 104mA

Standard Discharge: 104mA

Temperature Ranges

Charge: 10°C to 45°C

Discharge: -20°C to 60°C

Storage: Various conditions available

Cell Protection Features

Protection Type	Specifications
Overcharge Detection	4.28 ±25mV (1-1.6sec delay, release 4.2V ±50mV)
Overdischarge Detection	2.5V ±50mV (115-175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9-15msec delay)
Short Circuit Protection	Yes

Additional Battery Models

Shenzhen Gold Power Energy offers over 1000 lithium polymer battery models with capacities from 20mAh to 5000mAh to meet various application requirements.

Popular models include:

Model	Capacity (mAh)	Model	Capacity (mAh)	Model	Capacity (mAh)
103665	2600	635585	3400	2988155	4600
103863	2600	644657	2350	2992140	5000
103874	3500	656098	5000	299783	3000

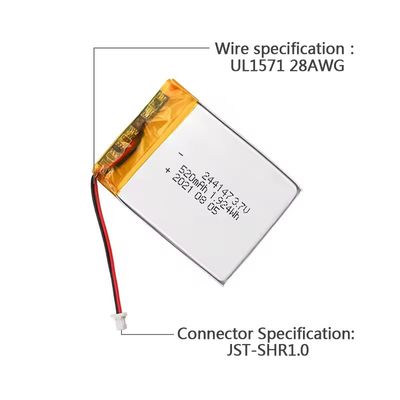

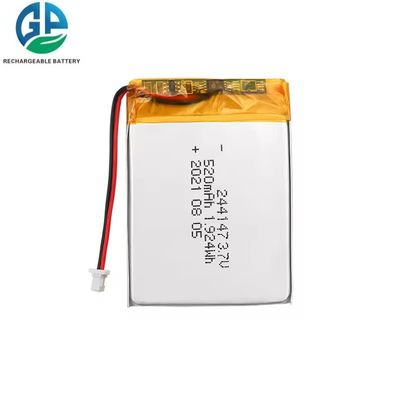

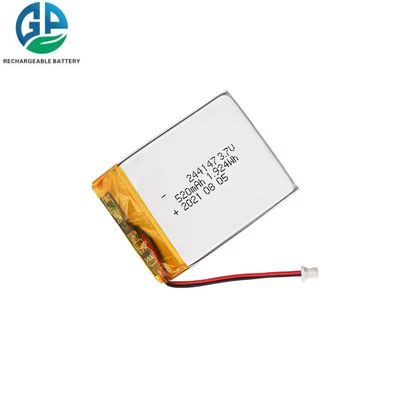

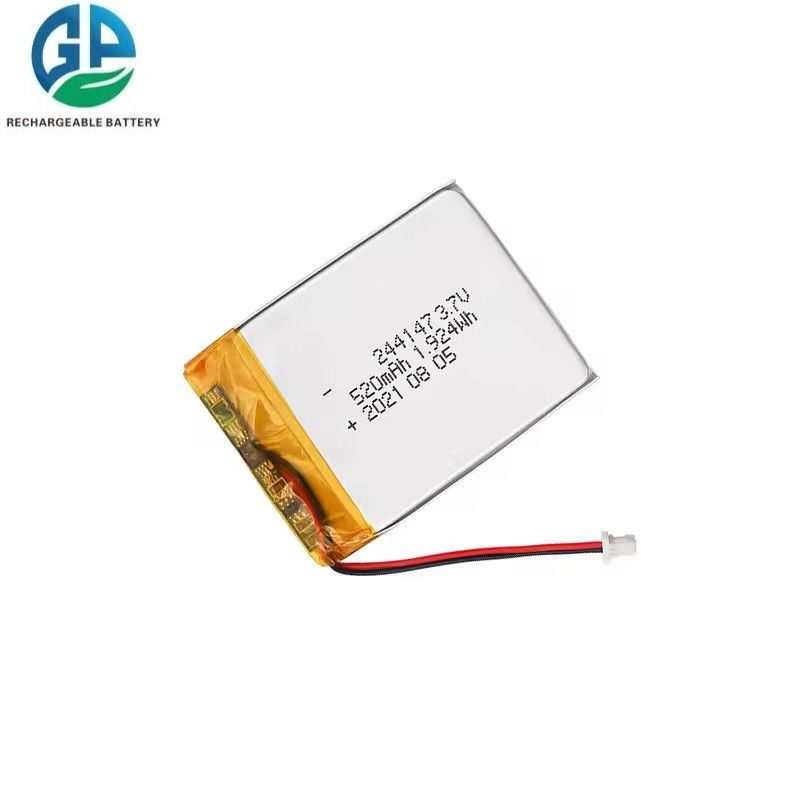

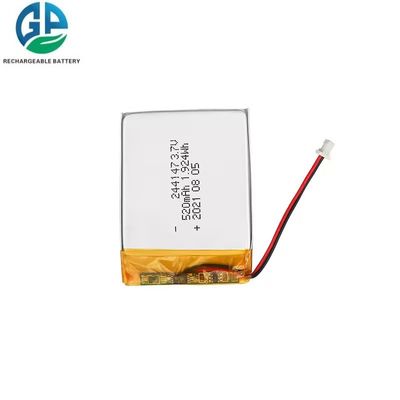

Product Images

Standard Packaging

Why Choose Gold Power Energy

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified for quality assurance.

Factory Overview

Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
