Model Number: | LP244147 |
MOQ: | 2000pieces |
Packaging Details: | Bulk packing |
Payment Terms: | T/T |
High Capacity 3.7V 520mAh Lithium Ion Polymer Battery 500times 244147
High Capacity 3.7V 520mAh Li Polymer Battery 244147
Safety Precaution for rechargeable lithium battery:
1). Keep the battery away from the children, avoiding being swallowed.
2). Read the guide carefully and pay attention to the guide when using the battery.
3). Read the guide carefully before charging the battery.
4). Read the instrument guide carefully before installing or uninstalling the battery from the instrument.
5). Be sure to use the battery during its available time, change the battery if the battery is unavailable.
6).Take out the battery when its life time is over.
7).Take out the battery and keep it under low temperature and low humidity when the battery is not used for a long time.
8). Clean the battery with dry cloth before use if the connection of the battery is dirty.
9). Battery should be charged, used and stored far from the electrostatic place.
10).The battery should be used in the temperature range below:
11).Charge temperature range:0ºC~45ºC
12).Discharge temperature range:-20ºC~55ºC
Li Polymer Battery 244147 3.7v 520mah Lipo Battery Cell For Smart home
1,Mechanical Characteristics
|
|||
Cell:
|
244147
|
PCM:
|
Yes
|
NTC:
|
No
|
Weight:
|
appr. 10.4g
|
Configuration:
|
1S1P
|
|
|

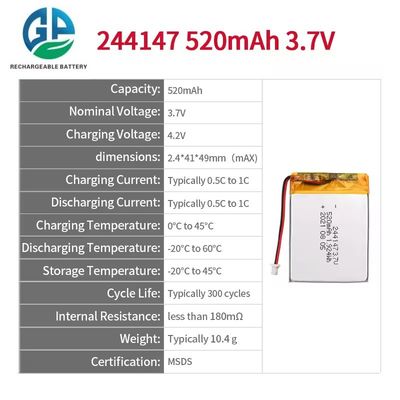

2,Electrical Specification
|
|||
Capacity:
|
520mAh
|
Nominal Voltage:
|
3.7V
|
Energy:
|
1.924Wh
|
Internal Impedance:
|
less than 180mΩ
|
Max. Charge Voltage:
|
4.2V
|
Discharge Cut Off:
|
2.75V
|
Max. Charge Current:
|
520mA
|
Max. Discharge Current:
|
520mA
|
Standard Charge Current:
|
104mA
|
Standard Discharge Current:
|
104mA
|
Charge Temp. Range:
|
10°C to 45°C
|
Discharge Temp. Range
|
-20°C to 60°C
|
Storage Temp. Range
|
1 year at -20℃ to +30℃
|
Cycle life:
|
100 cycles ≥92%
|
3 moths at -20℃ to +45℃
|
300 cycles ≥88%
|
||
1 month at -20℃ to +60℃
|
500 cycles ≥80%
|
||
3,Cell protection
|
|||
Overcharge Detection :
|
4.28 ±25mV (1 to 1.6sec delay, release 4.2V ±50mV)
|
Overdischarge Detection:
|
2.5V ±50mV (115 to 175msec. delay, release 3.0V ±50mV)
|
Overcurrent Detection:
|
2.5A to 4.0A (9 to 15msec. delay)
|
Short protection:
|
Yes
|
Other hot-sale Li polymer battery pack with capacity from 2000mAh to 5000mAh
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Model | Capacity(mAh) | Model | Capacity(mAh) | Model | Capacity(mAh) | ||
103665 | 2600 | 635585 | 3400 | 2988155 | 4600 | ||
103863 | 2600 | 644657 | 2350 | 2992140 | 5000 | ||
103874 | 3500 | 656098 | 5000 | 299783 | 3000 | ||
104598 | 5000 | 666583 | 5000 | 3060105 | 2200 | ||
104861 | 5000 | 678088 | 5500 | 3063114 | 2800 | ||
105080 | 5000 | 684277 | 2600 | 3065165 | 3800 | ||
105265 | 5000 | 685374 | 2900 | 3070105 | 2800 | ||
105368 | 5000 | 704084 | 2800 | 3070138 | 4000 | ||
105555 | 5000 | 705080 | 5000 | 3077120 | 3000 | ||
105568 | 5000 | 705565 | 3000 | 3082120 | 3000 | ||
105573 | 5000 | 705977 | 5000 | 3098120 | 4000 | ||
105853 | 5000 | 705978 | 5000 | 3168110 | 3400 | ||
105871 | 5900 | 706080 | 4800 | 32100103 | 5100 | ||
113565 | 3000 | 706090P | 5000 | 3465110 | 3400 | ||
113865 | 3700 | 706178 | 5000 | 34100100 | 5100 | ||
113865 | 4000 | 755590 | 5000 | 3582132 | 5000 | ||
115066 | 5100 | 755690 | 5000 | 3766125 | 3800 | ||
115459 | 5000 | 756285 | 5000 | 3768111 | 3600 | ||
125050 | 5000 | 785080 | 4000 | 4555110 | 3000 | ||
134560 | 5000 | 785394 | 5000 | 4573110 | 5000 | ||
155060 | 5000 | 795273 | 4000 | 4577120 | 5000 | ||
181865 | 2400 | 804258 | 2500 | 4662108 | 4200 | ||
183665 | 5200 | 804362 | 2500 | 4858102 | 5000 | ||
308390 | 2800 | 804569 | 3000 | 4870103 | 4800 | ||
315892 | 2400 | 804756 | 2600 | 5055100 | 3000 | ||
315992 | 2100 | 805060 | 3000 | 5078105 | 5000 | ||
325590 | 2500 | 805080 | 4000 | 5078105 | 5250 | ||
327580 | 2500 | 805568 | 4000 | 5165104 | 4000 | ||
337090 | 2400 | 805573 | 5000 | 5253104 | 4000 | ||
338088 | 3500 | 805582 | 5000 | 5552110 | 4000 | ||
347093 | 2800 | 805668 | 5000 | 5557112 | 5000 | ||
357092 | 2500 | 806070 | 4700 | 5560100 | 5000 | ||
357595 | 2800 | 806090 | 5000 | 5560103 | 5000 | ||
376883 | 2800 | 806575 | 5200 | 5563115 | 5000 | ||
377292 | 2800 | 815095 | 5000 | 5565110 | 5000 | ||
385793 | 2800 | 824258 | 2500 | 5565113 | 5000 | ||
405590 | 2500 | 845090 | 5000 | 5565125 | 5500 | ||
435871 | 2700 | 854466 | 2700 | 5758102 | 5000 | ||
455590 | 3200 | 855285 | 4500 | 6042125 | 2600 | ||
465590 | 3200 | 855584 | 5000 | 6060100 | 5000 | ||
485588 | 3000 | 856078 | 5000 | 6065110 | 5000 | ||
485782 | 3600 | 856234 | 2150 | 6265108 | 5500 | ||
486080 | 4000 | 884493 | 4950 | 648262 | 5000 | ||
486391 | 4400 | 905080 | 5000 | 6548118 | 5000 | ||
486393 | 4000 | 905183 | 5000 | 6560106 | 4100 | ||
486597 | 4000 | 905265 | 5000 | 6647112 | 4800 | ||
505573 | 2500 | 905267 | 3500 | 6649106 | 5000 | ||
505780 | 3600 | 905385 | 5100 | 6649120 | 5000 | ||
506090 | 3600 | 905573 | 5000 | 7048118 | 5800 | ||
506389 | 4500 | 905597 | 5400 | 7060100 | 5500 | ||
526090 | 4200 | 906065 | 5000 | 7242125 | 3450 | ||
528095 | 4000 | 954080 | 5000 | 7442125 | 3300 | ||
546877 | 3250 | 954082 | 5000 | 7544125 | 3300 | ||
555485 | 3000 | 954292 | 5000 | 785064 | 3900 | ||
564781 | 2400 | 954390 | 5000 | 8035130 | 5000 | ||
604396 | 2600 | 954595 | 5000 | 8055100 | 5000 | ||
605065 | 2200 | 954598 | 5000 | 806065 | 4150 | ||
606085 | 3800 | 955375 | 5000 | 28100138 | 5000 | ||
606090 | 4000 | 955465 | 5000 | 30100103 | 4000 | ||
606090 | 5000 | 955565 | 5000 | 50097025 | 3600 | ||
606168 | 2500 | 984180 | 5000 | 094463 | 5750 | ||
626481 | 5000 | 994570 | 5000 | 095465 | 4500 | ||
627872 | 5200 | 1055265 | 5000 | 096575 | 5000 | ||
635583 | 3500 | 2892116 | 4000 | 103890 | 4500 |

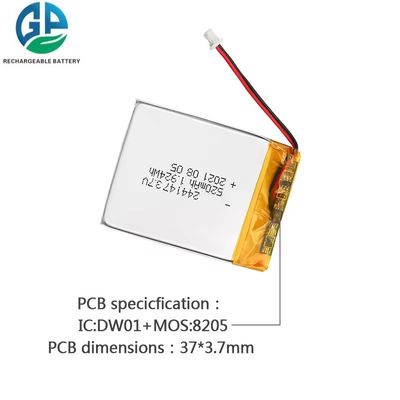

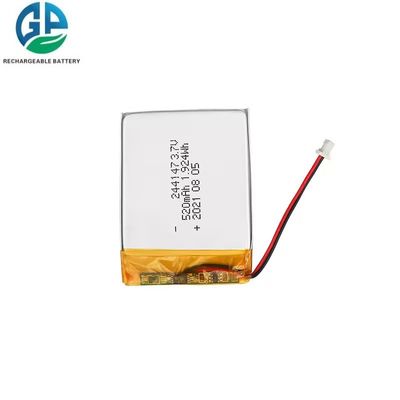

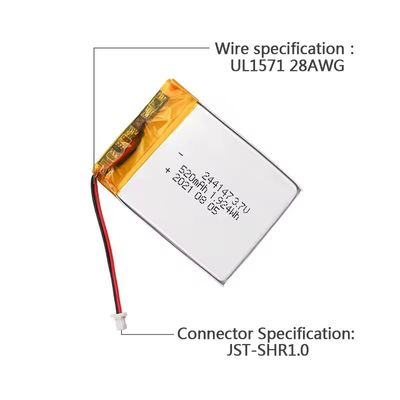

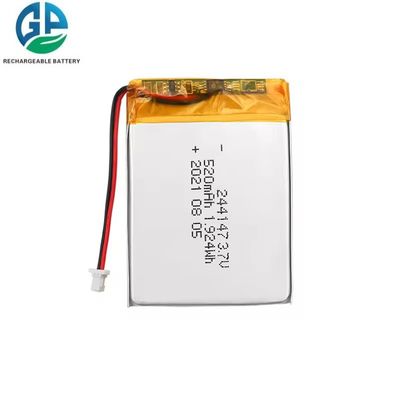

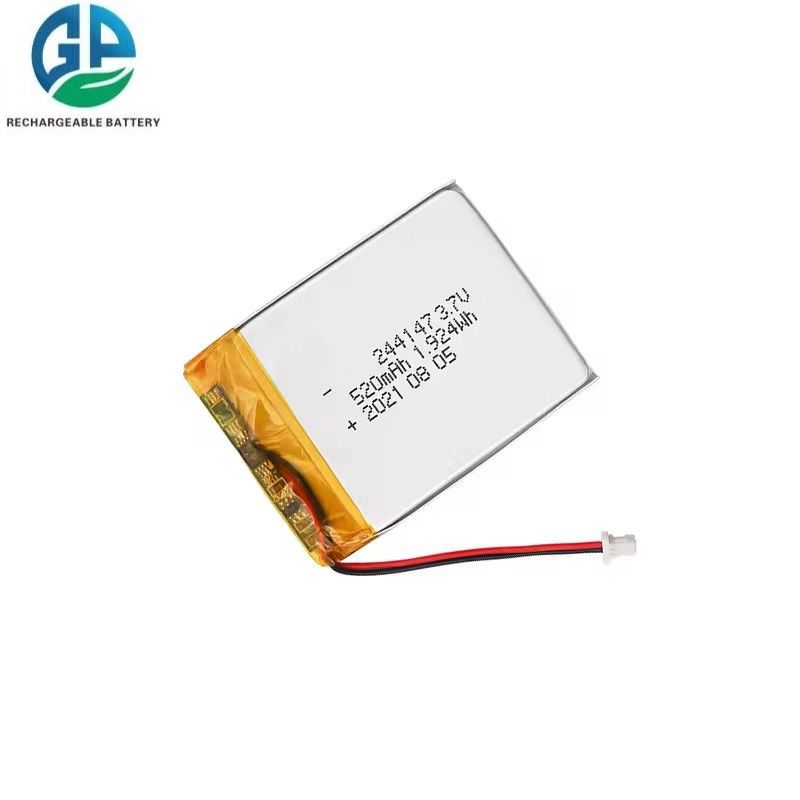

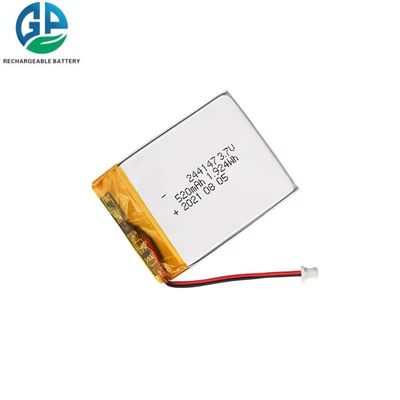

Images for Lithium Polymer 3.7V 244147 520mah li polymer lion Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
