| Model Number: | LP401730 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC Approved 3.7V 150Mah 401730 Lithium Polymer Battery Pack
|
Normal parameters
|
|
||
|
NO.
|
Item
|
General Parameter
|
|
|
1
|
Type
|
Lithium polymer Battery
|
|
|
2
|
Model
|
3.7v 150mah 401730pl
|
|
|
3
|
Color
|
Bule/as your requirement
|
|
|
4
|
Standard capacity(0.2C5A)
|
150mah
|
|
|
5
|
Rated voltage
|
3.7V
|
|
|
6
|
Max.charge voltage
|
4.2V
|
|
|
|
Std. continuous working current
|
0.2C
|
|
|
8
|
Max. continuous discharge current
|
1.0c
|
|
|
9
|
Max continuous discharge current
|
< 1.5A / customized
|
|
|
10
|
Peak discharge current
|
<4.5A / customized
|
|
|
12
|
(Approx.)Total weight(Approx.)
|
about 6g
|
|
|
13
|
Standard charging temperature
|
0℃~45℃
|
|
|
14
|
Discharge temperature
|
-20℃~60℃
|
|
|
15
|
Storage temperature
|
-20℃~45℃
|
|
|
16
|
Cycle life
|
>500 times
|
|
|
17
|
Warranty
|
12 month
|
|
|
18
|
Option
|
Connectors/other Capacity
|
|
|
19
|
PCB protection(optional)
|
Over-charge,over-discharge,short-circuit,over-temperature protection
|
|
|
20
|
Wires&Connector
|
Customized
|
|
Other hot-sale Li polymer battery pack models:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |

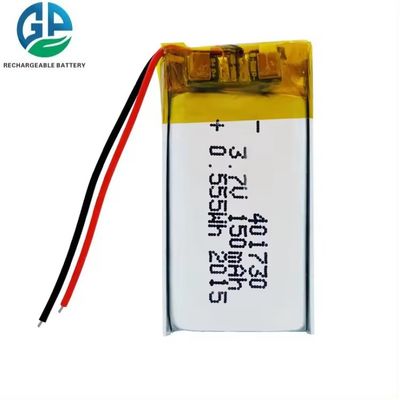

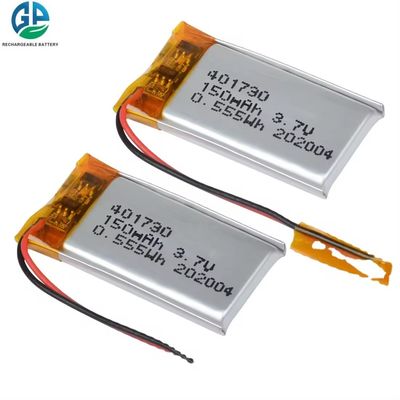

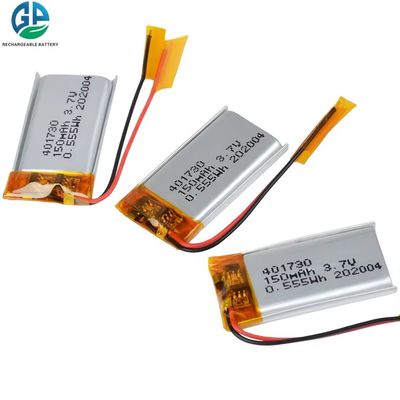

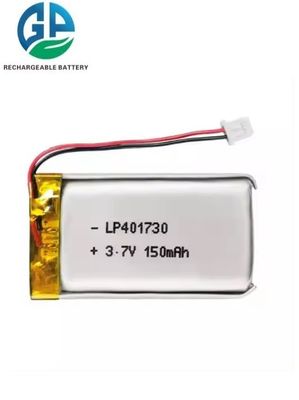

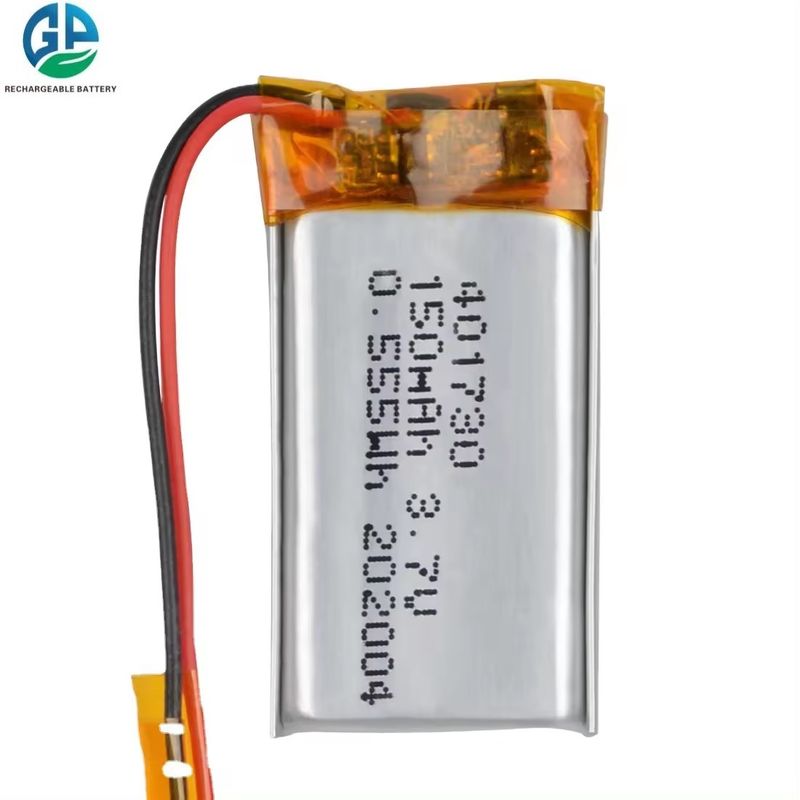

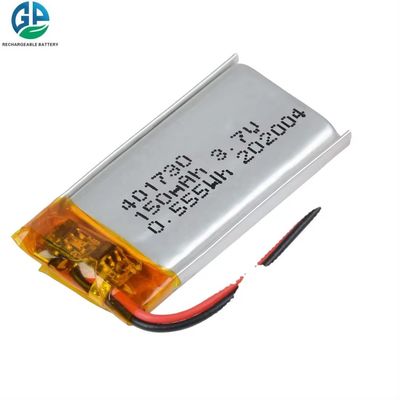

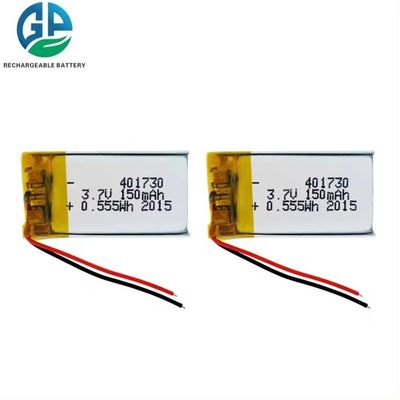

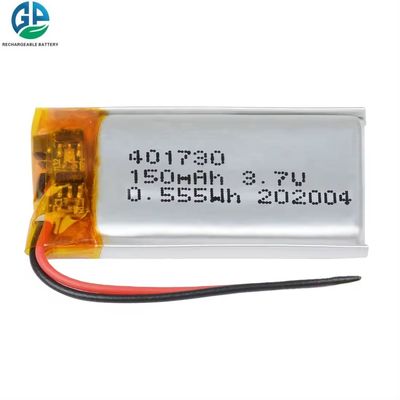

Detailed images Li Polymer 401730 150mah 3.7v lipo battery pack
Standard packaging for 3.7V lithium polymer battery pack
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
