| Model Number: | LP581013 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Parameter | Value |
|---|---|

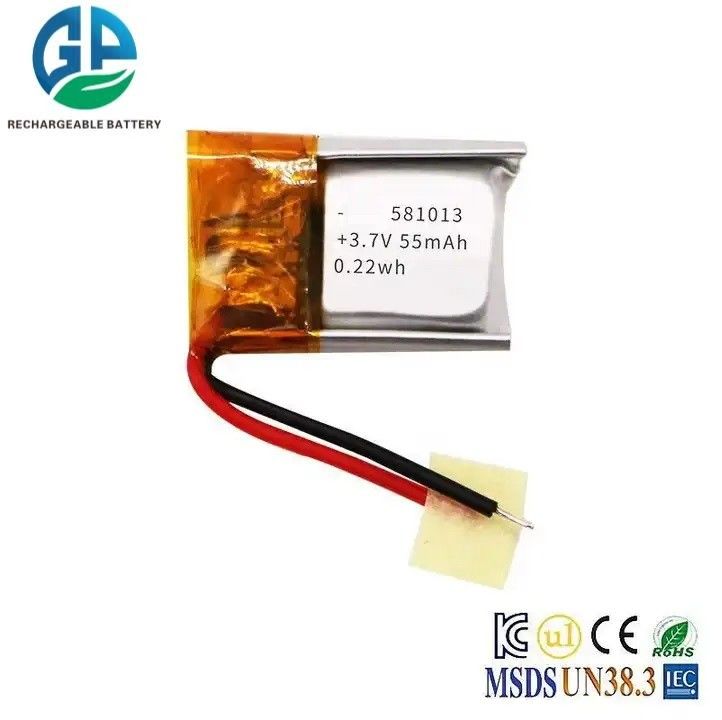

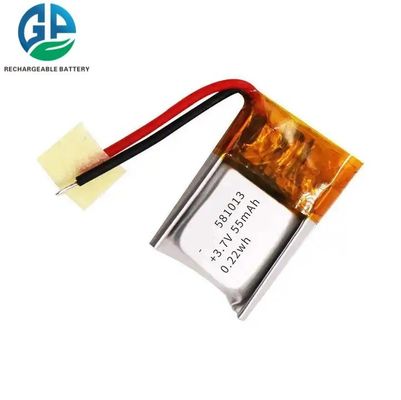

| Battery model | 581013 |
| Nominal voltage | 3.7V |
| Minimum capacity | 50mAh (0.2C discharge) |
| Charging voltage | 4.2V |
| Discharging cut-off voltage | 3.0V |
| Standard charging | 0.2C / 4.2V |
| Max charging | 1.0C / 4.2V |
| Standard discharging | 0.2C / 3.0V |
| Shipment voltage | ≥3.85V |
| Battery pack impedance | ≤60mΩ |
| Operating temperature | Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C |
| Reference standard | GB/T 18287-2013, IEC/EN61960, UL1642, KC |
Shenzhen Gold Power Energy offers over 1,000 models of lithium polymer batteries with capacities ranging from 20mAh to 5000mAh to meet various application requirements.
| Model | Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer batteries, Lithium ion batteries, LiFePO4 batteries, and customized battery packs since 2001.
|
