Li Polymer Battery
>

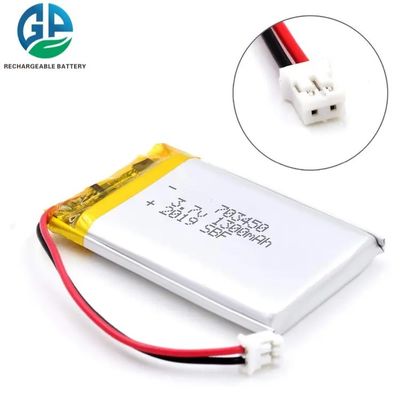

703450 3.7V 1300mAh Rechargeable Li Polymer Battery with PCM and Overdischarge Protection

703450 3.7V 1300mAh Rechargeable Li Polymer Battery with PCM and Overdischarge Protection

Brand Name: GPE
Model Number: LP703450
MOQ: 3000
Detail Information
Place of Origin:
CN
Certification:
KC,UN38.3, MSDS, IEC62133, RoHS
Capacity:
1300mAh
Size:
7.2*34.5*52mm
Discharging Temperature:
-20-60℃
Charging Current:
1C
Voltage:
3.7V
Discharging Current:
2C
Highlight:

pcm rechargeable li ion polymer battery

,

3.7v rechargeable li ion polymer battery

Product Description
703450 3.7v Rechargeable Li Ion Polymer Battery With PCM
Product Overview

Li Polymer Battery is an advanced rechargeable battery featuring lithium-based chemistry in a polymer electrolyte. It delivers superior performance with overdischarge protection at 2.75V, charging voltage up to 4.2V, charging current of 1C, and a wide discharging temperature range of -20 to 60℃. Known for its lightweight, flexible design, this battery is ideal for portable devices including smartphones, tablets, and laptops.

Key Features
  • Li Poly Battery: Short Circuit Protection: Yes, Capacity: 3000mAh, Overcharge Protection Voltage: 4.25V, Charging Temperature: 0-45℃, Charging Voltage: 4.2V
  • Lithium Poly Battery Pack: Short Circuit Protection: Yes, Capacity: 3000mAh, Overcharge Protection Voltage: 4.25V, Charging Temperature: 0-45℃, Charging Voltage: 4.2V
  • Lithium Polymer Power Source: Short Circuit Protection: Yes, Capacity: 3000mAh, Overcharge Protection Voltage: 4.25V, Charging Temperature: 0-45℃, Charging Voltage: 4.2V

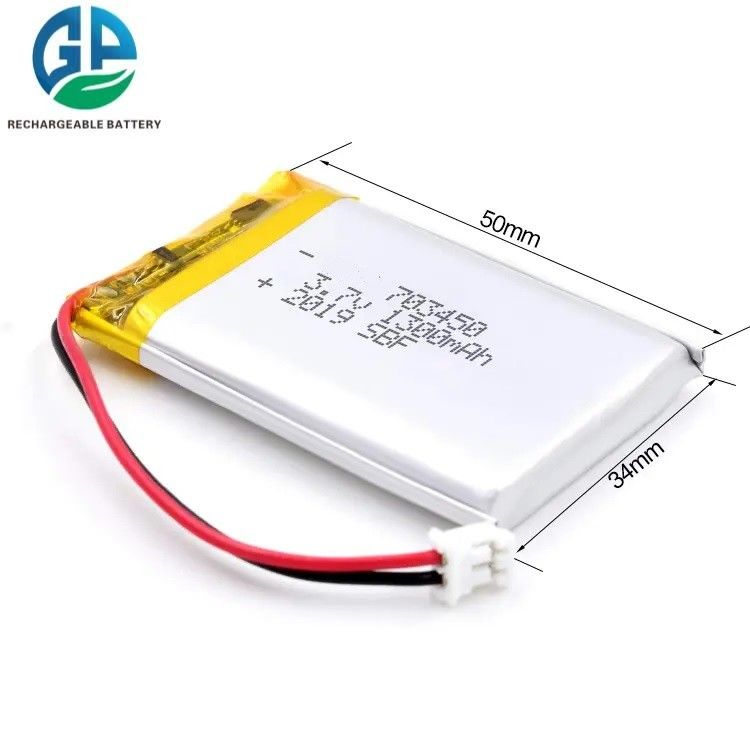

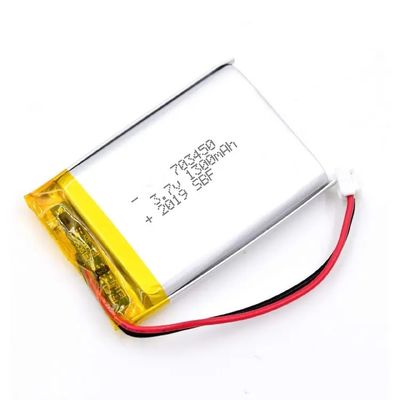

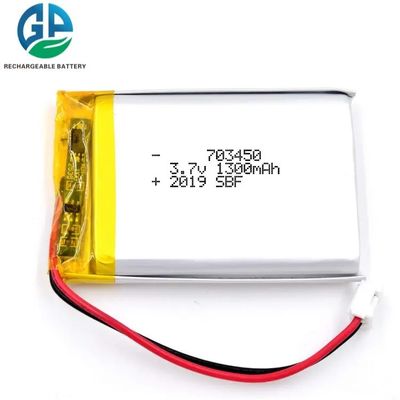

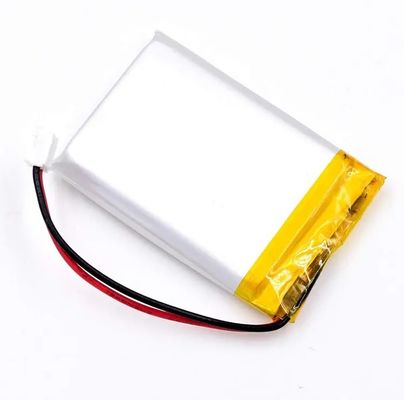

703450 Li Polymer Battery product view 703450 Li Polymer Battery technical details
Technical Specifications
PropertyValue
Short Circuit ProtectionYes
Discharging Temperature-20-60℃
Discharging Current2C
Overcharge Protection FunctionYes
TypeLi Polymer Battery
Overcharge Protection Voltage4.25V
Charging Voltage4.2V
Capacity1300mAh
Charging Current1C
Voltage3.7V
Product Details
ItemSpecification
Product Name703450 3.7v rechargeable battery with PCM for Electric piano
Battery model703450
Nominal voltage3.7V
Minimum capacity1300mAH (0.2C discharge)
Charging cut-off voltage4.2V
Discharging cut-off voltage2.75V-3.0V
Standard charging0.2C /4.2V
Max charging1.0C /4.2V
Standard discharging0.2C/2.75V-3.0V
Max discharging1.0C/2.75V-3.0V
Shipment voltage≥3.85V
Battery pack impedance≤80mΩ
Operating temperatureCharging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Storage-10℃~25℃ (12 months ≥85%)
-10℃~45℃ (6 months ≥85%)
-10℃~55℃ (1 month ≥90%)
20±5℃ recommended storage temperature
Visual InspectionNo remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage on cell surface
Reference standardGB/T 18287-2013, KC, CE, ROHS, IEC/EN62133, UL1642, MSDS, CB, PSE
Applications

The GPE Li Polymer Battery provides reliable power with short circuit protection, 2C discharging current, and 1C charging current. Featuring overdischarge protection at 2.75V, it's ideal for long-lasting power requirements.

  • Portable Electronics: Mobile phones, tablets, laptops, cameras
  • Industrial Equipment: Robots, machinery, industrial automation systems
  • Medical Devices: Pacemakers, insulin pumps, medical equipment
  • Transportation: Electric vehicles, bicycles, transportation systems
  • Consumer Electronics: Gaming systems, home appliances, toys
Customization Options
  • Brand Name: GPE
  • Discharging Current: 2C
  • Capacity: 3000mAh
  • Overdischarge Protection Voltage: 2.75V
  • Type: Li Polymer Battery
  • Short Circuit Protection: Yes

GPE's Li Polymer Battery features 2C discharging current, 3000mAh capacity, overdischarge protection at 2.75V, and short circuit protection for enhanced safety.

Technical Support & Services

Our technical team provides comprehensive support for Li Polymer Battery products including:

  • Technical questions and product information
  • Troubleshooting and diagnostic assistance
  • Software updates and upgrades
  • Technical advice and guidance
  • Product installation and setup assistance
Packaging & Shipping

Li Polymer Batteries are securely packaged using protective materials such as padded bags, cardboard boxes, or bubble wrap. All packages include proper labeling with return and receiver addresses, plus content descriptions. We use reliable carriers and provide tracking numbers for all shipments. Packages are insured to cover potential transit damages.

Frequently Asked Questions
Q1: What is the brand name of the Li Polymer Battery?
A1: The brand name of the Li Polymer Battery is GPE.
Q2: What are the features of Li Polymer Battery?
A2: Li Polymer Battery features high energy density, long cycle life, high safety, and high reliability.
Q3: What is the capacity of the Li Polymer Battery?
A3: The capacity of the Li Polymer Battery is up to 100Ah.
Q4: How long will the Li Polymer Battery last?
A4: The cycle life of the Li Polymer Battery is over 2000 times.
Q5: Is the Li Polymer Battery safe to use?
A5: Yes, the Li Polymer Battery is designed with high safety and reliability.
