| Model Number: | 801520 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
KC Rechargeable Lipo Battery 3.7V 180mAh 801520 Lithium Polymer Battery Li Polymer 3.7V Battery
| Parameter | Value |
|---|---|
| Dimension (thickness*width*length) | 8*15*20 (mm) |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 180mAh |
| Fully Charge Voltage | 4.2V |
| Ship Out Voltage | 3.85-4.1V |
| Parameter | Value |
|---|---|
| Charge Current | Standard Charging: 0.5C (90mA) Rapid Charge: 1.0C (180mA) |
| Charging Method | Charge with constant current 0.5C to 4.2V, then charge with constant voltage 4.2V until charge current is less than 0.01C |
| Standard Discharge Current | 0.2C (36mA) |
| Max. Discharge Current | 1C (180mA) |
| Discharge Cut-off Voltage | 3.0V |
| Operating Environment | Charging: 10℃~45℃ Discharging: -10℃~60℃ |
| Storage Temperature | -10℃~45℃ |
| Cell Weight | Approx: 3g |
| Battery Cycle Time | 500 times |
| Warranty | 12 months |
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

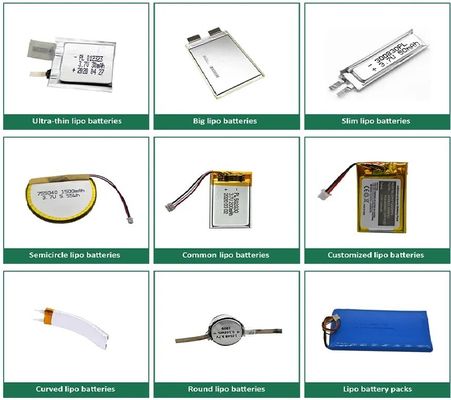

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
