| Model Number: | LP401120 |
| MOQ: | 6000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

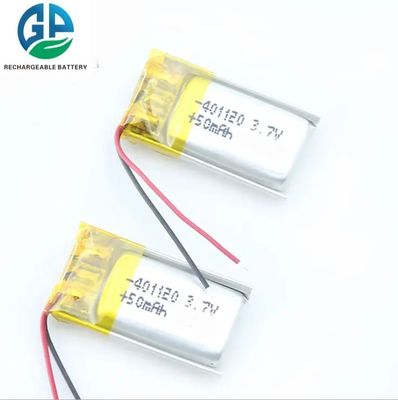

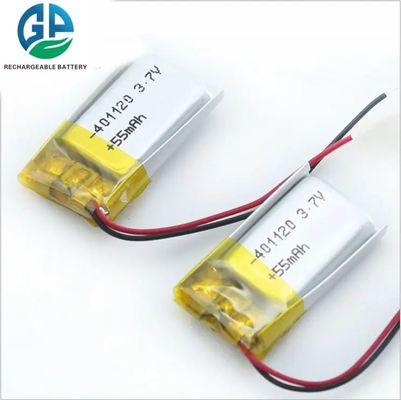

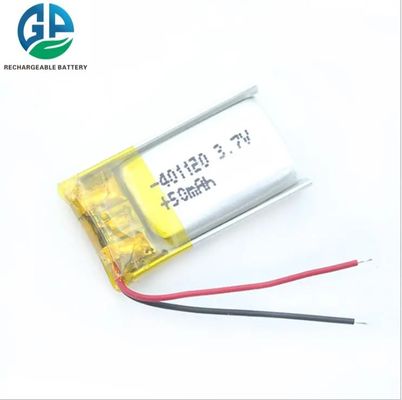

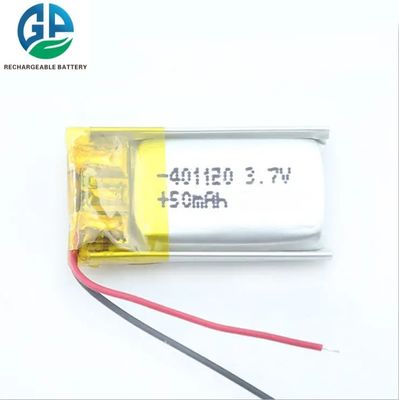

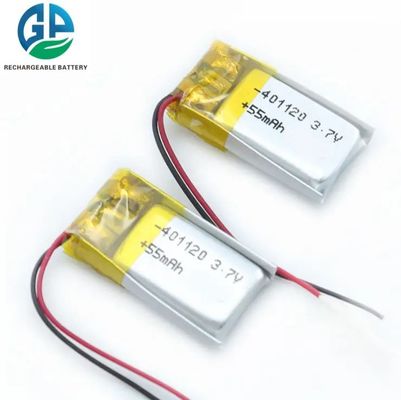

Ultra small lithium polymer 401120 rechargeable batteries widely used in:
| Rated Capacity | 50mAh |
| Voltage | 3.7V |
| Duration | 12 months |
| Operating Temperature | Discharge: -20°C to 60°C | Charge: 0°C to 45°C |
| Recharging | Yes |
| Applications | Smart Wear, Bluetooth Headphones, Mobile Digital Products |
| Wiring Definitions | Red line (P), Black line (P-) |
| Standard Charge Current | 0.2C/0.5C |
| Maximum Charge Current | 1C |
| Open Circuit Voltage | 3.7~3.9V |
| Cut Off Voltage | 2.75V/4.2V |
| Cycle Life | 500 Times |
| Product Advantages | Custom development, factory direct sales, brand core, protection board independent R&D, mature, stable and reliable production process |
Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity ranging from 20mAh to 5000mAh to meet various application requirements.
| Model | Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been offering various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery packs since 2001.
