| Model Number: | LP606090 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| Parameter | Specification |
|---|---|
| Type | Lithium polymer battery |
| Nominal voltage | 3.7V |
| Nominal Capacity | 5000mAh |

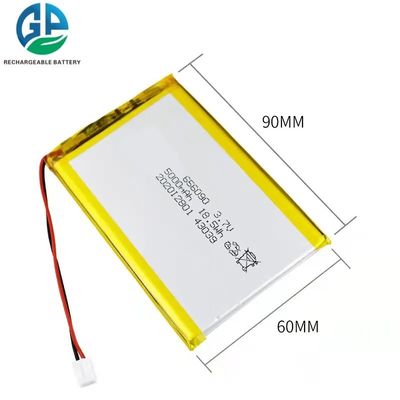

| Dimension | 60*90mm |
| Model | 656090 |
| Max. charge current | 1.0C |
| Max. discharge current | 1.0C |
| Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
| Standard Charging method | 0.5C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to ≤0.05C |
| Charging time | Standard Charging: 3.0 hours(Ref.) Rapid charge: 2 hours(Ref.) |
| Discharge cut-off voltage | 2.45V~3.0V |
| Operating temperature | -20°C~+60°C |
| Storage temperature | 25°C |
Shenzhen Gold Power Energy offers over 1,000 lithium polymer battery models with capacities ranging from 20mAh to 5000mAh to meet various application requirements.
| Model | Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been providing various batteries including Li polymer batteries, lithium ion batteries, LiFePO4 batteries, and customized battery packs since 2001.
