| Model Number: | 903048 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

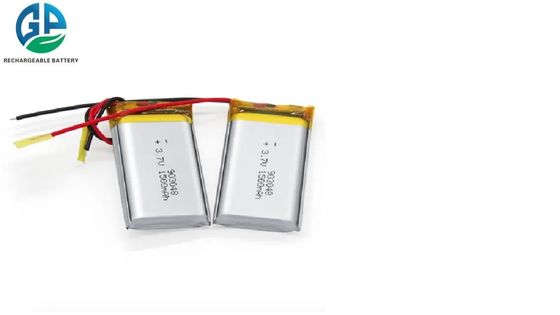

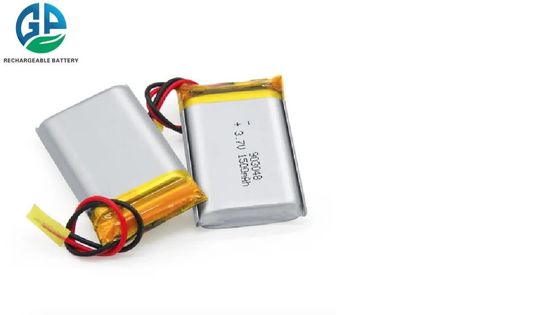

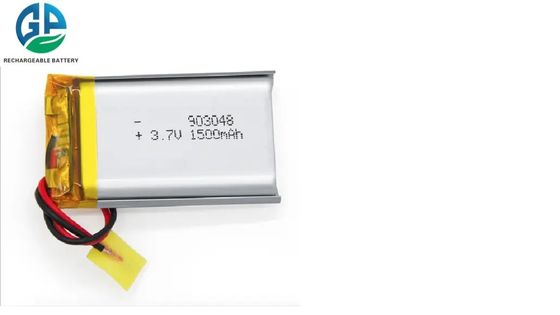

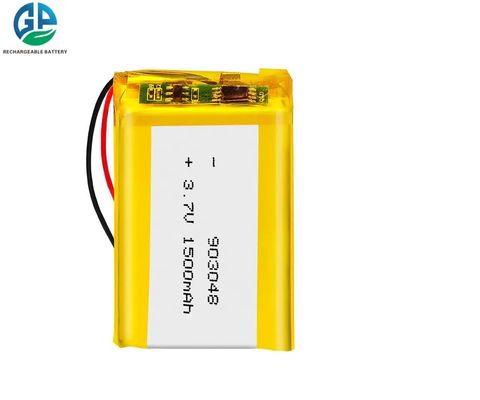

KC Lipo Battery Pack 903048 3.7v 1000mah 110807 3.7v 1000mah Lipo Battery
| No. | Item | lipo rechargeable battery pack Specifications |
| 1 | Model | 903048 |
| 2 | Size | 9.0*30*48mm(thickness*width*length) |
| 3 | Charge voltage | 4.2V |
| 4 | Nominal voltage | 3.7V |
| 5 | Nominal capacity | 1500mAh |
| 6 | Charge current | Standard Charging:0.5C Rapid charge:1.0C |
| 7 | Standard Charging method | 0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C |
| 8 | Charging time | Standard Charging:3.0hours(Ref.) Rapid charge:2hours(Ref.) |
| 9 | Max.charge current | 1C |
| 10 | Max.discharge current | constant current1C ,transient peak current 2C |
| 11 | Discharge cut-off voltage | 2.45V or 3.0V |
| 12 | Operating temperature | -20℃ to 60℃ |
| 13 | Storage temperature |
25℃ |
Standard packaging for 7.4V lithium polymer battery pack
Why Choose us:
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
|
