| Model Number: | 903048 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |
| No. | Item | Specifications |
|---|---|---|

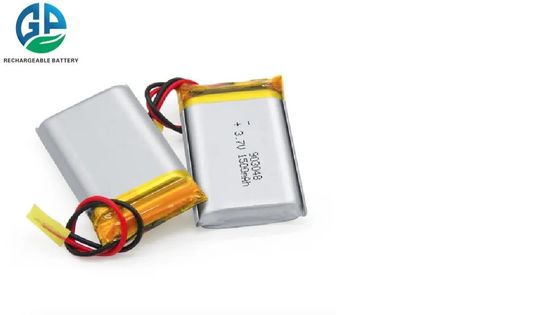

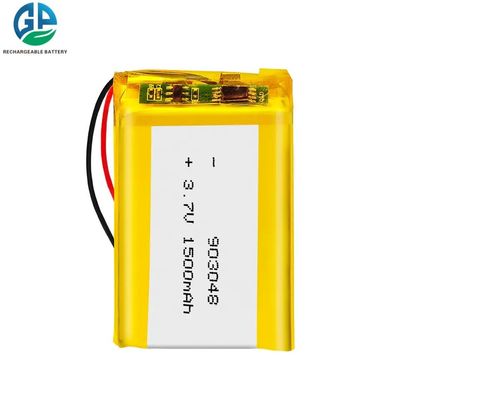

| 1 | Model | 903048 |
| 2 | Size | 9.0×30×48mm (thickness×width×length) |
| 3 | Charge Voltage | 4.2V |
| 4 | Nominal Voltage | 3.7V |
| 5 | Nominal Capacity | 1500mAh |
| 6 | Charge Current | Standard Charging: 0.5C Rapid Charge: 1.0C |
| 7 | Standard Charging Method | 0.5C (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current declines to ≤0.05C |
| 8 | Charging Time | Standard Charging: 3.0 hours (Ref.) Rapid Charge: 2 hours (Ref.) |
| 9 | Max. Charge Current | 1C |
| 10 | Max. Discharge Current | Constant Current 1C, Transient Peak Current 2C |
| 11 | Discharge Cut-off Voltage | 2.45V or 3.0V |
| 12 | Operating Temperature | -20℃ to 60℃ |
| 13 | Storage Temperature | 25℃ |
