Li Polymer Battery
>
803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power

803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power

Brand Name: GPE
Model Number: LP803035
MOQ: 5000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
KC,CB,UN38.3, MSDS, IEC62133, RoHS
Voltage:
3.7V
Capacity:
800mAh
Max Charge Voltage:
4.2V
Cut-off Voltage:
2.75V
Battery Dimensions:
8*30*35mm
Weight:
28g
Supply Ability:
50'000Pieces daily
Highlight:

800mah Lipo Battery

,

803035 Lipo Battery

,

CB Lithium Polymer Rechargeable Battery

Product Description
803035 3.7V 7.4V 800mAh Lithium Polymer Rechargeable Battery KC CB Certification
Product Overview

803035 3.7V 800mAh Lipo Battery Power Bank with KC CB Certification. This small size mini Lithium Polymer Battery offers reliable power in a compact form factor.

Technical Specifications
NO. Item General Parameter
1 Type Lithium polymer Battery
2 Model 3.7v 800mah 803035PL
3 Color Silver/as your requirement
4 Standard capacity(0.2C5A) 800mAH
5 Rated voltage 3.7V
6 Max.charge voltage 4.2V
7 Cut-off voltage 2.75V
8 Standard charge current < 0.5C/ customized
9 Max continuous discharge current < 1C / customized
10 Peak discharge current <3C/ customized
11 Battery dimension 8*30*35mm with PCB
12 Total weight (Approx.) about 28g
13 Standard charging temperature 0℃~45℃
14 Discharge temperature -20℃~60℃
15 Storage temperature -20℃~45℃
16 Cycle life >500 times
17 Warranty 12 month
18 Option Connectors/other Capacity

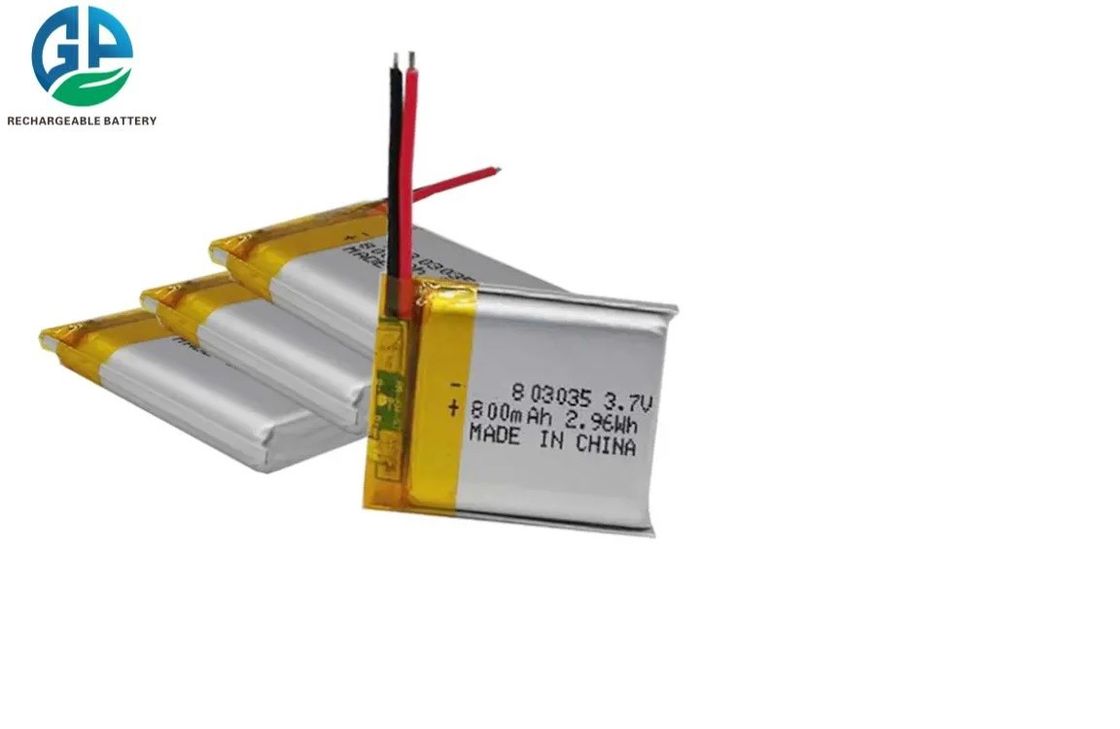

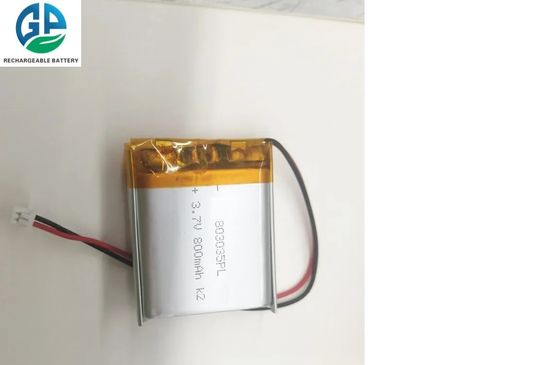

Product Images
803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power 0
Standard Packaging
803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power 1
Frequently Asked Questions

Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.

Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.

Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack. There is wrong connection inside the battery pack. There is abnormally of electronic components and/or PCB inside the battery pack. There is failure in charger. Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

Lithium Polymer Battery Advantages
  • Higher energy density: Lithium polymer batteries have a higher energy density than lithium ion batteries, meaning they can hold more charge in a smaller package.
  • Faster charging: Lithium polymer battery packs can be charged faster than lithium ion batteries. They also have a longer shelf life and do not require as much maintenance.
  • More stable charging: Lithium polymer batteries are more stable during charging than lithium ion batteries. They do not experience the same level of voltage fluctuations or charge peaks.
  • Lighter weight: Lithium polymer batteries are generally lighter weight than lithium ion batteries, making them more suitable for power-intensive devices.
Research & Development

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power 2
Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power 3
Factory Overview

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.

803035 3.7V 800mAh Lithium Polymer Battery with KC CB Certification for Reliable Power 4
