| Model Number: | LP501743 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

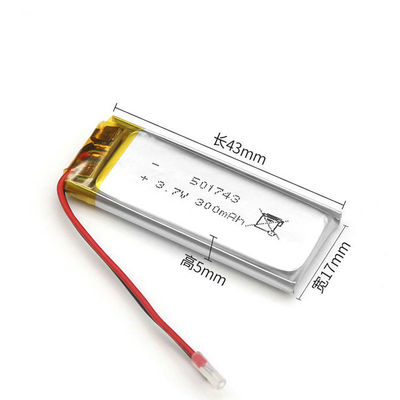

Li polymer battery 501743 3.7V 300mAh lithium rechargeable battery pack for medical devices.
| Item | Characteristics | Remarks |
|---|---|---|
| Nominal Capacity | Minimum: 300mAh Typical: 300mAh |
Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C |
| Nominal Voltage | 3.7V | |
| Charging Cut-off Voltage | 4.2V | |
| Discharge Cut-off Voltage | 3.0V | |
| Max Constant Charging Current | 300mA(1.0C) | |
| Maximum Continuous Discharging Current | 600mA(2.0C) | |
| Operating Temperature | Charge: 0~45℃ Discharge: -20~60℃ |
|
| Storage Temperature | -20~45℃ for 1 Month -20~35℃ for 6 Months |
|
| Weight | 7g | Approximate value |
| Storage Voltage | 3.80-3.90V |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have offered various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
