Lithium Polymer Battery Pack

553640 Rechargeable 3.7V 850mAh Lithium Polymer Battery Pack with 500 Times Cycle Life

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

553640 Rechargeable 3.7V 850mAh Lithium Polymer Battery Pack with 500 Times Cycle Life

Model Number:	553640
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, IEC62133, RoHS

Voltage:

Capacity:

850mAh

Cycle Life:

500 Times

Weight:

16.2g

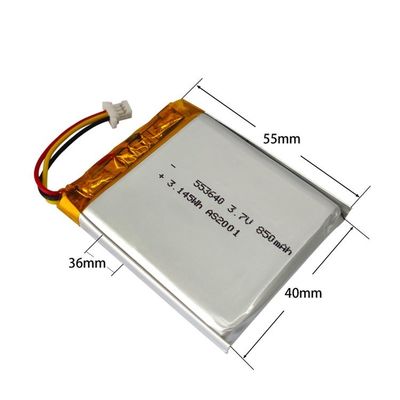

Dimensions:

5.5*36*40mm

Max Charge Voltage:

Supply Ability:

50'000Pieces daily

Highlight:

553640 Rechargeable Lithium Ion Battery Pack

3.7V 850mAh Lithium Ion Battery Pack

553640 Li Ion Polymer Battery

Product Description

553640 Rechargeable Lithium Ion Battery Pack 3.7V Li Ion Polymer Battery

Product Overview

3.7V 850mAh 553640 Lithium Polymer Battery Pack with 500 Cycle Life

KC 3.7V 800mAh Lithium Polymer 803035 Li-Polymer Battery

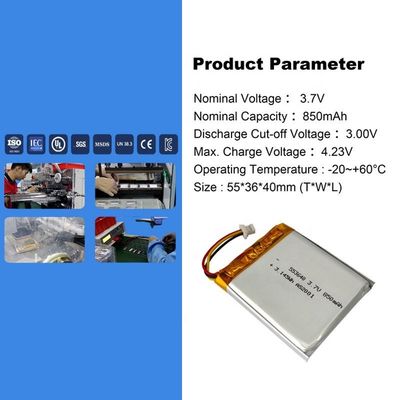

Technical Specifications

NO.	Item	General Parameter
1	Type	Lithium polymer Battery
2	Model	3.7v 850mah 553640PL
3	Color	Silver/as your requirement
4	Standard capacity(0.2C5A)	850mAH
5	Rated voltage	3.7V
6	Max.charge voltage	4.2V
7	Cut-off voltage	2.75V
8	Standard charge current	< 0.5C/ customized
9	Max continuous discharge current	< 1C / customized
10	Peak discharge current	<3C/ customized
11	Battery dimension	83035mm with PCB
12	(Approx.)Total weight(Approx.)	about 28g
13	Standard charging temperature	0℃~45℃
14	Discharge temperature	-20℃~60℃
15	Storage temperature	-20℃~45℃
16	Cycle life	>500 times
17	Warranty	12 month
18	Option	Connectors/other Capacity

Applications

Telecommunication: cellular phone, web phone, interphone, earphone
Portable office devices: Notebook, PDA, portable electrograph, portable printer
Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine
Illuminate devices: miner lamp, searchlight
Others: toys, models

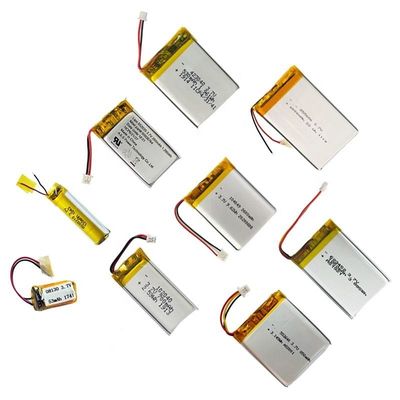

Certified Lithium Polymer Batteries

Model	Voltage	Capacity	Certificates
252940	3.7V	260mAh	UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS
301318	3.7V	50mAh	KC/CB/UN38.3/MSDS
301525	3.7V	80mAh	CB/KC/UN38.3
302540	3.7V	280mAh	KC/CE/FCC/ROHS/UN38.3/MSDS
303030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
303450	3.7V	500mAh	KC/CE/80℃ high temperature report/CQC
321618	3.7V	75mAh	KC/IEC62133/CE/UN38.3/MSDS
331422	3.7V	80mAh	KC/CE/PSE/UN38.3/MSDS
351325	3.7V	90mAh	KC/ROHS/FCC/UN38.3/MSDS
351422	3.7V	80mAh	KC
380926	3.7V	60mAh	KC/IEC62133/UN38.3/MSDS
400920	3.7V	55mAh	UL/KC/MSDS
401020	3.7V	55mAh	KC/CE
401020	3.7V	60mAh	KC
401025	3.7V	70mAh	KC/CE
401119	3.7V	55mAh	KC/CE
401121	3.7V	55mAh	KC/IEC62133/ROHS/UN38.3/MSDS
401214	3.7V	50mAh	KC/CE
401230	3.7V	120mAh	UL/KC/CE/ROHS/UN38.3/MSDS
402030	3.7V	185mAh	UL/KC/IEC62133/CE/FCC/UN38.3/MSDS
402525	3.7V	250mAh	KC/CE
403030	3.7V	300mAh	KC/CE/UN38.3/MSDS
432526	3.8V	320mAh	KC/CB/IEC62133/UN38.3/MSDS
451220	3.7V	80mAh	KC
481153	3.7V	300mAh	KC/CE/UN62133/UN38.3/MSDS
481159	3.7V	300mAh	KC/CE/EN62133/UN38.3/MSDS
501012	3.7V	45mAh	KC/CE
501020	3.7V	80mAh	UL/KC/IEC62133/CE/UN38.3/MSDS
501040	3.7V	150mAh	KC
501130	3.7V	150mAh	UL/KC/CB/CE/ROHS/UN38.3/MSDS
501220	3.7V	100mAh	UL/KC/CE/ROHS/MSDS
501235	3.7V	160mAh	KC/CE/ROHS/MSDS
501332	3.7V	200mAh	KC/ROHS/MSDS
501535	3.7V	240mAh	KC/CE
502030	3.7V	250mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
502035	3.7V	300mAh	UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS
503035	3.7V	500mAh	UL/KC/IEC62133/CE/UN38.3/MSDS
503048	3.7V	750mAh	UL/KC/CE/ROHS/80℃ high temperature test/MSDS
503450	3.7V	1000mAh	UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
504065	3.7V	1500mAh	UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
522728	3.7V	460mAh	KC
551245	3.7V	250mAh	UL/KC/IEC62133/EN62133/PSE/FCC/ROHS
553443	3.7V	900mAh	KC/PSE/UN38.3/MSDS
555056	3.7V	2100mAh	KC
601430	3.7V	210mAh	KC/CE/ROHS
601750	3.7V	500mAh	KC
602030	3.7V	300mAh	UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS
602035	3.7V	400mAh	KC/CE
602040	3.7V	450mAh	UL/KC/CE/ROHS
602045	3.7V	500mAh	KC/CE/FCC
602540	3.7V	600mAh	KC/FCC/IEC62133/UN38.3/MSDS
603030	3.7V	500mAh	KC/CE/EN62133/ROHS/UN38.3/MSDS
603258-4S	14.8V	1200mAh	KC/CB/IEC62133
603450	3.7V	1100mAh	UL/KC/CE/IEC62133/UN38.3/MSDS
603450	3.7V	1200mAh	UL/CE/KC
651248	3.7V	330mAh	KC/EN62133
653040	3.7V	800mAh	KC/MSDS
702030	3.7V	380mAh	KC/CE
702035	3.7V	380mAh	KC
702040	3.7V	500mAh	KC/CE
702040	3.7V	600mAh	KC/MSDS
702050	3.7V	750mAh	KC/CE
702525	3.7V	400mAh	KC
702535	3.7V	600mAh	KC
703045	3.7V	900mAh	KC/UN38.3/MSDS
751818	3.7V	220mAh	UL/KC/EN62133/ROHS/UN38.3/MSDS
801350	3.7V	500mAh	KC/UN38.3/MSDS
801630	3.7V	300mAh	KC/CE
802025	3.7V	400mAh	KC/UN38.3/MSDS
802540	3.7V	800mAh	KC/FCC/CE/ROHS
803040	3.7V	1000mAh	UL/KC/CE/ROHS/UN38.3/MSDS
803048	3.7V	1200mAh	KC/CE
804459	3.7V	2400mAh	KC/CB/UN38.3/MSDS
8233125	3.7V	5500mAh	KC/UN38.3/MSDS
901332	3.7V	300mAh	KC/CE
902030	3.7V	480mAh	KC/MSDS
902030	3.7V	500mAh	KC/CE/ROHS/UN38.3/MSDS
902040	3.7V	700mAh	KC/CE
902630	3.7V	700mAh	KC
972829	3.7V	850mAh	KC
102050	3.7V	1000mAh	UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS
103035	3.7V	1100mAh	KC/CE
103040	3.7V	1200mAh	CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS
103450	3.7V	1800mAh	UL/KC
105050	3.7V	3000mAh	CB/KC/IEC62133/CE

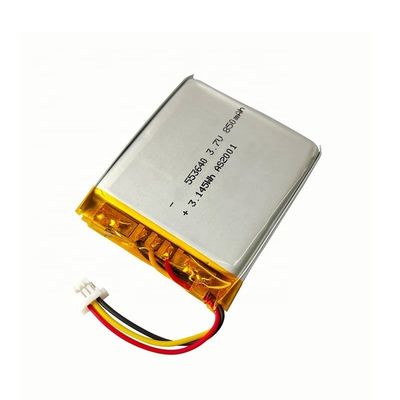

Product Images

Standard Packaging

Why Choose Us

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applied
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R & D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Certificates

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
