| Model Number: | LP702560 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

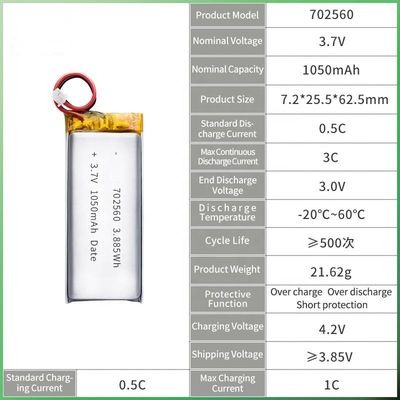

| Product Name | 3.7V 1050mah 3C battery |
| Brand | JH or using customers logo |
| Battery Type | Lithium polymer battery |
| Whether Rechargeable | Yes |
| Warranty | 1 Years |
| Model | 702560 |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 1050mAh 3C Discharge |

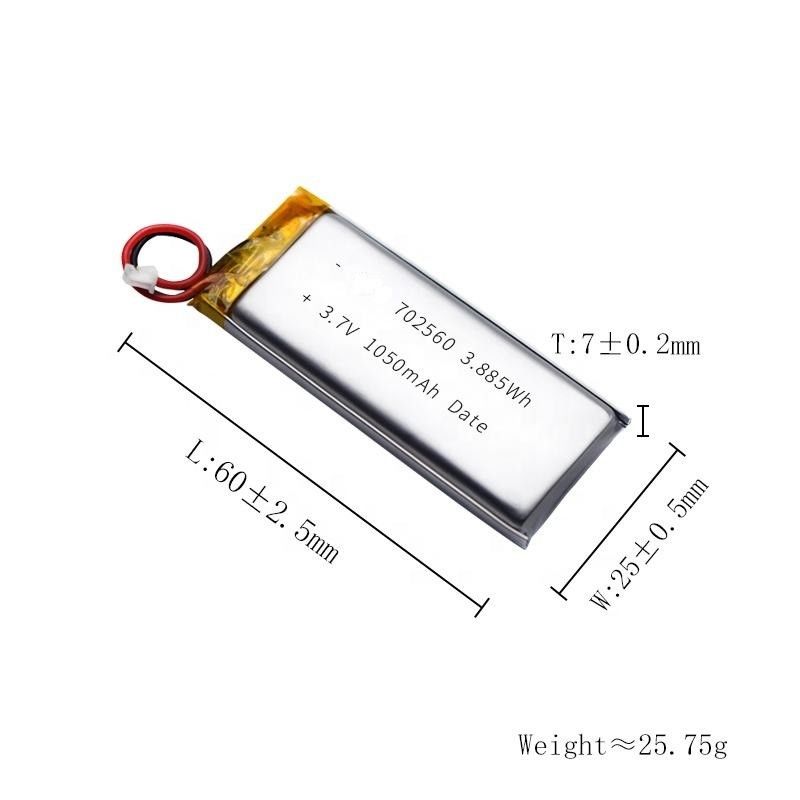

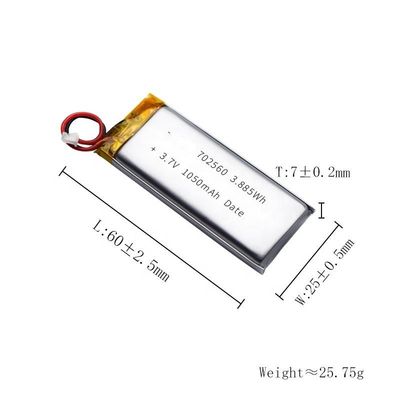

| Max Size with PCB and Wire and Connector | Thickness: 7.0±0.2mm Width: 25±0.5mm Length: 60+3±0.5mm |
| Charge Current | Standard Charging: 0.5C Rapid charge: 1.0C |
| Max charge current | 1.0C |
| Max Discharge current | 5 C |
| Operating Temperature | Charge: 0-45°C Discharge: -20°C to 60°C |
| Quality | Excellent Raw Material, High Quality Battery, High Product Consistency, No Leakage & No rusted |
| Storage Voltage and Storage Temperature | 3.8V-3.95V -20°C to 40°C for 1 month; -10°C to 35°C for 6 months |
| Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity |
| Package | Industrial package (boxes or blister tray) or customers requirements |
| Model | Cell Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
|
