| Model Number: | 553640 |
| MOQ: | 2000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

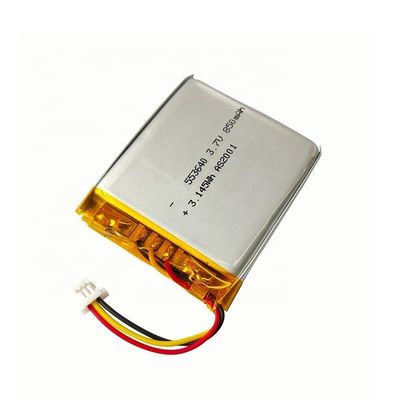

KC IEC62133 approved 3.7 volt li polymer rechargeable batteries 850mAh customized lithium ion polymer battery
Safety Instructions:
| Item | Rating | Note |
|---|---|---|
| Capacity | Typical: 850mAh Minimum: 820mAh |
Discharge: 0.2CmA cut off Voltage: 3V for cell |
| Nominal Voltage | Average 3.7V | Discharge: 0.2CmA cut off Voltage: 3V for cell |
| AC Impedance Resistance | ≤80mΩ | |
| Discharge Cut-off Voltage | 3.00V | |
| Charge Current | 170mA | Standard Charge |
| Charge Voltage | 4.2V | |
| Max. Charge Voltage | 4.23V | |
| Charge Time | Approx 6.0h | Charge: 0.2CmA |
| Max. Charge Current | 850mA | 1.0CmA |
| Max. Discharge Current | 850mA | |
| Weight | Approx 16.2g | |
| Operating Temperature | Charge: 0~+45°C Discharge: -20~+60°C |
|
| Storage Temperature | Less than 1 month: -20~+45°C Less than 3 months: -20~+35°C |
Recommended storage temperature: 20°C, at the shipment state |
| Battery Model | Battery Cell Dimension | Battery Pack With PCM Size | Battery Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |

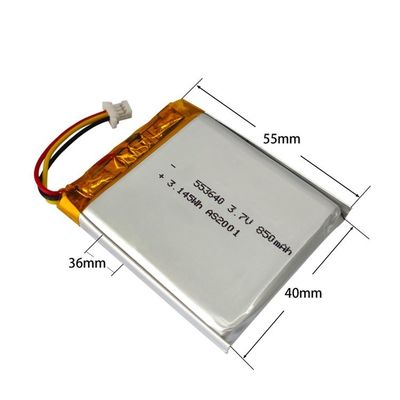

| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
