| Model Number: | LP502030 |
| MOQ: | 3000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

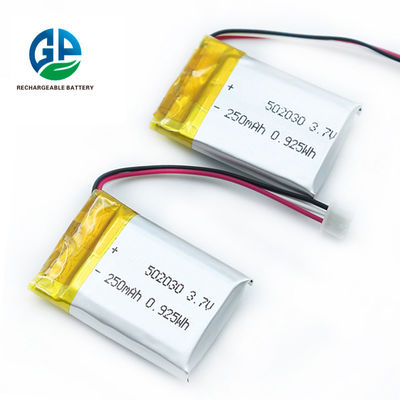

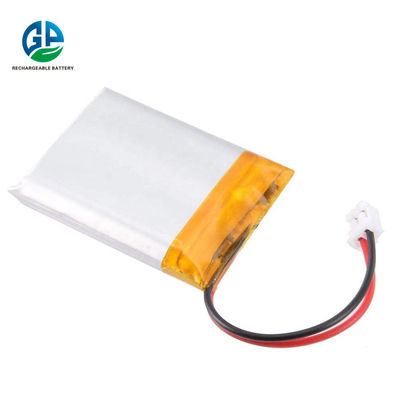

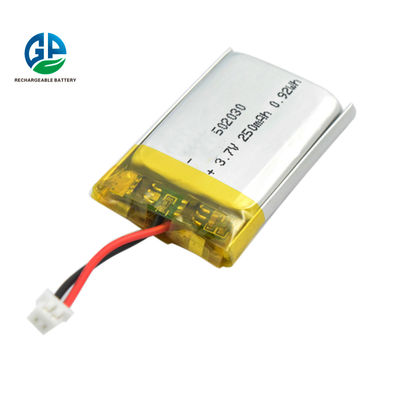

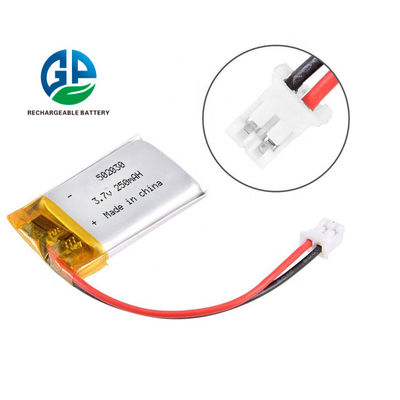

High-performance 3.7V 250mAh lithium polymer rechargeable battery pack with dimensions 5.0×20.0×30.0mm, designed for reliable power in various applications.
| Parameter | Value |
|---|---|
| Dimensions (thickness×width×length) | 5.0×20.0×30.0mm |
| Charge Voltage | 4.2V |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 250mAh |
| Fully Charge Voltage | 4.2V |
| Ship Out Voltage | 3.85-4.1V |
| Parameter | Value |
|---|---|
| Charge Current | Standard: 0.5C (125mA) Rapid: 1.0C (250mA) |
| Charging Method | Constant current 0.5C to 4.2V, then constant voltage 4.2V until current < 0.01C |
| Standard Discharge Current | 0.2C (50mA) |
| Max. Discharge Current | 1C (250mA) |
| Discharge Cut-off Voltage | 3.0V |
| Operating Environment | Charging: 10℃~45℃ Discharging: -10℃~60℃ |
| Storage Temperature | -10℃~45℃ |
| Cell Weight | Approx. 5g |
| Battery Cycle Life | 500 cycles |
| Warranty | 12 months |
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been providing various batteries including lithium polymer batteries, lithium ion batteries, LiFePO4 batteries, and customized battery packs since 2001.
