| Model Number: | LFP51.2V200 |
| MOQ: | 1pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |
48V 400AH 20KWh LiFEPO4 Battery Storage energy storage OFF GRID Solar Power Supply system
|
All in one Energy Storage System
|
Battery part
|
Inverter part
|
|||
|
Capacity
|
Output voltage
|
Input voltage
|

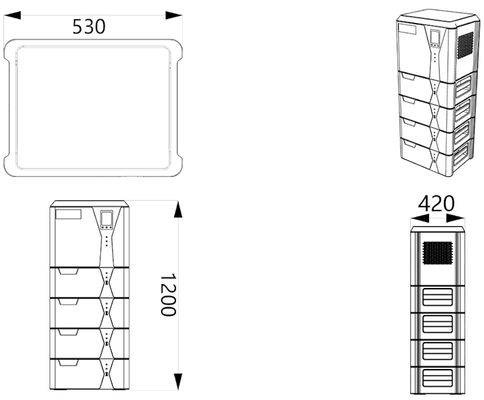

Dimension L*W*H
|
Battery spec:
51.2V 100AH
MAX charge cuttent:
100A
MAX charge voltage
54.8v
MAX disghrage current
100A
Dimension L*W*H
522*420*205mm
|
Waveform:
Pure sine wave
Rated power:
5500VA/5500W
Surge Power:
11000VA
|
|
5KWh
|
220V/110V
|
AC:220V DC:63V
|
522*420*805mm
|
||
|
10KWh
|
220V/110V
|
522*420*1010mm
|
|||
|
15KWh
|
220V/110V
|
522*420*1215mm
|
|||
|
20KWh
|
220V/110V
|
522*420*1420mm
|
|||
|
25KWh
|
220V/110V
|
522*420*1625mm
|
|||
|
30KWh
|
220V/110V
|
522*420*1830mm
|
|||

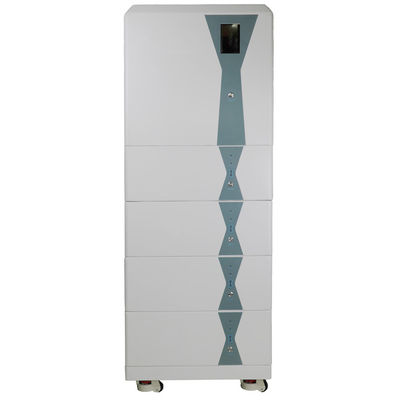

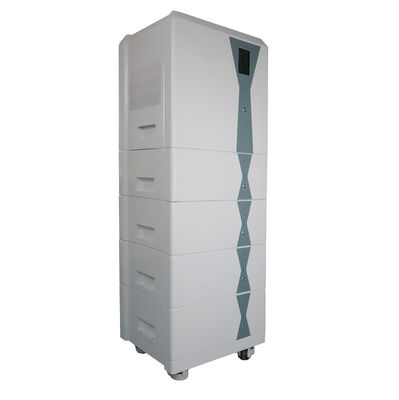

Home use 10KWH 15KWH 20KWH 25KWH stackable Solar Energy storage Battery
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
