| Model Number: | LFP51.2V300 |
| MOQ: | 1pieces |
| Packaging Details: | Carton box |
| Payment Terms: | T/T |

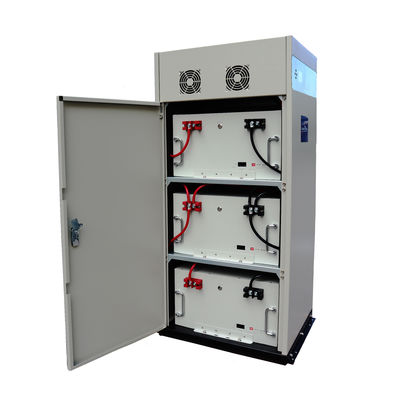

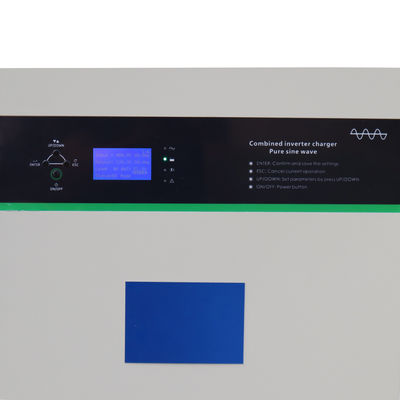

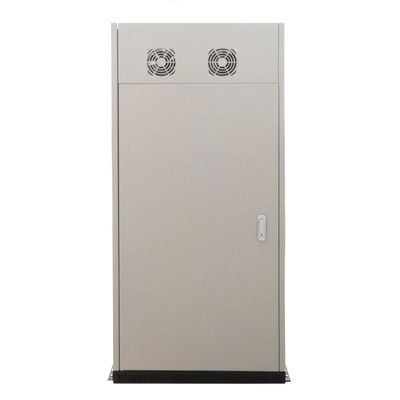

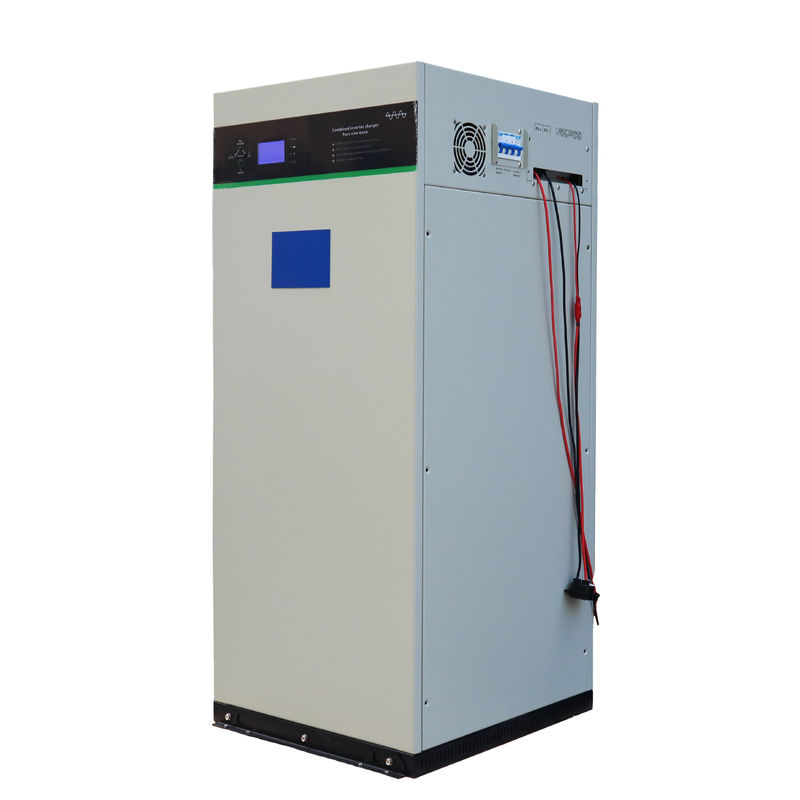

48V 300AH 15KWh LiFEPO4 Battery Storage energy storage OFF GRID Solar Power Supply system
|
Input
|
|
|
Input voltage (DC)
|
51.2V
|
|
Rated output voltage
|
220VAC
|
|
Rated output voltage
|
154-265VAC
|
|
Input frequency
|
50-60HZ automatic adaptation
|
|
Output
|
|
|
Rated power
|
4000W
|
|
The output voltage
|
220VAC
|
|
Output frequency
|
50-60HZ
|
|
Output waveform
|
Pure sine wave
|
|
Conversion time AC/DC
|
<8ms
|
|
Conversion time DC/AC
|
<8ms
|
|
Output voltage regulation
|
10%rms
|
|
Battery
|
|
|
Battery Type
|
Lithium iron phosphate 16 strings
|
|
recharging current
|
30A
|
|
Battery overvoltage protection voltage
|
64V
|
|
Battery overvoltage protection recovery voltage
|
60V
|
|
Battery undervoltage alarm voltage
|
43.2V
|
|
Battery undervoltage protection voltage
|
42.4V
|
|
Battery undervoltage protection recovery voltage
|
48V
|
|
Alarm
|
|
|
Low battery alarm
|
Sound alarm-tweet every second
|
|
Overload alarm
|
Audible alarm-continuous beep
|
|
Fault
|
Audible alarm-continuous beep
|
|
Solar charging
|
|
|
Maximum PV open circuit voltage
|
150V (the lowest temperature) 138V (25°C)
|
|
Rated charging current
|
100A
|
|
Charging voltage
|
58.4V
|
|
Tracking efficiency
|
99.50%
|
|
Conversion efficiency
|
97%
|
|
Environment
|
|
|
Temperature
|
0~40P
|
|
Humidity
|
0%-95%, no condensation
|
Cabinet Solar Energy storage Battery 51.2V 300Ah rechargeable Lifepo4 battery pack
Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:
| Lead Acid Replacement LiFePO4 Battery Pack | |||||
|
Voltage
|
Typical Capacity | Charge | Discharge | Dimension (mm) with case | Weight(Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
Lifepo4 rechargeable battery packs for other applications.
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
|
