Lithium Polymer Battery Pack
>

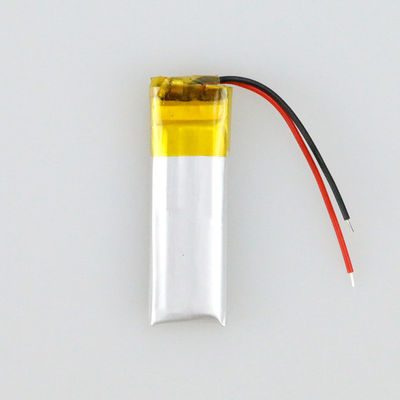

401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset

401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset

Brand Name: GPE
Model Number: LP401030
MOQ: 5000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Battery Type:
Lithium Polymer Battery Pack
Voltage:
3.7V
Capacity:
80mAh
Cycle Life:
500times
Size:
4*10*32mm
Weight:
5g
MOQ:
5000pcs
Warranty:
1 Year
Lead Time:
15-20days
Application:
Digital Products
Supply Ability:
50'000Pieces daily
Highlight:

401030 Lithium Polymer Battery

,

Lithium Polymer Battery 3.7V 80mAh

,

Bluetooth Headset 401030 Battery

Product Description

Lithium Polymer Battery 3.7V Lipo Battery 401030 80mAh For Bluetooth Headset



Item Rating Note
3.1 Capacity Typical 80mAh

Discharge:0.2CmA

cut off Voltage:3.0V for cell

Minimum 78mAh
3.2 Nominal Voltage Average 3.7V

Discharge:0.2CmA

cut off Voltage:3.0V for cell

3.3 AC Impedance Resistance ≤200mΩ
3.4 Discharge Cut-off Voltage 3.00V
3.5 Charge Current 40 mA Standard Charge
3.6 Charge Voltage 4.2V
3.7 Max. Charge Voltage 4.23V
3.8 Storage humidity < 75%RH Hygrometer
3.9 Max. Charge Current 78mA 1.0CmA
3.10 Max. Discharge Current 78mA 1.0 CmA
3.11 Weight Approx 3.2g

3.12 Operating

Temperature

Charge 0~+45°C
Discharge -20~+60°C

3.13 Storage

Temperature

less than 1 month -20~+45°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months -20~+35°C



Other hot-sale Li polymer battery pack , with stocks can accept mini order:



Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.



Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.



Following are some of hot-sale models for your reference.



Model Cell Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1200mAh
656090 6.5*60*90mm 6.5*60*92.5mm 3.7V 5000mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
855465 8.5*54*65mm 8.5*54*65mm 3.7V 4000mAh
863040 8.6*30*40mm 8.8*30*42.5mm 3.7V 1000mAh
904060 9*40*60mm 9.2*40*62.5mm 3.7V 2500mAh
883760 8.8*37*60mm 9*57*51.6mm 3.7V 2000mAh
103048 10.2*30*48mm 10.2*30*50.5mm 3.7V 1500mAh
103040 10.2*30*40mm 10.2*30*42.5mm 3.7V 1200mAh
114261 11*42*61mm 11*42*63.5mm 3.7V 3400mAh
122773 12*27*73mm 12*27*75.5mm 3.7V 2400mAh

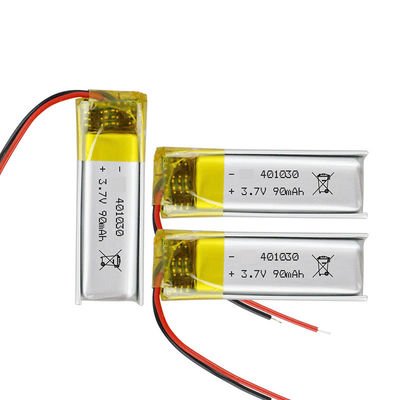

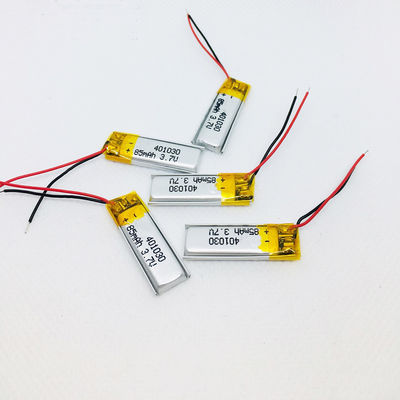

Images for Ultra small Lithium ion Polymer 3.7V 401030 180mah li polymer battery pack

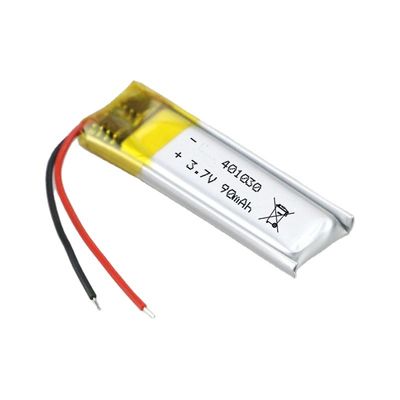

401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 0401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 1

Standard packaging for 3.7V 7.4V lithium polymer battery pack



401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 2

FAQ:



Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

There is wrong connection inside the battery pack.

There is abnormally of electronic components and/or PCB inside the battery pack.

There is failure in charger.

Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 3



Quality Control



401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

401030 Lithium Polymer Battery 3.7V 80mAh For Bluetooth Headset 5



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.
