| Model Number: | LP18350 |
| MOQ: | 5000pieces |
| Packaging Details: | Bulk packing |
| Payment Terms: | T/T |

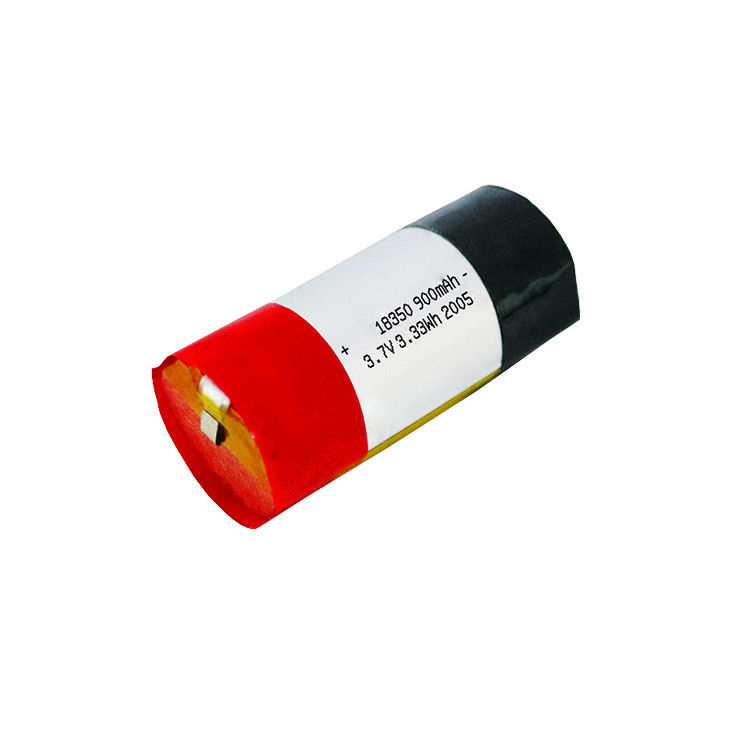

High-performance 18350 lithium polymer battery featuring 10C high discharge rate and 900mAh capacity, specifically designed for e-cigarette applications and power tools.
| Specification | Details |
|---|---|
| Model Number | 18350 lithium polymer battery |
| Application | Power Tools, Consumer Electronics, E-cigarette, flashlight, juicer |
| Battery Size | 18*35mm |
| Certification | UN38.3/MSDS/ISO9001 |
| Place of Origin | China |
| Type | Li-polymer |
| Std. Working | 0.2C |
| Charging Voltage | 4.2V |
| PCB Protection (Optional) | Over-charge/over-discharge/short-circuit, over-temperature |
| Max Continuous Discharge | 10C high rate |
| Warranty | 12 months |
Shenzhen Gold Power Energy offers a complete range of high discharging rate lithium polymer batteries with capacity from 100mAh to 2000mAh to meet various application requirements.
| Cell Model | Capacity (mAh) | Voltage (V) | Size (mm) | Peak Current |
|---|---|---|---|---|
| 08500 | 240 | 3.7 | 8.3×51 | 15C |
| 08500 | 260 | 3.7 | 8.3×51 | 15C |
| 08500 | 280 | 3.7 | 8.3×51 | 15C |
| 08570 | 280 | 3.7 | 8.3×58 | 15C |
| 09500 | 330 | 3.7 | 9.3×51 | 10C |
| 10260 | 160 | 3.7 | 10.3×27 | 15C |
| 10350 | 320 | 3.7 | 10.3×36 | 10C |
| 10530K | 420 | 3.7 | 10.3×54 | 15C |
| 11240 | 160 | 3.7 | 11.3×25 | 15C |
| 12290 | 300 | 3.7 | 12.3×30 | 10C |
| 13300 | 400 | 3.7 | 13.3×31 | 10C |
| 15350 | 650 | 3.7 | 15.3×36 | 8C |
| 17350 | 850 | 3.7 | 17.3×36 | 7C |
| 401832 | 170 | 3.7 | 4.2×18.3×32.5 | 15C |
| 451645 | 280 | 3.7 | 4.7×16.3×45.5 | 15C |
| 452533 | 300 | 3.7 | 4.7×25.3×33.5 | 10C |
| 471540 | 250 | 3.7 | 4.9×15.3×40.5 | 15C |
| 501243 | 210 | 3.7 | 5.2×12.3×43.5 | 15C |
| 501245 | 230 | 3.7 | 5.2×12.3×45.5 | 15C |
| 501447 | 280 | 3.7 | 5.2×14.3×47.5 | 15C |
If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
If batteries with different capacity or new and old batteries are used together, leakage, zero voltage and similar issues might occur. During charging, some batteries may overcharge while others remain undercharged. During discharge, some batteries cannot discharge fully while others may over-discharge, potentially damaging the battery.
Possible causes include short circuit or open circuit of connectors, incorrect wiring connections, de-soldering or cold solder joints between batteries and leads, or incorrect internal battery connections.
This could be due to zero voltage in the battery or battery pack, incorrect internal connections, abnormal electronic components or PCB issues, charger failure, or external factors like extremely low or high temperatures affecting charging efficiency.
All-weather applicability (-30~60℃), highly safe battery design with newest electrolyte and separator technology, full coverage of battery varieties including lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage, and primary batteries.
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
Comprehensive quality assurance processes ensuring reliable and safe battery performance.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified for global compliance and safety standards.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, providing various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
