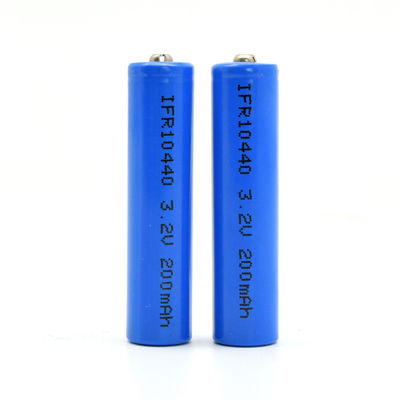

IFR10440 3.2V 200mAh Lifepo4 Battery Cell with 2000 Cycle Life LFP Cylindrical Cell

Model Number:	IFR10440
MOQ:	500pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, IEC62133, RoHS

Voltage:

Capacity:

200mAh

Cycle Life:

2000 Times

Weight:

Size:

10*44mm

Internal Resistance:

≤70mΩ

Supply Ability:

40'000Pieces daily

Highlight:

IFR10440 LFP Cylindrical Cells

LFP Cylindrical Cells IFR10440

3.2 v 200mAh Lfp Cylindrical Cells

Product Description

IFR10440 Lifepo4 Battery Cell 3.2v 200mAh LFP Cylindrical Cells

14430 3.2V LiFePO4 Battery Cell - 400mAh Solar Garden Light Battery

Item	Parameters	Remark
Rated Capacity	Typical: 500mAh Minimum: 500mAh	Standard discharge (0.2C) after standard charge
Alternating Internal Resistance	≤70mΩ
Nominal Voltage	3.2V	Mean operation voltage
Voltage at End of Discharge	2.0V	Discharge cut-off voltage
Charging End Voltage	3.65V
Standard Charge	Constant Current 0.2C Constant Voltage 3.650V 0.02C cut-off	Charge time: Approx 6.0h
Standard Discharge	Constant Current 0.2C End Voltage 2.0V
Fast Charge	Constant Current 1C Constant Voltage 3.65V 0.02C5A cut-off	Charge time: Approx 2.5h
Fast Discharge	Constant Current 1C End Voltage 2.0V
Cycle Characteristic	1000 times (80% DOD)	The residual capacity is no less than 80% of rated capacity at 1C rate
Maximum Continuous Discharge Current	2C	Pulse discharge current: 5C
Operation Temperature Range	Charge: 0~55℃ Discharge: -20~60℃	60±25% R.H. bare battery
Storage Temperature Range	Less than 1 year: -20~25℃ Less than 3 months: -20~45℃	60±25% R.H. at the shipment

Product Images

Related LiFePO4 Cylindrical Battery Cells

Model No.	Nominal Voltage	Typical Capacity	Size	Charge Rate	Discharge Rate	Weight(g)	Cycle life (80% DOD)
IFR10440	3.2V	200mAh	10.3*44.2	0.2-0.5C	0.2-3C	7	≧2000
IFR14430	3.2V	400mAh	14.2*43	0.2-0.5C	0.2-3C	13	≧2000
IFR14500	3.2V	600mAh	14.2*50.2	0.2-0.5C	0.2-3C	18	≧2000
IFR16340	3.2V	400mAh	16.2*34.2	0.2-0.5C	0.2-3C	13	≧2000
IFR18500	3.2V	1000mAh	18.1*50.2	0.2-0.5C	0.2-3C	34	≧2000
IFR18650	3.2V	1500mAh	18.5*65.3	0.2-0.5C	0.2-3C	42	≧2000
IFR18650	3.2V	1800mAh	18.5*65.3	0.2-0.5C	0.2-3C	62	≧2000
IFR22650	3.2V	1800mAh	22.5*65.3	0.2-0.5C	0.2-3C	64	≧2000
IFR26650	3.2V	3400mAh	26.5*65.3	0.2-0.5C	0.2-3C	85	≧2000
IFR26650	3.2V	3600mAh	26.5*65.3	0.2-0.5C	0.2-3C	90	≧2000
IFR26650	3.2V	3600mAh	26.5*65.3	0.2-0.5C	0.2-3C	90	≧2000
IFR32700	3.2V	6000mAh	32.5*65.3	0.2-0.5C	0.2-3C	150	≧2000

Why Choose Us

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology applied
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Quality Control

Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
