|Battery Type:||Lithium Polymer Battery Pack||Voltage:||3.7V|
|Lead Time:||15-20days||Application:||Digital Products|
3.7 V 150mah Lipo Battery,
402020 Rechargeable Battery Pack,
Lithium Ion 402020 battery
402020 150mAh 3.7V Lipo Batteries Polymer Lithium Ion Rechargeable Battery Pack
cut off Voltage:3.0V for cell
|3.2 Nominal Voltage||Average 3.7V||
cut off Voltage:3.0V for cell
|3.3 AC Impedance Resistance||≤160mΩ|
|3.4 Discharge Cut-off Voltage||3.00V|
|3.5 Charge Current||100mA||Standard Charge|
|3.6 Charge Voltage||4.2V|
|3.7 Max. Charge Voltage||4.23V|
|3.8 Storage humidity||< 75%RH||Hygrometer|
|3.9 Max. Charge Current||100mA||1.0CmA|
|3.10 Max. Discharge Current||100mA||1.0 CmA|
|3.11 Weight||Approx 45g|
|less than 1 month||-20~+45°C||
temperature: 20°C,at the
|less than 3 months||-20~+35°C|
Li polymer battery pack widely used in:
GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera

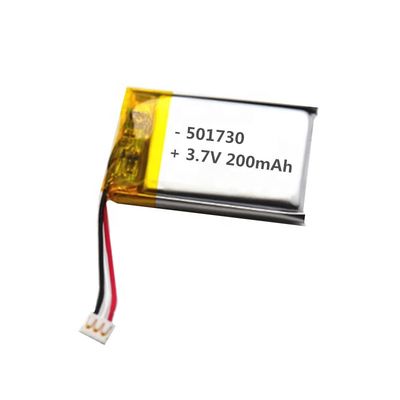

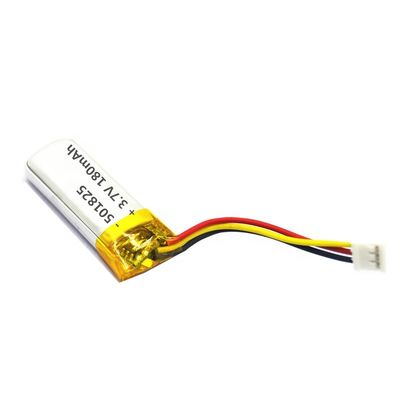

Other hot-sale Li polymer battery pack , with stocks can accept mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
|Model||Cell Dimension||With PCM Dimension||Capacity|

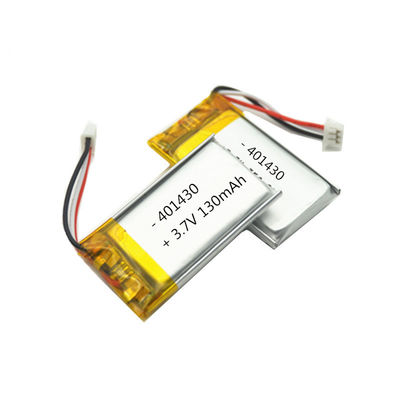

Images for Ultra small Lithium ion Polymer 3.7V 401430 130mah li polymer battery pack
Standard packaging for 3.7V 7.4V lithium polymer battery pack
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack.
There is wrong connection inside the battery pack.
There is abnormally of electronic components and/or PCB inside the battery pack.
There is failure in charger.
Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Why Choose us:
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
