Product Details:
|
| Battery Type: | Lithium Battery Pack | Model: | ICR18650 1S1P |
|---|---|---|---|
| Nominal Voltage: | 3.7V | Nominal Capacity: | 2600mAh(2200mAh, 2400mAh, 2600mAh...) |
| End Of Charging: | 2.75V | Cut-off Voltage: | 4.2V |
| Cycle Life: | 500times | Discharging Rate: | 1C |
| Application: | Cash-machine, POS Terminal, Heating Clothes, Monitor, Medical Equipment, Bar-code Scanner | Lead Time: | 7days |
| High Light: | 2600mah 3.7 v 18650 rechargeable lithium battery,IEC62133 icr 18650 battery 2600mah 3.7 v,3.7 v 18650 lithium ion battery 2600mah |
||
Hight Top 18650 Rechargeable Li Ion Battery Pack 3.7V 2600mAh 18650 Lithium Battery
| Item | Specifications |
| Nominal capacity | 2200mAh 0.2C Discharge |
| min capacity | 2200mAh 0.2C Discharge |
| Nominal voltage | 3.7V |
| Charge current | Standard Charge :0.2C |
| Charging time |
Standard Charging Approx 6 hours Charge: 0.2CmA |
| Max.charge current | 2200mA |
| Max.discharge current | 2200mA |
| Discharge cut-off voltage | 3.0V |
| Charge cut-off Voltage | 4.23V |
| Initial Impedance | ≤100mW |
| Weight | Approx:50g |
| Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~60℃ |
| Storage temperature | -5℃~35℃ |
| Storage Humidity | ≤75% RH |
| Appearance | Without scratch,distortion,contamination and leakage |

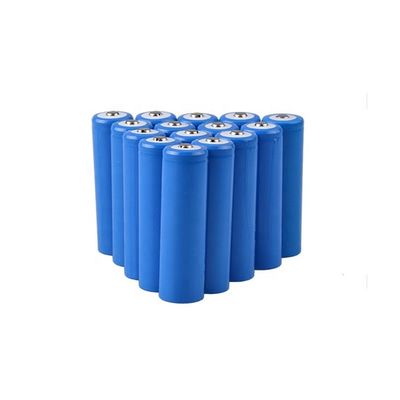

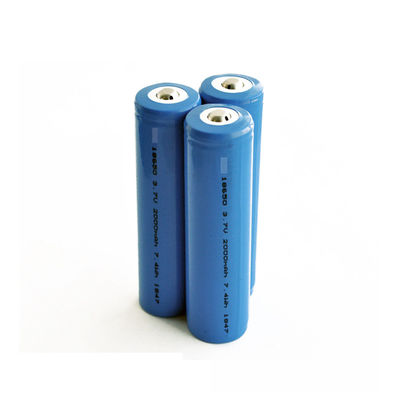

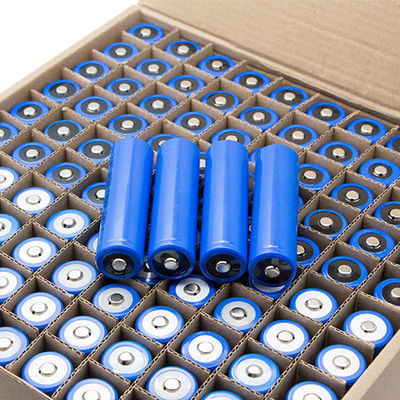

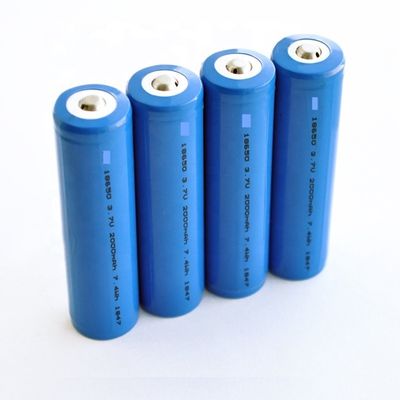

Detailed images: Rechargeable 18650 Lithium battery 3.7V 2600mAh with PCM and hight top
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.

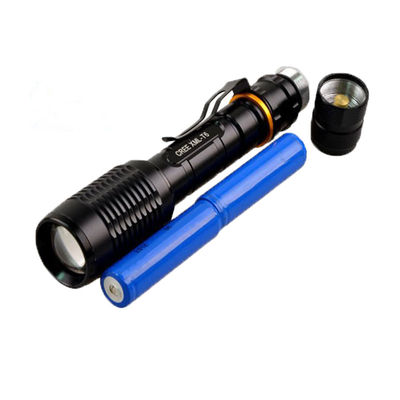

Illuminate devices: miner lamp, searchlight. Others: toys, models.
Warnings:
Do not place the battery in the water.
Do not mix fresh batteries with used batteries.
Do not mix batteries with metal stuff together.
Do not insert batteries with the (+) and (-) reversed.
Do not disassemble, dispose in fire, heat or short circuit.
Do not put the battery in a charger or equipment with wrong terminals connected.
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list | ||||||
| Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
| ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
| ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
| ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
| ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
| ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
| ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
| ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
| ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
| ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
| ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
| ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
| ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
