Lithium Polymer Battery Pack

Small 3.7V 120mAh LiPo 501225 Lithium Polymer Battery Pack for Digital Products

All Category

Solar Energy Storage Batteries

Rechargeable Lithium Batteries

Portable Power Station

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

Contact Now

Small 3.7V 120mAh LiPo 501225 Lithium Polymer Battery Pack for Digital Products

Model Number:	LP501225
MOQ:	2000pieces
Packaging Details:	Bulk packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, IEC62133, RoHS

Voltage:

Weight:

Size:

5*12*27.5mm

Capacity:

120mAh

Cycle Life:

500times

Max Discharge Current:

Supply Ability:

50'000Pieces daily

Highlight:

Small 3.7v 120mah Lipo Battery

501225 Lithium Polymer Battery Pack

501225 3.7v 120mah Lipo Battery

Product Description

Small 3.7V 120mAh Lipo 501225 Lithium Polymer Battery Pack

Small Battery 501225 Lithium Polymer Battery Pack 3.7V 120mAh Lipo Battery With Connector

Product Specifications

Product Name	Lithium Polymer Battery 501225 120mAh 3.7V
Model	501225
Capacity	120mAh
Voltage	3.7V
Battery Cell Size	5.0×12×25mm
Certification	KC, UL
Max Discharge Current	1C
Max Charge Current	0.5C
Charging Temperature	0-45°C
Discharge Temperature	-20-60°C
Cycle Life	More than 500 times
Charge Full Voltage	4.2V
Discharge Cut-off Voltage	2.75V
Warranty	12 months
Application	Sports Bluetooth Headset, Smart Watch, Baby Bed Monitoring
Free Samples	To be negotiated
Three Ways	Only battery, Battery + PCB + wire, Battery + PCB + wire + connector

Common Applications

GPS Devices
POS Terminals
Wireless Headsets
Communication Tools
Heating Blankets
Smart Phones
Learning Tools
Medical Devices
Personal Care Scanners
Vacuum Packaging
Lamps
Monitors
Portable DVD Players
Smart Home Devices
Tablet PCs
Pulse Monitoring
Mobile Devices
Power Banks
Cameras

Related Battery Models

Model	Cell Dimension	With PCM Dimension	Capacity
302025	3.0×20×25mm	3.2×21×27.5mm	3.7V 100mAh
302530	3.0×25×30mm	3.2×26×32.5mm	3.7V 180mAh
401824	4.0×18×24mm	4.2×19×26.5mm	3.7V 180mAh
402525	4.0×25×25mm	4.2×26×27.5mm	3.7V 200mAh
483450	4.8×34×50mm	5.0×35×52.5mm	3.7V 850mAh
502030	5.0×20×30mm	5.2×21×32.5mm	3.7V 240mAh
502525	5.0×25×25mm	5.2×26×27.5mm	3.7V 180mAh
503030	5.0×30×30mm	5.2×31×32.5mm	3.7V 430mAh
523450	5.2×34×50mm	5.4×35×52.5mm	3.7V 1000mAh
553444	5.5×34×44mm	5.7×35×46.5mm	3.7V 850mAh

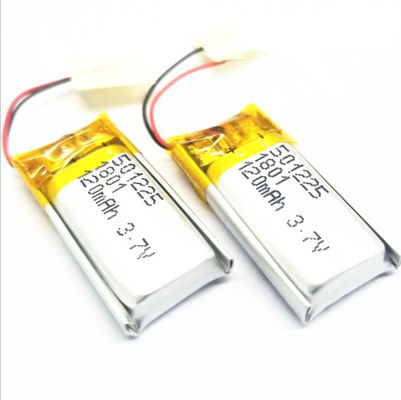

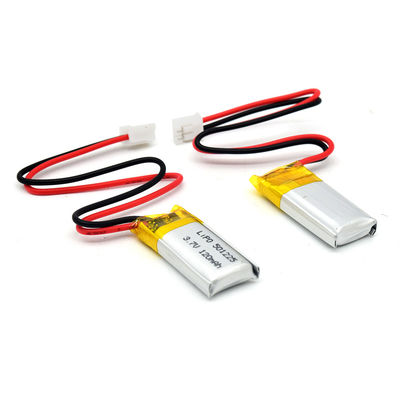

Product Images

Frequently Asked Questions

Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.

Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.

Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack. There is wrong connection inside the battery pack. There is abnormally of electronic components and/or PCB inside the battery pack. There is failure in charger. Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

Why Choose Gold Power Energy

Technology

All-weather applicability (-30~60°C)
Highly safe battery design technology with the newest electrolyte and separator technology applied
Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

Research & Development

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Quality Control

Certifications

CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
