Li Polymer Battery
>
UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack

UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack

Model Number: LP654060
MOQ: 3000pieces
Packaging Details: Bulk packing
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
UN38.3, MSDS, IEC62133, RoHS
Battery Type:
Lithium Polymer Battery
Voltage:
3.7V
Capacity:
2000mAh
Cycle Life:
500times
Size:
6*40*62.5mm
Weight:
38g
MOQ:
3000pcs
Warranty:
1 Year
Lead Time:
15-20days
Supply Ability:
100'000Pieces daily
Highlight:

654060 Li Polymer Battery Pack

,

UN38.3 3.7 V 2000mAh Lipo 654060

,

UN38.3 3.7 V 2000mAh Lipo 654060 Li

Product Description

KC UN38.3 Lipo Battery 2000mAh 654060 Li Polymer Battery Pack With Customized Connector



Names
Specifications
Type
Lithium polymer battery
Nominal voltage
3.7V
Nominal Capacity
2000mah
Dimension
6.5*40*62.5mm
Battery cell Mode
654060
Max.charge current
1.0C
Max.discharge current
1.0C
Charge current
Standard Charging: 0.5C
Rapid charge: 1.0C
Standard Charging method
0.5C CC(constant current)charge to 4.2V,
then CV(constant voltage 4.2V)charge till
charge current decline to ≤0.05C
Charging time
Standard Charging: 3.0 hours(Ref.)
Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage
2.45V~3.0V
Operating temperature
-20°C~+60 °C
Storage temperature
25°C
Li polymer battery pack widely used in:


GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone



Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor



Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Moblie, Power Bank, Camera



Other hot-sale Li polymer battery pack models, with stocks can accept mini order:



Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7v 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh

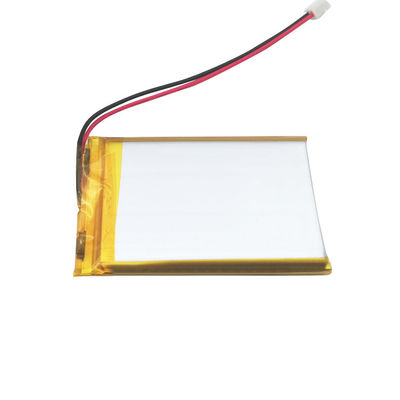

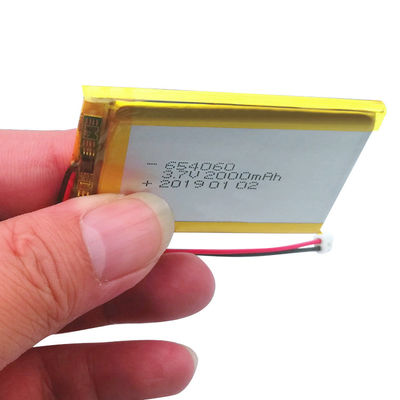

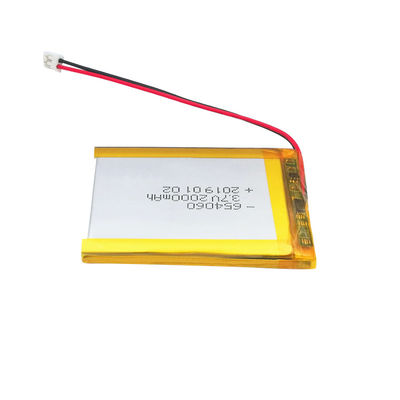

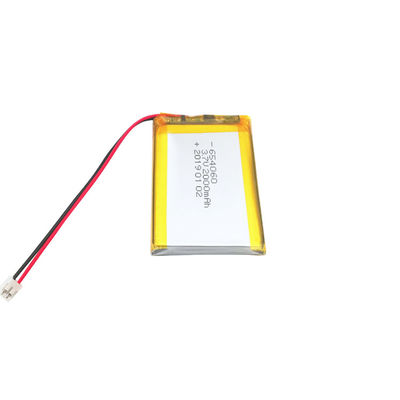

Detailed images Li Polymer 654060 2000mah 3.7v lipo Rechargeable battery pack

UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 0UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 1UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 2



Standard packaging for 3.7V 7.4V lithium polymer battery pack



UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 3

FAQ for lithium rechargeable battery:



Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 4



Quality Control



UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 6



Factory Tour:



UN38.3 3.7 V 2000mAh Lipo 654060 Li Polymer Battery Pack 7
