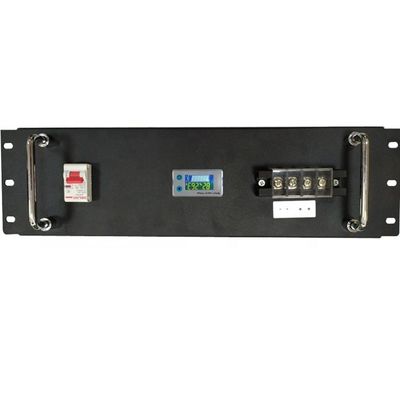

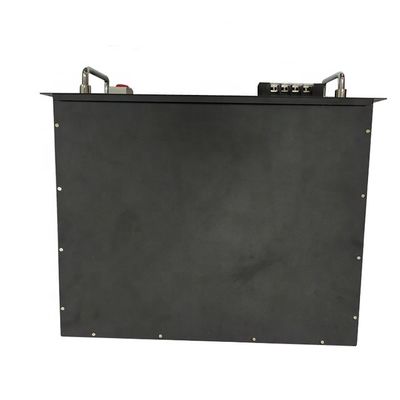

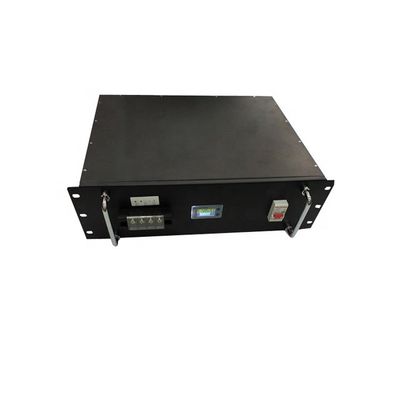

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries
Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries

Large Image :  Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, RoHS
Model Number: LFP48V100
Payment & Shipping Terms:
Minimum Order Quantity: 2pieces
Packaging Details: Carton box
Delivery Time: within 20days
Payment Terms: T/T
Supply Ability: 5000Pieces daily

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries

Description
Battery Type: LiFePO4 Battery Pack Voltage: 48V
Capacity: 100Ah Cycle Life: 2000 Times
Application: Solar Light Batteries, Power Supply, E-boat Weight: 43kg
Size: 432*420*170mm Warranty: 3 Years
Usage: EV/CAR/MOTORCYCLE/UPS/ENERGY STORAGE Type: Deep Cycle Battery
Power Energy Storage Battery 200ahKeyword: China 48v Deep Cycle Solar
High Light:

Household 5KWh Lithium Battery

,

5KWh Lithium Battery

,

48 Volt Solar Energy Storage Batteries

48V Solar Energy Storage Batteries 5KWh Household Solar Battery Storage

Item
Houshold Solar stroage Battery Pack Description
Product Name
2.4kWh Pack
2.8kWh Pack
4.8kWh Pack
5.6kWh Pack
Ah Capacity
48V 50Ah
51.2V 55Ah
48V 100Ah
51.2V 110Ah
Energy Capacity
2.4kWh
2.8kWh
4.8kWh
5.6kWh
Cell Type
3.2V LiFePO4 prismatic cells
Cell Number
15 cells
16 cells
30 cells
32 cells
Cell Capacity
50Ah
55Ah
50Ah
55Ah
Cell Connection
15S
16S
2P15S
2P16S
Typical Voltage
48VDC
51.2VDC
48VDC
51.2VDC
Working Voltage Range
42V-54V
44.8V-57.6V
42V-54V
44.8V-57.6V
Dynamic voltage difference between cells
≤50mv
Maximum Discharging Current
1C
Maximum Charging Current
0.5C
BMS Integrated
Yes
BMS Communication
RS485
BMS Active Equalization
Yes
SOC Range
5% - 95%
Usable Capacity
2.16kWh
2.52kWh
4.32kWh
5.04kWh
Lifespan
5000 cycles
Warranty
9MWh per kWh BTT or 10 years, depends on which one comes sooner
Working Temperature Range
0℃ - 45℃
Storage Temperature Range
-20℃ - 45℃
Power Connection
IP67 push and plug connector
Self-consumption
25℃ 40%SOC
5% per month
Dimensions
2U 483x89x428mm
3.5U 483x160x428mm
Weight
24KG
25KG
46KG
47KG



FAQ for Lifepo4 48V 100Ah lithium iron phosphate battery for solar storage system:

Q1. Can we put different LiFePO4 battery pack in parallel or series by ourself?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention:

1. Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.

2. Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.

3. Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery. 4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.



Solar street Light Battery 100Ah rechargeable 48v Lifepo4 battery pack



Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 0Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 1

Related battery charger for 48 volt lifepo4 portable solar battery pack

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 2

Other hot sale 12V 24v 48V lifepo4 rechargeable battery pack:



Lead Acid Replacement LiFePO4 Battery Pack
Voltage
Typical Capacity Charge Discharge Dimension (mm) with case Weight(Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52



Lifepo4 rechargeable battery packs for other applications.

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 3



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 4



Quality Control



Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 6



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries 7
