24V 200Ah LiFePO4 Battery with 2000 Times Life for Solar Energy Storage

Model Number:	LFP24V200
MOQ:	2pieces
Packaging Details:	Carton box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

UN38.3, MSDS, RoHS

Voltage:

Weight:

Capacity:

200Ah

Cycle Life:

2000 Times

Size:

442*360*133mm

Discharge Cut-Off:

Supply Ability:

5000Pieces daily

Highlight:

MSDS Solar Lithium Ion Battery

Lithium Ion Battery 24V 200AH

lithium ion battery for solar storage

Product Description

LiFePO4 MSDS Solar Lithium Ion Battery 24V 200AH 2000 Times Life

Customized Deep Cycle Rechargeable Storage Lifepo4 24V 100AH Lithium Ion Battery for Marine, Leisure, Renewable, Mobility

Battery Pack Specifications
Nominal Voltage	24V	Any voltage can be customized
Nominal Capacity	200Ah	Any capacity can be customized
Discharge Cut-Off	20V
Charge Cut-Off	29.2V
Charge Current	100A	Free customization service
Continuous Discharge	200A	Free customization service
Peak Discharge	400A	Free customization service
Impedance	≤20mΩ
Charge Temperature	0℃ - 45℃
Discharge Temperature	-20℃ - 60℃
Charge Method	CC/CV
Life Cycle	2000+	80% DOD, Max. 95% DOD
BMS	With BMS
Dimension	442×360×133mm	Any dimension can be customized
Weight	27KG

Battery Cell & BMS Details

Component	Specification	Details
Battery Cell Used	Prismatic LiFePO4 Cell	3.2V 100Ah/50Ah/25Ah (8S1P/8S2P/8S4P)
BMS Protection	Over Charge Protection	Single cell: 3.9±0.05V (Release: 3.6±0.05V)
	Charge Protection	Rated charging current: ≤200A
	Over Discharge Protection	Single cell: 2.20±0.1V (Release: 2.7±0.1V)
	Discharge Protection	Rated discharge current: ≤200A
	Current Protection	Discharge protection current: 500±100A (10mS)
	Short Circuit Protection	200-600 µs response time
	Communication Function	Supported (Confirm with supplier)
LED Indicator	Displays Voltage, Capacity%, Working Temperature
Battery Case	Metal case with handle
IP Grade	IP65

Advantages of 24V 200Ah LiFePO4 Battery Pack

Longer Cycle Life

Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid batteries, minimizing replacement costs and reducing total cost of ownership.

Lighter Weight

About 40% of the weight of a comparable lead acid battery. A "drop-in" replacement for lead acid batteries.

Higher Power

Delivers twice the power of lead acid batteries, even at high discharge rates, while maintaining high energy capacity.

Superior Safety

Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

Frequently Asked Questions

Q1. Can we put different LiFePO4 battery packs in parallel or series by ourselves?

A1: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention to:

Make sure the voltage of each battery is the same before putting in parallel. If they are not the same, charge them to the same rate.
Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
Advise us the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery.
If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q2. Does your battery pack include BMS? Can we use it for car?

A2: Yes, our battery pack includes BMS. You can use it for low speed car only or auxiliary power for standard car. Do not use it for standard car directly, as that will require more complex design BMS for the pack.

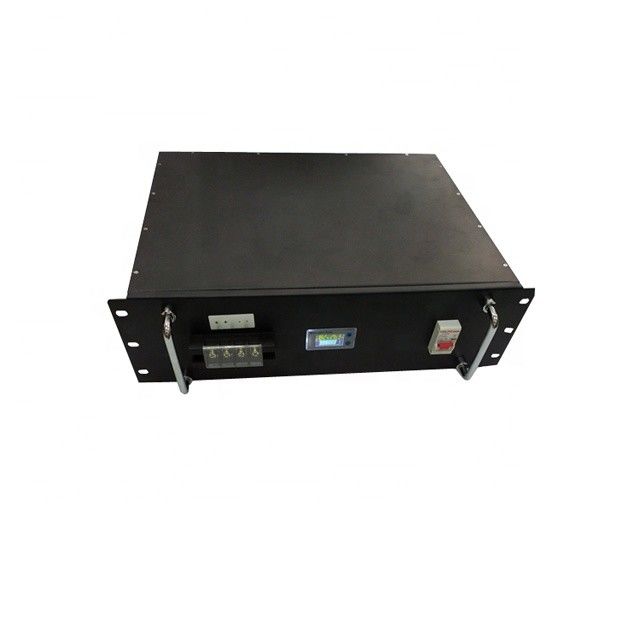

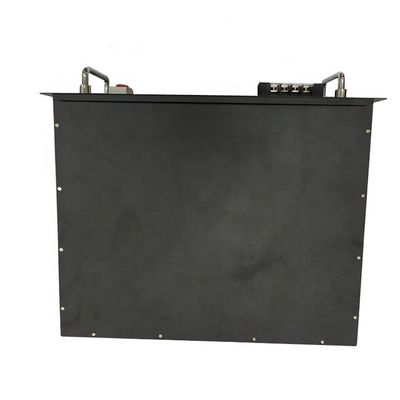

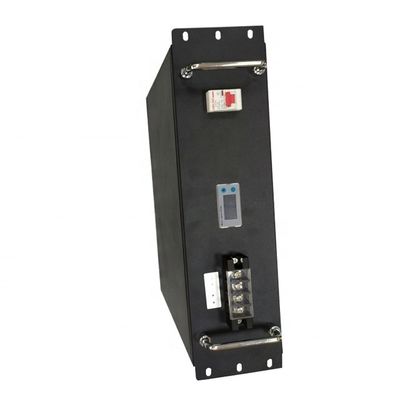

Product Images

Related Battery Charger

Other Hot Sale LiFePO4 Battery Packs

Voltage	Typical Capacity	Charge	Discharge	Dimension (mm)	Weight (Kg)
12V	8AH	0.2C-2C	0.2C-2C	150×92×65	1.25
12V	10AH	0.2C-2C	0.2C-2C	150×92×65	1.6
12V	12AH	0.2C-2C	0.2C-2C	151×99×95	1.8
12V	50AH	0.2C-2C	0.2C-2C	195×165×175	9.5
12V	100AH	0.2C-2C	0.2C-2C	330×175×220	19
12V	200AH	0.2C-2C	0.2C-2C	525×240×215	30
24V	10AH	0.2C-2C	0.2C-2C	181×77×175	3
24V	30AH	0.2C-2C	0.2C-2C	195×165×175	12
24V	50AH	0.2C-2C	0.2C-2C	330×175×220	18
24V	100AH	0.2C-2C	0.2C-2C	485×175×240	32
48V	10AH	0.2C-2C	0.2C-2C	223×106×175	7.5
48V	50AH	0.2C-2C	0.2C-2C	522×237×215	33
48V	75AH	0.2C-2C	0.2C-2C	522×237×215	42
48V	100AH	0.2C-2C	0.2C-2C	350×540×160	52

LiFePO4 Rechargeable Battery Applications

Why Choose Us

Technology

All-weather applicability (-30~60℃)
Highly safe battery design technology with the newest electrolyte and separator technology
Full coverage of battery variety: Lithium ion cylindrical battery, lithium polymer battery, LiFePO4 battery, solar energy storage battery pack, square aluminum shell, primary battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Quality Control

Rigorous quality control processes ensure product reliability and performance.

Certifications

CE RoHS BIS KC CB UL MSDS UN38.3 IEC61233

Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.
