KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

Certification
China shenzhen gold power energy co.,ltd certification
China shenzhen gold power energy co.,ltd certification
I'm Online Chat Now

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector
KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

Large Image :  KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

Product Details:
Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: ICR18650
Payment & Shipping Terms:
Minimum Order Quantity: 1000pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 100'000Pieces daily

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector

Description
Battery Type: Lithium Ion Battery Pack Model: ICR18650
Nominal Voltage: 3.7V Nominal Capacity: 2600mAh
Cycle Life: 500times Discharging Rate: 1C
Anode Material: Lithium Cobaltate Application: Fingerprint, Portable Fan, Emergency Light
Lead Time: 10days Battery Warranty: 1year
High Light:

KC UL Icr 18650 2600mah 3.7 V

,

icr18650 lithium cell 2600mah

,

rechargeable 18650 battery 2600mah

KC, UL 18650 Lithium Battery 3.7V 2600mAh li-ion battery pack with JST connector
Item Rating Note
Capacity Typical 2600mAh

Discharge:0.2CmA (520mA)

cut off Voltage:3V for cell

Minimum 2600mAh
Nominal Voltage Average 7.4V

Discharge:0.2CmA (520mA)

cut off Voltage:3V for cell

AC Impedance Resistance ≤180mΩ
Discharge Cut-off Voltage 3.00V
Charge Current 520mA Standard Charge
Charge Voltage 4.2V
Max. Charge Voltage 4.23V
Charge Time Approx 6h Charge: 0.2CmA(520mA )
Max. Charge Current 2600mA 1.0CmA
Max. Discharge Current 2600mA
Weight Approx 50.0g

Operating

Temperature

Charge 0~+45°C
Discharge -20~+60°C

Storage

Temperature

less than 1 month -5~+35°C

Recommended storage

temperature: 20°C,at the

shipment state

less than 3 months -5~+35°C

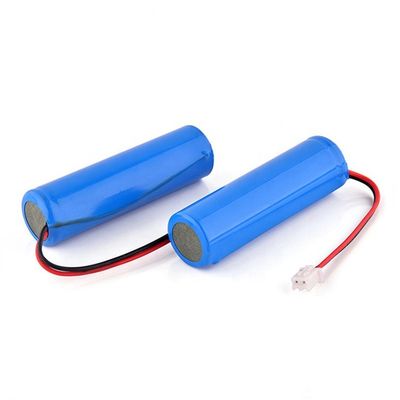

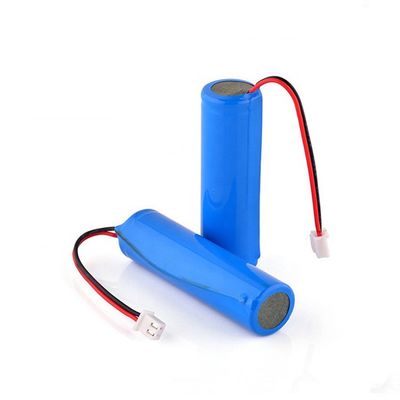

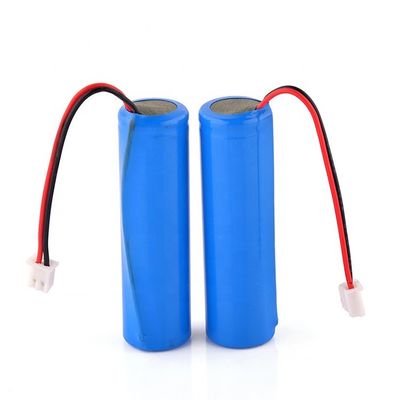

Detailed images for lithium battery cells ICR18650 3.7V 2600mAh li ion battery



KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 0KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 1KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 2

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 3



3.7V lithium battery pack main applications:



cash-machine,POS Terminal,monitor,barcode scanner,taxi-machine, portable voting device, lighting, fire alarm sensors,



mineequipment, speaker, GPS tracekr, car video-registry, stand-alone telemechanic syster, GSM-modem ect.



Customized lithium rechargeable battery packs



KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 4

Cautions and Warnings for Using Lithium Battery

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 5



Quality Control



KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 7



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.

KC UL Icr 18650 2600mah 3.7 V Lithium Ion Battery Pack With JST Connector 8
