Product Details:
|
Battery Type: | Custom Lithium Polymer Battery | Voltage: | 3.7V |
---|---|---|---|
Capacity: | 2300mAh | Cycle Life: | 500times |
Size: | 10*40*50mm | Weight: | 46 |
High Light: | 104050 lipo battery bank,500times cycle life lipo battery bank,2.3ah 3.7 v custom lipo battery pack |
Rechargeable Lithium Ion Polymer Battery Pack KC Lithium Polymer Battery Packs
Manufacturer
|
Shenzhen GPE
|
Items
|
Parameter
|
Battery model
|
104050
|
Nominal voltage
|
3.7v
|
Minimum capacity
|
2300mAH (0.2C discharge)
|
Charging voltage
|
4.2v
|
Discharging cut-off voltage
|
3.0v
|
Standard charging
|
0.2C /4.2V
|
Max charging
|
1.0C /4.2V
|
Standard discharging
|
0.2C/3.0V
|
Max discharging
|
continuous discharge : 1.0C/3.0V
|
non-continuous discharge:2.0C/3.0V
|
|
Shipment voltage
|
≥3.85V
|
Battery pack impedance
|
≤80mΩ
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
Discharging: -20°C ~60°C
|
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )
|
-10℃~25℃ (12 months ≥85% )
-10℃ ~45℃ (6 months ≥85% )
-10℃~55℃ (1 month ≥90% )
20±5℃ is the recommended storage temperature
|
Visual Inspection
|
There should not be any remarkable scratches, cracks,bolts,
cauterization, deformations, swelling, leakage and so on the surface of the cell.
|
Reference standard
|
GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
|
Other hot-sale Li polymer battery pack models, with stocks can accept mini order:
Shenzhen Gold Power Energy have over 1000models lithium polymer batteries.
Capacity range from 20mAh to 5000mAh, can meet your different kinds of applications.
Following are some of hot-sale models for your reference.
Model | Cell Dimension | With PCM Dimension | Capacity |
302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1200mAh |
656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |

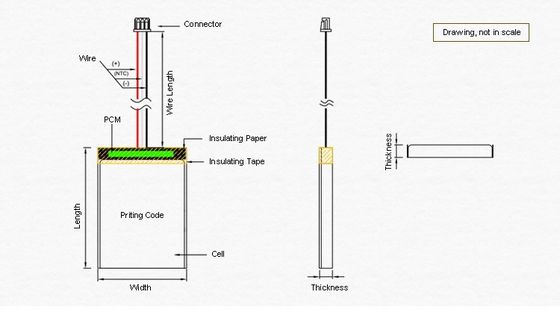

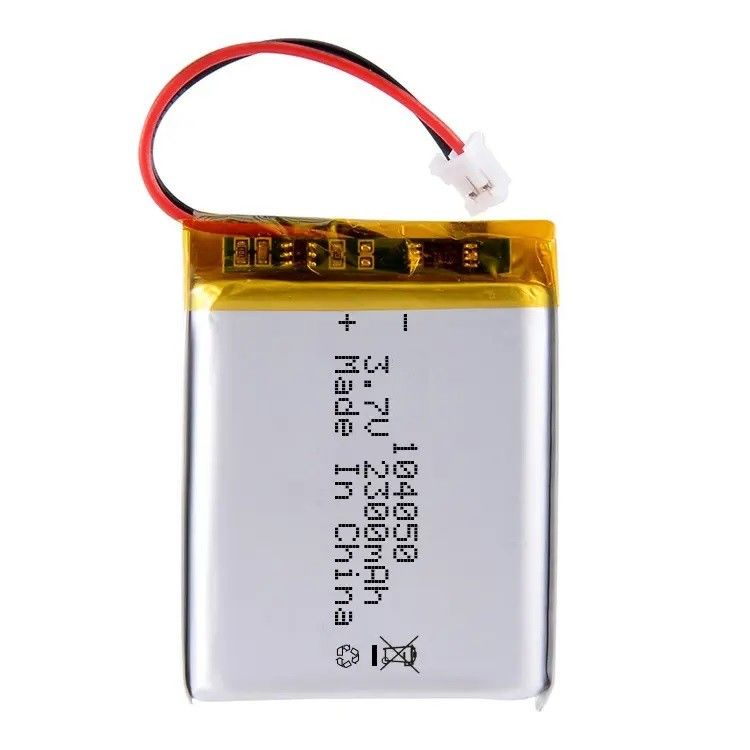

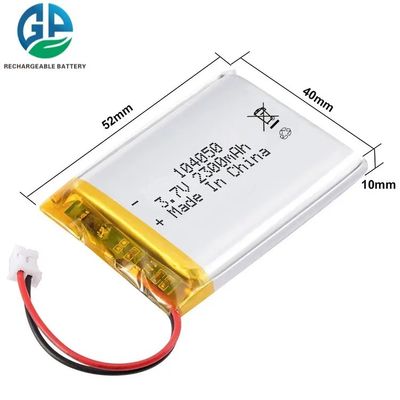

Detailed images Li-Polymer battery 104050 2.3ah 3.7v lipo Rechargeable battery pack
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
Lithium polymer battery lipo rechargeable battery features:
1.Long life cycle, large capacity and good shock resistance
2.Low self-discharge and good discharge performance at low temperature
3.Strong charging acceptance and quick-charging capability
4.Strong over-discharge resistance and charge retention
5.Maintenance-free and no acid or water for maintenance in usage
6.Excellent large current discharge performance, and have obvious advantages in start-up and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size
10.Most safe no explosion no fire
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated battery pack.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
Contact Person: Linda
Tel: +86 15817210994
