Product Details:
|
| Battery Type: | Lipo Battery Pack | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 180mAh | Cycle Life: | 500times |
| Application: | Beauty Device | Size: | 8.0*15*20mm |
| High Light: | Rechargeable Li Ion Polymer Battery,3.7V 450mah Li Ion Polymer Battery,801520 li poly battery |
||

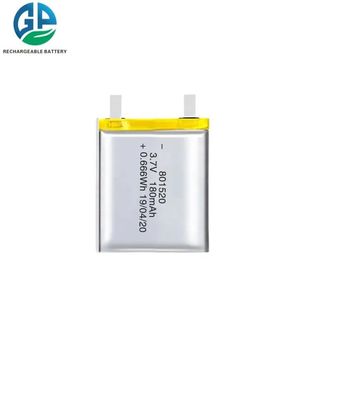

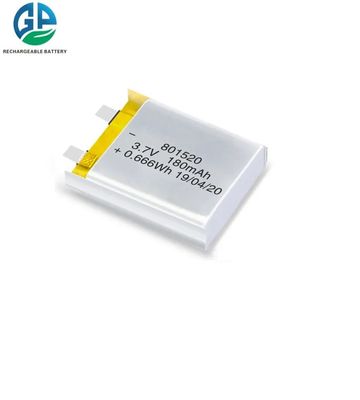

KC Rechargeable Lipo Battery 3.7V 180mAh 801520 Lithium Polymer Battery Li Polymer 3.7 V Battery
|
801520 Basic Information |
Dimension( thickness*width*length) | 8*15*20(mm) |
| Charge voltage | 4.2V | |
| Nominal voltage | 3.7V | |
| Nominal capacity | 180mAh | |
| Fully charge voltage | 4.2v | |
| Ship out volatge | 3.85-4.1v |
| Battery specification | Charge current | Standard Charging:0.5C (90mA) |
| Rapid charge:1.0C(180mA) | ||
| Charging method | Charge with constant current 0.5c to 4.2V, then chagre with constant voltage 4.2v till until charge current is less than 0.01C | |
| Standard discharge current | 0.2C(36mA) | |
| Max.discharge current | 1C(180mA) | |
| Discharge cut-off voltage | 3.0v | |
| Operating enviroment | Charging:10℃~45℃ | |
| Discharging:-10℃~60℃ | ||
| Storage temperature | -10℃~45℃ | |
| Cell Weight | Approx: 3.g | |
| Battery recyle time | 500 times | |
| Warranty | 12 months |
Other Lithium polymer Battery with KC certificates list hot saled in Korea market
| Model | Voltage | Capacity | Certificates |
| 252940 | 3.7V | 260mAh | UL/CB/KC/CE/FCC/ROHS/UN38.3/MSDS |
| 301318 | 3.7V | 50mAh | KC/CB/UN38.3/MSDS |
| 301525 | 3.7V | 80mAh | CB/KC/UN38.3 |
| 302540 | 3.7V | 280mAh | KC/CE/FCC/ROHS/UN38.3/MSDS |
| 303030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 303450 | 3.7V | 500mAh | KC/CE/80℃ high temperature report/CQC |
| 321618 | 3.7V | 75mAh | KC/IEC62133/CE/UN38.3/MSDS |
| 331422 | 3.7V | 80mAh | KC/CE/PSE/UN38.3/MSDS |
| 351325 | 3.7V | 90mAh | KC/ROHS/FCC/UN38.3/MSDS |
| 351422 | 3.7V | 80mAh | KC |
| 380926 | 3.7V | 60mAh | KC/IEC62133/UN38.3/MSDS |
| 400920 | 3.7V | 55mAh | UL/KC/MSDS |
| 401020 | 3.7V | 55mAh | KC/CE |
| 401020 | 3.7V | 60mAh | KC |
| 401025 | 3.7V | 70mAh | KC/CE |
| 401119 | 3.7V | 55mAh | KC/CE |
| 401121 | 3.7V | 55mAh | KC/IEC62133/ROHS/UN38.3/MSDS |
| 401214 | 3.7V | 50mAh | KC/CE |
| 401230 | 3.7V | 120mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 402030 | 3.7V | 185mAh | UL/KC/IEC62133/CE/FCC/UN38.3/MSDS |
| 402525 | 3.7V | 250mAh | KC/CE |
| 403030 | 3.7V | 300mAh | KC/CE/UN38.3/MSDS |
| 432526 | 3.8V | 320mAh | KC/CB/IEC62133/UN38.3/MSDS |
| 451220 | 3.7V | 80mAh | KC |
| 481153 | 3.7V | 300mAh | KC/CE/UN62133/UN38.3/MSDS |
| 481159 | 3.7V | 300mAh | KC/CE/EN62133/UN38.3/MSDS |
| 501012 | 3.7V | 45mAh | KC/CE |
| 501020 | 3.7V | 80mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 501040 | 3.7V | 150mAh | KC |
| 501130 | 3.7V | 150mAh | UL/KC/CB/CE/ROHS/UN38.3/MSDS |
| 501220 | 3.7V | 100mAh | UL/KC/CE/ROHS/MSDS |
| 501235 | 3.7V | 160mAh | KC/CE/ROHS/MSDS |
| 501332 | 3.7V | 200mAh | KC/ROHS/MSDS |
| 501535 | 3.7V | 240mAh | KC/CE |
| 502030 | 3.7V | 250mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 502035 | 3.7V | 300mAh | UL/KC/CE/ROHS/IEC62133/FCC/UN38.3/MSDS |
| 503035 | 3.7V | 500mAh | UL/KC/IEC62133/CE/UN38.3/MSDS |
| 503048 | 3.7V | 750mAh | UL/KC/CE/ROHS/80℃ high temperature test/MSDS |
| 503450 | 3.7V | 1000mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 504065 | 3.7V | 1500mAh | UL/KC/CB/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 522728 | 3.7V | 460mAh | KC |
| 551245 | 3.7V | 250mAh | UL/KC/IEC62133/EN62133/PSE/FCC/ROHS |
| 553443 | 3.7V | 900mAh | KC/PSE/UN38.3/MSDS |
| 555056 | 3.7V | 2100mAh | KC |
| 601430 | 3.7V | 210mAh | KC/CE/ROHS |
| 601750 | 3.7V | 500mAh | KC |
| 602030 | 3.7V | 300mAh | UL/KC/IEC62133/CE/ROHS/UN38.3/MSDS |
| 602035 | 3.7V | 400mAh | KC/CE |
| 602040 | 3.7V | 450mAh | UL/KC/CE/ROHS |
| 602045 | 3.7V | 500mAh | KC/CE/FCC |
| 602540 | 3.7V | 600mAh | KC/FCC/IEC62133/UN38.3/MSDS |
| 603030 | 3.7V | 500mAh | KC/CE/EN62133/ROHS/UN38.3/MSDS |
| 603258-4S | 14.8V | 1200mAh | KC/CB/IEC62133 |
| 603450 | 3.7V | 1100mAh | UL/KC/CE/IEC62133/UN38.3/MSDS |
| 603450 | 3.7V | 1200mAh | UL/CE/KC |
| 651248 | 3.7V | 330mAh | KC/EN62133 |
| 653040 | 3.7V | 800mAh | KC/MSDS |
| 702030 | 3.7V | 380mAh | KC/CE |
| 702035 | 3.7V | 380mAh | KC |
| 702040 | 3.7V | 500mAh | KC/CE |
| 702040 | 3.7V | 600mAh | KC/MSDS |
| 702050 | 3.7V | 750mAh | KC/CE |
| 702525 | 3.7V | 400mAh | KC |
| 702535 | 3.7V | 600mAh | KC |
| 703045 | 3.7V | 900mAh | KC/UN38.3/MSDS |
| 751818 | 3.7V | 220mAh | UL/KC/EN62133/ROHS/UN38.3/MSDS |
| 801350 | 3.7V | 500mAh | KC/UN38.3/MSDS |
| 801630 | 3.7V | 300mAh | KC/CE |
| 802025 | 3.7V | 400mAh | KC/UN38.3/MSDS |
| 802540 | 3.7V | 800mAh | KC/FCC/CE/ROHS |
| 803040 | 3.7V | 1000mAh | UL/KC/CE/ROHS/UN38.3/MSDS |
| 803048 | 3.7V | 1200mAh | KC/CE |
| 804459 | 3.7V | 2400mAh | KC/CB/UN38.3/MSDS |
| 8233125 | 3.7V | 5500mAh | KC/UN38.3/MSDS |
| 901332 | 3.7V | 300mAh | KC/CE |
| 902030 | 3.7V | 480mAh | KC/MSDS |
| 902030 | 3.7V | 500mAh | KC/CE/ROHS/UN38.3/MSDS |
| 902040 | 3.7V | 700mAh | KC/CE |
| 902630 | 3.7V | 700mAh | KC |
| 972829 | 3.7V | 850mAh | KC |
| 102050 | 3.7V | 1000mAh | UL/KC/IEC62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103035 | 3.7V | 1100mAh | KC/CE |
| 103040 | 3.7V | 1200mAh | CB/KC/IEC62133/EN62133/CE/FCC/ROHS/UN38.3/MSDS |
| 103450 | 3.7V | 1800mAh | UL/KC |
| 105050 | 3.7V | 3000mAh | CB/KC/IEC62133/CE |

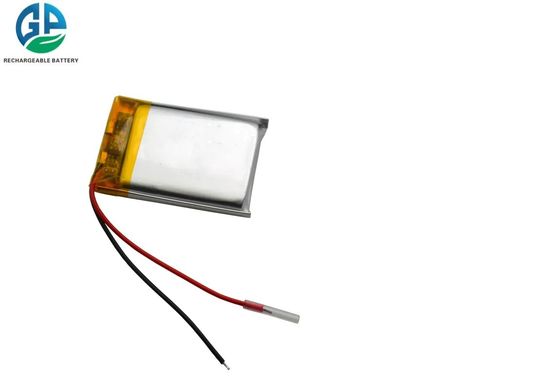

Lithium Polymer battery pack 3.7V 180mAh 801520 li-polymer Rechargeable li-pol battery
Standard packaging for 3.7V 7.4V lithium ion polymer battery pack
