• ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair
  • ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair
  • ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair
  • ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair
ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair

Product Details:

Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: ICR18650-3S12P

Payment & Shipping Terms:

Minimum Order Quantity: 200pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 3'000Pieces daily
Get Best Price Contact Now

Detail Information

Battery Type: Lithium Ion Battery Pack Model: ICR18650 3S12P
Nominal Voltage: 11.1V Nominal Capacity: 30Ah
Cycle Life: 500times Discharging Rate: 1C
Anode Material: Lithium Cobaltate Application: Solar Light, E-bike, Power Tool
Lead Time: 15days Battery Warranty: 1year
High Light:

ICR18650 3S12P Rechargeable 12V

,

Rechargeable 12V ICR18650 3S12P

,

ICR18650 3S12P 30ah battery

Product Description

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair

Rechargeable 12V Battery Pack 12V 30ah Power Tools Electric Wheelchairs Battery

Model 11.1V lithium ion battery
Product Type Lithium ion batteries
Nominal voltage 11.1V
Capacity 30Ah
Input 12.6V
Dimension Custom
Output 12.6-10.8V
CMax continuous discharge current 1C(Adjustable)
Battery cells A grade batetry cells
PCM 12V A grade PCM,over-charge/discharge protection, over-heat protection,short circuit protection
LED Indicator  Customize
ON/OFF Switch  Customize
Connectors 5.5*2.1mm DC jack+5.5*2.1mm DC plug(can be customize)
Recharge cycle More than 500 times
Battery Charger 12.6V US/EU/UK plug
Charging full time Around 5 hours
Operating temperature -20 °C to 60 °C
Charge temperature -0 °C to 45 °C
Storage temperature -20 °C to 45 °C
Operating humidity 5% to 90%,non-condensing

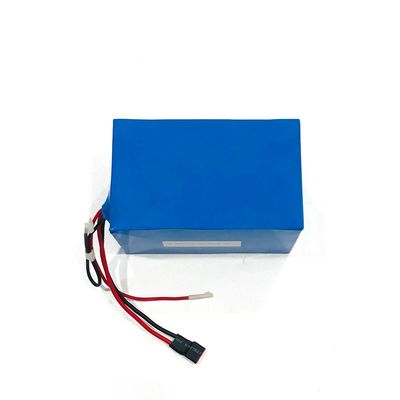

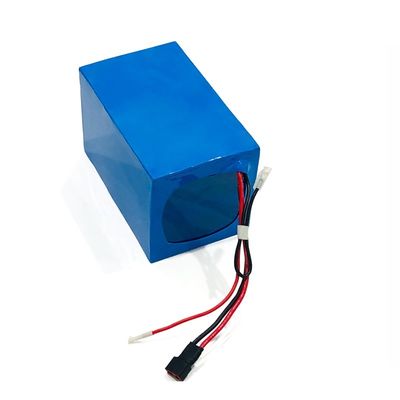

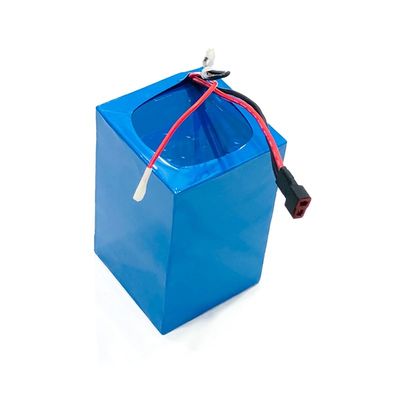

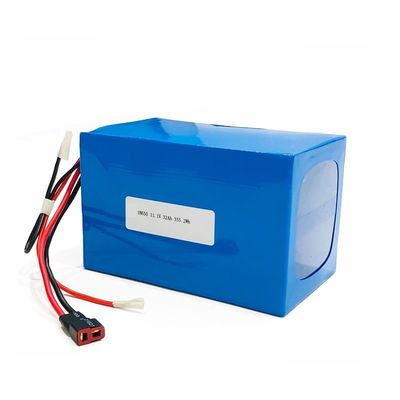

Detailed images for 11.1V 30Ah lithium battery pack ICR18650 li on rechargeable batteries



ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 0ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 1ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 2



ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 3

FAQ:



Q: Can I use Lithium batteries mixing with other battery types?

A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.



Q: What will happen if the batteries with different capacity are packed together?

A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.



Q: What are the possible reasons for zero voltage or low voltage of the battery pack?

A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.



Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

A: The battery is zero voltage or there is battery with zero voltage in the battery pack.

There is wrong connection inside the battery pack.

There is abnormally of electronic components and/or PCB inside the battery pack.

There is failure in charger.

Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.



Customized lithium rechargeable battery packs



ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 4



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 5



Quality Control



ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 6



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 7



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

ICR18650 3S12P Rechargeable 12V Battery Pack 30ah For Electric Wheelchair 8
