• High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack
  • High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack
  • High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack
High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack

Product Details:

Place of Origin: China
Certification: UN38.3, MSDS, IEC62133, RoHS
Model Number: ICR18650-10S4P

Payment & Shipping Terms:

Minimum Order Quantity: 100pieces
Packaging Details: Bulk packing
Delivery Time: within 15days
Payment Terms: T/T
Supply Ability: 1'000Pieces daily
Get Best Price Contact Now

Detail Information

Battery Type: Lithium Battery Pack Model: ICR18650 10S4P
Nominal Voltage: 36V Nominal Capacity: 10Ah
End Of Charging: 42V Cut-off Voltage: 30V
Cycle Life: 500times Discharging Rate: 3C
Application: Electronic Scooter, E-bike Lead Time: 15days
High Light:

10S4P ICR18650 LiNiCoMnO2 battery

,

10S4P ICR18650 LiNiCoMnO2 36v 10ah

,

High Discharge 10S4P ICR18650

Product Description

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack

High Discharge 10S4P ICR18650 36v 10ah Lithium Ion Battery Pack



Material
Lithium Ion Battery (LiNiCoMnO2)
Nominal Voltage
36V
Nominal Capacity
10Ah (or cusmized 12Ah/ 15Ah/ 20Ah/ 26Ah/ 30Ah/ 40Ah/ 50Ah/ 60Ah/ 80Ah)
Cell Assembly
18650 cell(or Samsun cell/ LG cell/ Panasonic cell/ Sanyo cell)
Capacity can be customized
Built-in BMS
(13S 30A BMS)
Over-charge & discharge protection.
Temperature control function.
Short circuit protection.
Balance the cells and ensures long cell life.
Charge
Charge Model
CC / CV
Charge Current
2A / 5A Charger
BMS Charge Cut-off Voltage
42V
Cell Overcharge Protection Voltage
4.2V / Cell
Discharge
Max Continuous Discharge Current
30A
Peak Discharge Current
60A
BMS Discharge Cut-off Voltage
27.5 +/-1V
Cell Over-discharge Protection Voltage
2.75V / Cell
Working Temperature
Charge Temperature Range
0~45°C
Discharge Temperature Range
-20~60°C
Cycle Life
500~800 cycles
Our certifications
UN38.3, IEC62133, ROHS, MSDS
Dimension
Customized as
Weight
about 2.2 Kg
Application
E Bike, Scooter, Motorcycle, AGV, Golf craft, EV, Inverter, Robot
Warranty
12 Months
Part Included

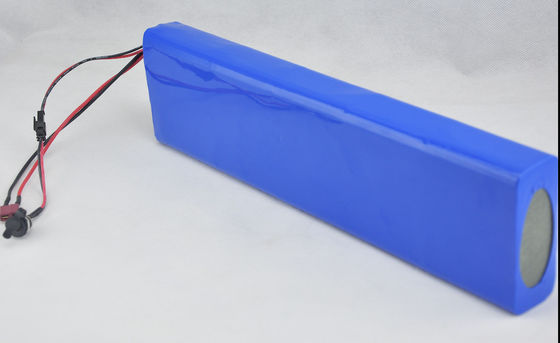

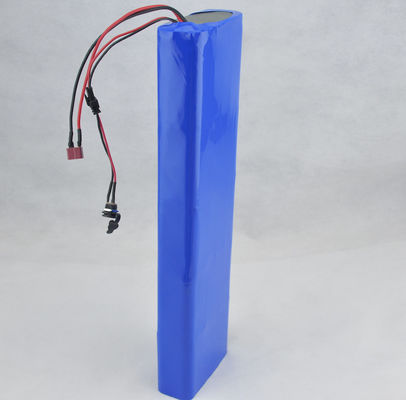

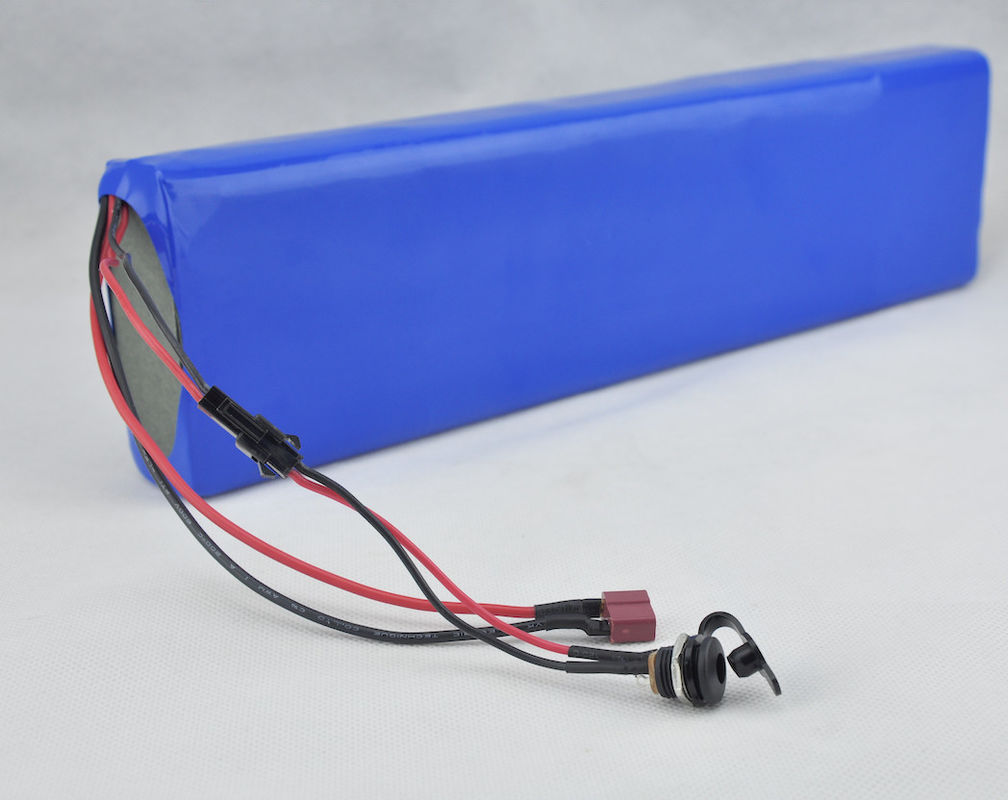

Detailed images: 18650 Lithium ion Battery pack 36V 10Ah Li Ion Rechargeable Battery Pack

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 0High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 1High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 2



Customized 18650 lithium battery packs  7.4V, 11.1V, 14.8V



High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 3



Other lithium ion cylindrical battery cell on sale:



Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45

Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 4



Quality Control



High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 5



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 6



Factory Tour:



Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.



We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,



and customized battery pack since 2001.

High Discharge 10S4P ICR18650 LiNiCoMnO2 36v 10ah Lithium Ion Battery Pack 7
